Name: Air Suspension Compressor And Lines ('AMK' Compressor, Compressor Assy) ((V) FROMBA356347, (V) TOCA367232)
Rating: 4.1 (1 reviews)

View All

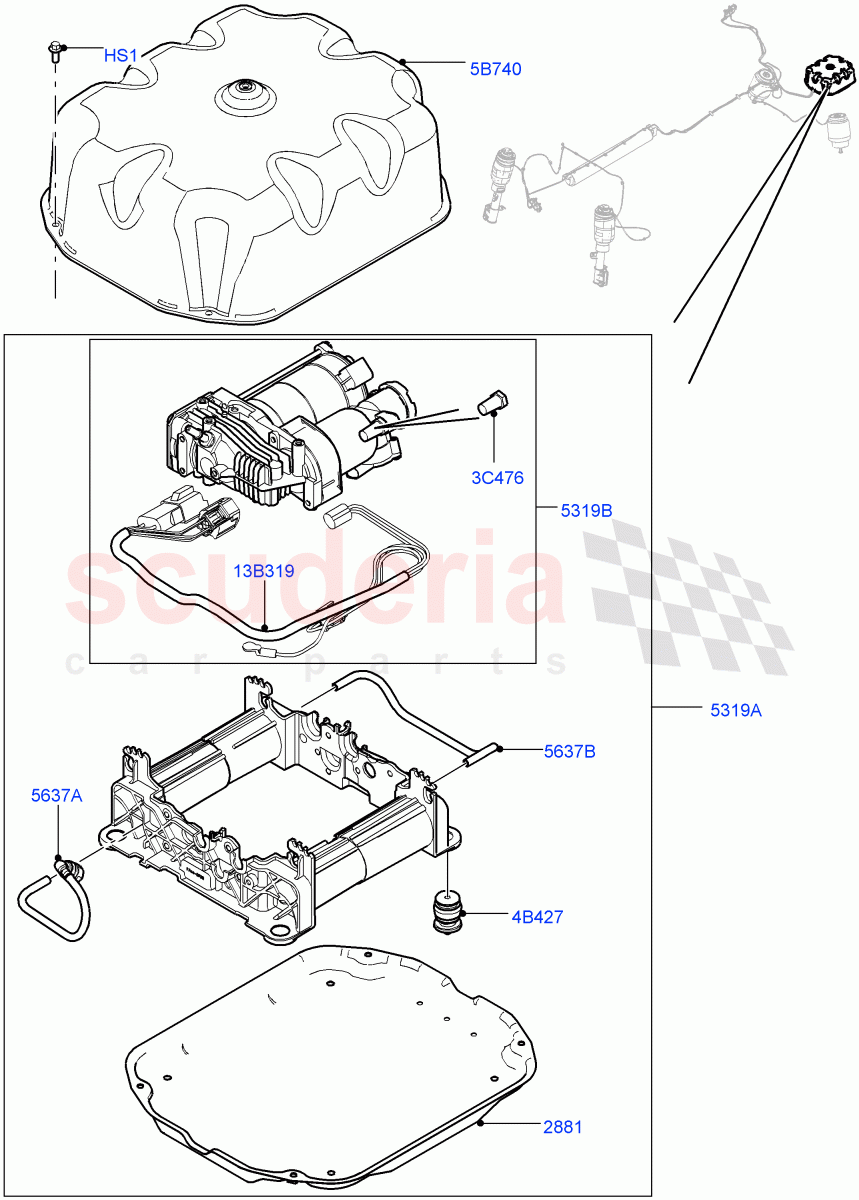

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106167	Screw	$0.17	To Order

Photo	Part No	Description	Price (each)	Stock
	RQU500731	PLATE - BASE	$115.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041777	KIT - COMPRESSOR	$1,170.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038112	MOUNTING - RUBBER	$170.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033311	COMPRESSOR - SUSPENSION LEVELLING	$1,403.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038147	COMPRESSOR - SUSPENSION LEVELLING	$1,585.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038110	TUBE - AIR COMPRESSOR	$37.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038109	TUBE - AIR COMPRESSOR	$45.66	To Order

Photo	Part No	Description	Price (each)	Stock
	RQU500302	COVER - AIR SUSPENSION COMPRESSOR	$1,187.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038113	WIRE - AIR COMPRESSOR	$89.35	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	FS106167	Screw	FS106167 Screw M6 X 16MM / From: BA356347	$0.17	4
3C476	LR041777	KIT - COMPRESSOR	LR041777 KIT - COMPRESSOR Compressor Assy / From: BA356347	$1,170.60	1
4B427	LR038112	MOUNTING - RUBBER	LR038112 MOUNTING - RUBBER From: BA356347	$170.91	4
5B740	RQU500302	COVER - AIR SUSPENSION COMPRESSOR	RQU500302 COVER - AIR SUSPENSION COMPRESSOR Upper / From: BA356347	$1,187.85	1
13B319	LR038113	WIRE - AIR COMPRESSOR	LR038113 WIRE - AIR COMPRESSOR Compressor Assy / From: BA356347	$89.35	1
2881	RQU500731	PLATE - BASE	RQU500731 PLATE - BASE From: BA356347	$115.50	1
5319A	LR033311	COMPRESSOR - SUSPENSION LEVELLING	LR033311 COMPRESSOR - SUSPENSION LEVELLING Includes Mounting Bracket, With Pipes, With Wiring Harness / From: BA356347	$1,403.70	1
5319B	LR038147	COMPRESSOR - SUSPENSION LEVELLING	LR038147 COMPRESSOR - SUSPENSION LEVELLING Less Bracket, Less Pipes, With Wiring Harness / From: BA356347	$1,585.55	1
5637A	LR038110	TUBE - AIR COMPRESSOR	LR038110 TUBE - AIR COMPRESSOR Front / From: BA356347	$37.97	1
5637B	LR038109	TUBE - AIR COMPRESSOR	LR038109 TUBE - AIR COMPRESSOR Rear / From: BA356347	$45.66	1

Air Suspension Compressor And Lines ('Amk' Compressor, Compressor Assy) ((V) Fromba356347, (V)...

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]
