Name: Heat Shields - Exhaust System (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)
Rating: 4.6 (1 reviews)

View All

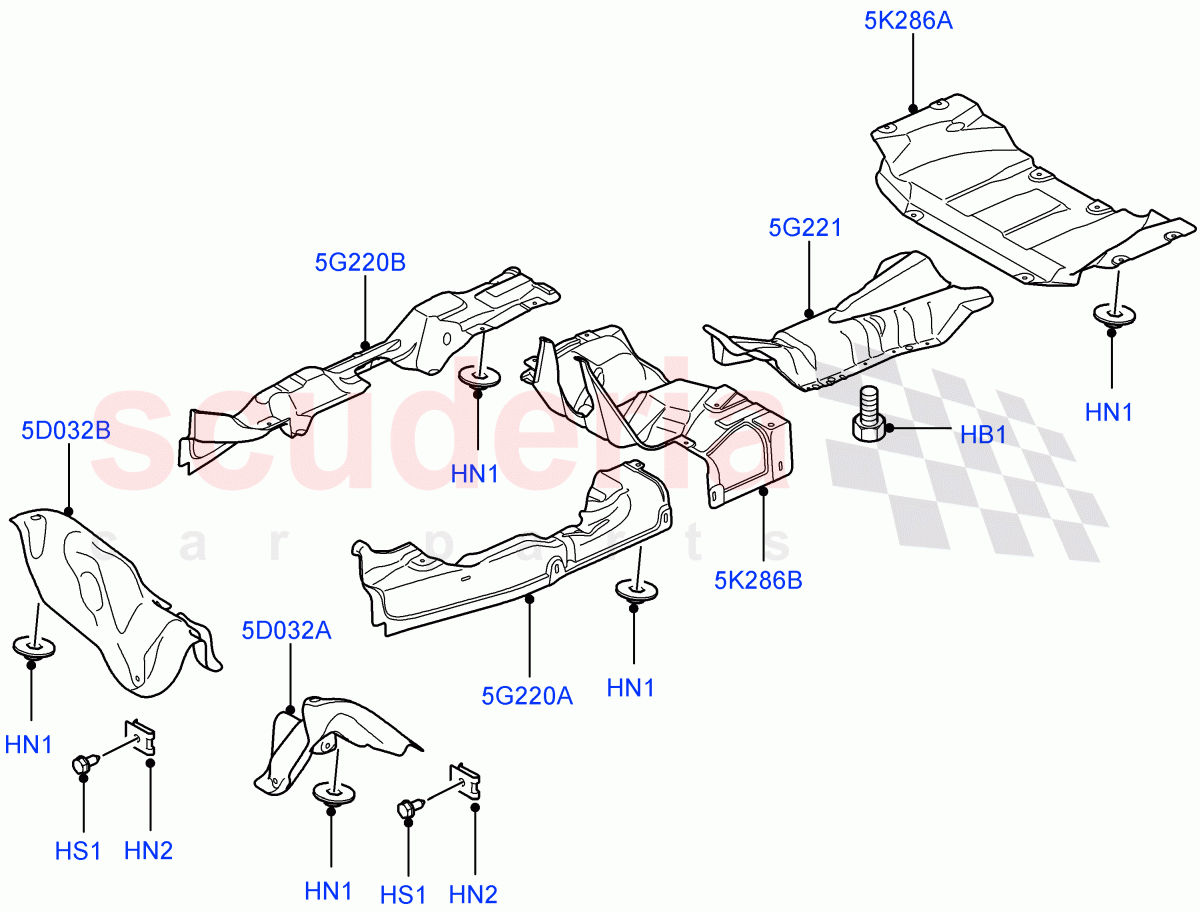

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DYP500080	BOLT	$2.47	To Order

Photo	Part No	Description	Price (each)	Stock
	WYH500050	NUT - LOCKING	$2.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	KYH000130	SPEEDNUT	$3.00	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP000411	SCREW - SELF-TAPPING	$1.13	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500610	SHIELD	$151.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012225	SHIELD	$123.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010160	HEAT SHIELD	$150.19	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500640	HEAT SHIELD	$105.73	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500780	INSULATOR - TUNNEL	$217.57	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	DYP500080	BOLT	DYP500080 BOLT M5 x 20MM / From: AA000001	$2.47	8
HN1	WYH500050	NUT - LOCKING IN STOCK	WYH500050 NUT - LOCKING M5 / From: AA000001 IN STOCK	$2.67	16
HN2	KYH000130	SPEEDNUT	KYH000130 SPEEDNUT Fixing / From: AA000001	$3.00	4
HS1	KYP000411	SCREW - SELF-TAPPING	KYP000411 SCREW - SELF-TAPPING 4.8 X 13MM, Self Tapping / From: AA000001	$1.13	4
5D032A	LR012225	SHIELD	LR012225 SHIELD LH, Heatshield Bush Front Stabilizer Bar / From: AA000001	$123.29	1
5D032B	KRO000143	SHIELD	KRO000143 SHIELD RH, Heatshield Bush Front Stabilizer Bar / From: AA000001 / To: AA331905	$97.25	1
5D032B	LR025231	SHIELD	LR025231 SHIELD RH, Heatshield Bush Front Stabilizer Bar / From: AA331906	$104.42	1
5G220A	LR009725	HEAT SHIELD	LR009725 HEAT SHIELD LH / From: AA000001 / To: AA312717	$168.23	1
5G220A	LR020108	HEAT SHIELD	LR020108 HEAT SHIELD LH / From: AA312718	$86.39	1
5G220B	LR010160	HEAT SHIELD	LR010160 HEAT SHIELD RH / From: AA000001	$150.19	1
5G221	WEB500610	SHIELD	WEB500610 SHIELD Center Rear / From: AA000001	$151.46	1
5K286A	WEB500640	HEAT SHIELD	WEB500640 HEAT SHIELD Rear / From: AA000001	$105.73	1
5K286B	WEB500780	INSULATOR - TUNNEL	WEB500780 INSULATOR - TUNNEL Centre, Middle / From: AA000001	$217.57	1

Heat Shields - Exhaust System (5.0L Ohc Sgdi Na V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]
