Fuel Injectors And Pipes (5.0L Ohc Sgdi Na V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] - Fuel Injectors And Pipes (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN105042 NUT - HEX. - FLANGED $0.52 IN STOCK
Photo Part No Description Price (each) Stock
LR011274 SCREW $2.59 To Order
Photo Part No Description Price (each) Stock
LR010904 SCREW $1.24 To Order
Photo Part No Description Price (each) Stock
LR030807 SCREW $1.40 IN STOCK
LR030807 SCREW $1.40 IN STOCK
Photo Part No Description Price (each) Stock
LR012001 PIPE - FUEL PUMP FEED $82.94 To Order
LR116433 PIPE - FUEL $89.79 To Order
Photo Part No Description Price (each) Stock
LR010767 RETAINER - INJECTION VALVE $6.08 To Order
Photo Part No Description Price (each) Stock
LR044452 WIRE - ADAPTER $47.47 To Order
Photo Part No Description Price (each) Stock
LR010832 PIPE - FUEL $112.95 To Order
LR030208 PIPE - FUEL $119.75 To Order
LR038165 Pipe - Fuel Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR105439 KIT - FUEL INJECTION $396.83 To Order
LR079542 INJECTOR - FUEL $327.90 To Order
Photo Part No Description Price (each) Stock
LR011223 TUBE - FUEL CROSSOVER $71.50 To Order
Photo Part No Description Price (each) Stock
LR105439 KIT - FUEL INJECTION $396.83 To Order
LR037088 KIT - FUEL INJECTION $344.41 To Order
LR069897 KIT - FUEL INJECTION $1,193.84 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR020028 KIT - "O" RING $20.46 To Order
LR037089 KIT - INJECTOR REFIT $28.48 IN STOCK
Photo Part No Description Price (each) Stock
LR010807 MANIFOLD - FUEL SUPPLY $742.37 To Order
LR024838 MANIFOLD - FUEL SUPPLY $977.25 To Order
LR044706 MANIFOLD - FUEL SUPPLY $481.39 To Order
Photo Part No Description Price (each) Stock
LR010810 MANIFOLD - FUEL SUPPLY $742.37 To Order
LR024837 MANIFOLD - FUEL SUPPLY $996.79 To Order
LR035128 MANIFOLD - FUEL SUPPLY $381.46 To Order
Photo Part No Description Price (each) Stock
LR012280 SENSOR - FUEL INJECTOR PRESSURE $212.05 To Order
Photo Part No Description Price (each) Stock
LR044707 SENSOR - FUEL INJECTOR PRESSURE $157.20 To Order
View All

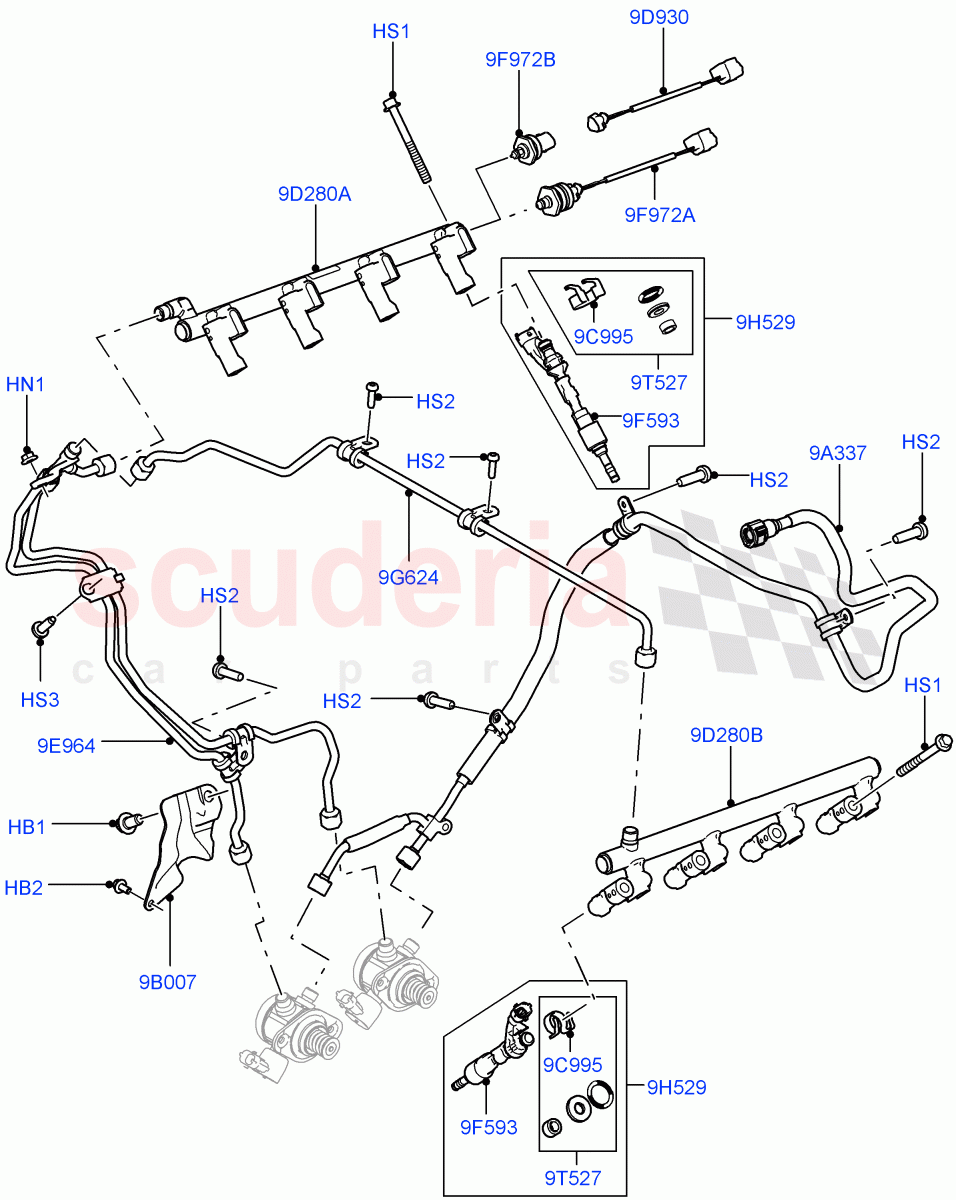

Fuel Injectors And Pipes (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN105042
NUT - HEX. - FLANGED
M5 / From: AA000001
IN STOCK 		$0.52 1
HS1 LR011274
SCREW
Fuel Rail / From: AA000001 		$2.59 8
HS2 LR010904
SCREW
M6 X 20MM / From: AA000001 		$1.24 7
HS3 LR030807
SCREW
M8 X 20MM(TORX) / From: AA000001 / To: CA374367
IN STOCK 		$1.40 1
HS3 LR030807
SCREW
M8 X 25MM, Torx / From: CA374368
IN STOCK 		$1.40 1
9A337 LR012001
PIPE - FUEL PUMP FEED
Pump Feed / From: AA000001 / To: CA393236 		$82.94 1
9A337 LR116433
PIPE - FUEL
Pump Feed / From: CA393237 		$89.79 1
9C995 LR010767
RETAINER - INJECTION VALVE
From: AA000001 		$6.08 8
9D280A LR010807
MANIFOLD - FUEL SUPPLY
RH / From: AA000001 / To: AA322563 		$742.37 1
9D280A LR024838
MANIFOLD - FUEL SUPPLY
RH / From: AA322564 / To: CA393014 		$977.25 1
9D280A LR044706
MANIFOLD - FUEL SUPPLY
RH / From: CA393015 		$481.39 1
9D280B LR010810
MANIFOLD - FUEL SUPPLY
LH / From: AA000001 / To: AA322563 		$742.37 1
9D280B LR024837
MANIFOLD - FUEL SUPPLY
LH / From: AA322564 / To: CA393014 		$996.79 1
9D280B LR035128
MANIFOLD - FUEL SUPPLY
LH / From: CA393015 		$381.46 1
9D930 LR044452
WIRE - ADAPTER
Wire Adapter - To Connect New Trapezoidal Connector Of Fuel Rail Pressure Sensor With Old Engine Harness / From: AA000001 / To: CA393014 		$47.47 1
9E964 LR010832
PIPE - FUEL
Fuel Lines To Fuel Rail, High Pressure / From: AA000001 / To: CA374367 		$112.95 1
9E964 LR030208
PIPE - FUEL
Fuel Lines To Fuel Rail, High Pressure / From: CA374368 / To: CA385043 		$119.75 1
9E964 LR038165
Pipe - Fuel
Fuel Lines To Fuel Rail, High Pressure / From: CA385044 / To: CA393257 		- 1 Enquire
9E964 LR042411
PIPE - FUEL
Fuel Lines To Fuel Rail, High Pressure / From: CA393258 		$233.75 1
9F593 LR105439
KIT - FUEL INJECTION
From: AA000001 / To: CA393621 		$396.83 8
9F593 LR079542
INJECTOR - FUEL
From: CA393622 		$327.90 8
9F972A LR012280
SENSOR - FUEL INJECTOR PRESSURE
From: AA000001 / To: CA393014 		$212.05 1
9F972B LR044707
SENSOR - FUEL INJECTOR PRESSURE
From: CA393015 		$157.20 1
9G624 LR011223
TUBE - FUEL CROSSOVER
High Pressure / From: AA000001 		$71.50 1
9H529 LR105439
KIT - FUEL INJECTION
Includes Injector And Retainer / From: AA000001 / To: CA384465 		$396.83 8
9H529 LR037088
KIT - FUEL INJECTION
Includes Injector And Retainer / From: CA384466 / To: CA376994 		$344.41 8
9H529 LR069897
KIT - FUEL INJECTION
Includes Injector And Retainer, Set Of 4 Pieces / From: CA376995 / To: CA393621 		$1,193.84 2
9H529 LR105439
KIT - FUEL INJECTION
Injector Assembly, Kit For 1 Cylinder / From: CA393622 		$396.83 8
9T527 LR020028
KIT - "O" RING
Includes Oring, Teflon Seal, Retainer / From: AA000001 / To: CA391767 		$20.46 8
9T527 LR037089
KIT - INJECTOR REFIT
Includes Oring, Teflon Seal, Retainer / From: CA391768
IN STOCK 		$28.48 8
