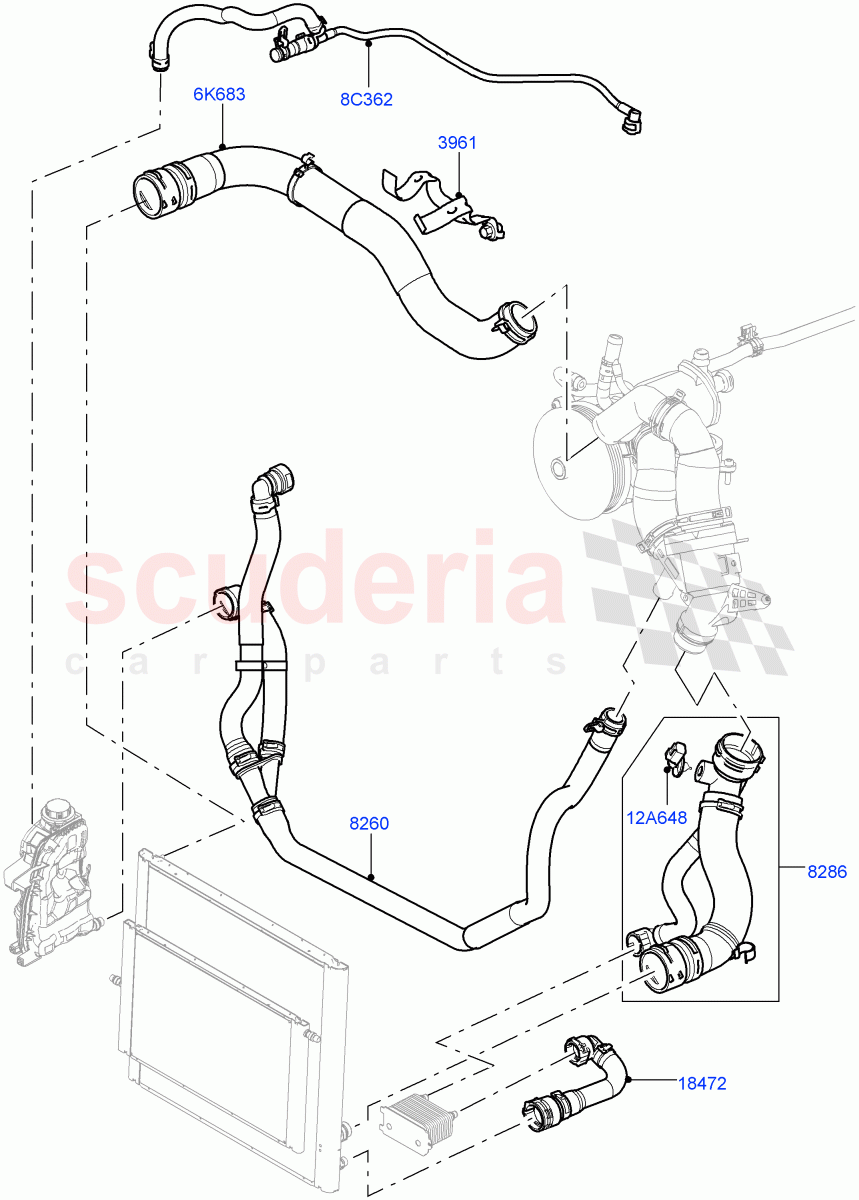

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR013535	SUPPORT - TOP RADIATOR HOSE	$18.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011480	HOSE	$116.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011482	HOSE - RADIATOR	$185.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010891	HOSE - HEATER WATER	$27.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011360	HOSE	$70.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011465	HOSE	$47.24	To Order

Photo	Part No	Description	Price (each)	Stock
	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	$59.73	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
6K683	LR011360	HOSE	LR011360 HOSE Engine To Radiator, Upper, With Clamps / From: AA000001	$70.59	1
8C362	LR011465	HOSE	LR011465 HOSE Cooling System Bleed / From: AA000001	$47.24	1
12A648	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	4346360 SENSOR - ENGINE COOLANT TEMPERATURE From: AA000001	$59.73	1
3961	LR013535	SUPPORT - TOP RADIATOR HOSE	LR013535 SUPPORT - TOP RADIATOR HOSE Includes Bolt, Top Radiator Hose / From: AA000001	$18.32	1
8260	LR011480	HOSE	LR011480 HOSE Bottom, Expansion Reservoir To Thermostat, From Heater Outlet To Thermostat / From: AA000001	$116.77	1
8286	LR011482	HOSE - RADIATOR	LR011482 HOSE - RADIATOR Bottom, Radiator To Thermostat, With Sensor / From: AA000001	$185.79	1
18472	LR010891	HOSE - HEATER WATER	LR010891 HOSE - HEATER WATER Radiator To Cooler / From: AA000001	$27.07	1
