Pulleys And Drive Belts (Secondary Drive) (5.0L Ohc Sgdi Na V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] - Pulleys And Drive Belts (Secondary Drive) (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT $2.29 IN STOCK
Photo Part No Description Price (each) Stock
LR005074 BOLT $1.16 To Order
Photo Part No Description Price (each) Stock
LR016837 BOLT $1.05 IN STOCK
Photo Part No Description Price (each) Stock
LR012000 PULLEY - CRANKSHAFT $371.93 To Order
Photo Part No Description Price (each) Stock
LR012624 PULLEY - FAN $117.89 To Order
Photo Part No Description Price (each) Stock
LR012663 BELT - ACCESSORY DRIVE $64.50 To Order
Photo Part No Description Price (each) Stock
LR012623 BRACKET - COUPLING SHAFT BEARING $303.02 To Order
LR025978 BRACKET - COUPLING SHAFT BEARING $248.03 To Order
LR035555 BRACKET WITH IDLER AND BEARING FAN $248.03 To Order
Photo Part No Description Price (each) Stock
LR011952 BOLT M18 X110 $23.60 IN STOCK
Photo Part No Description Price (each) Stock
LR010725 PULLEY - IDLER $58.74 To Order
View All

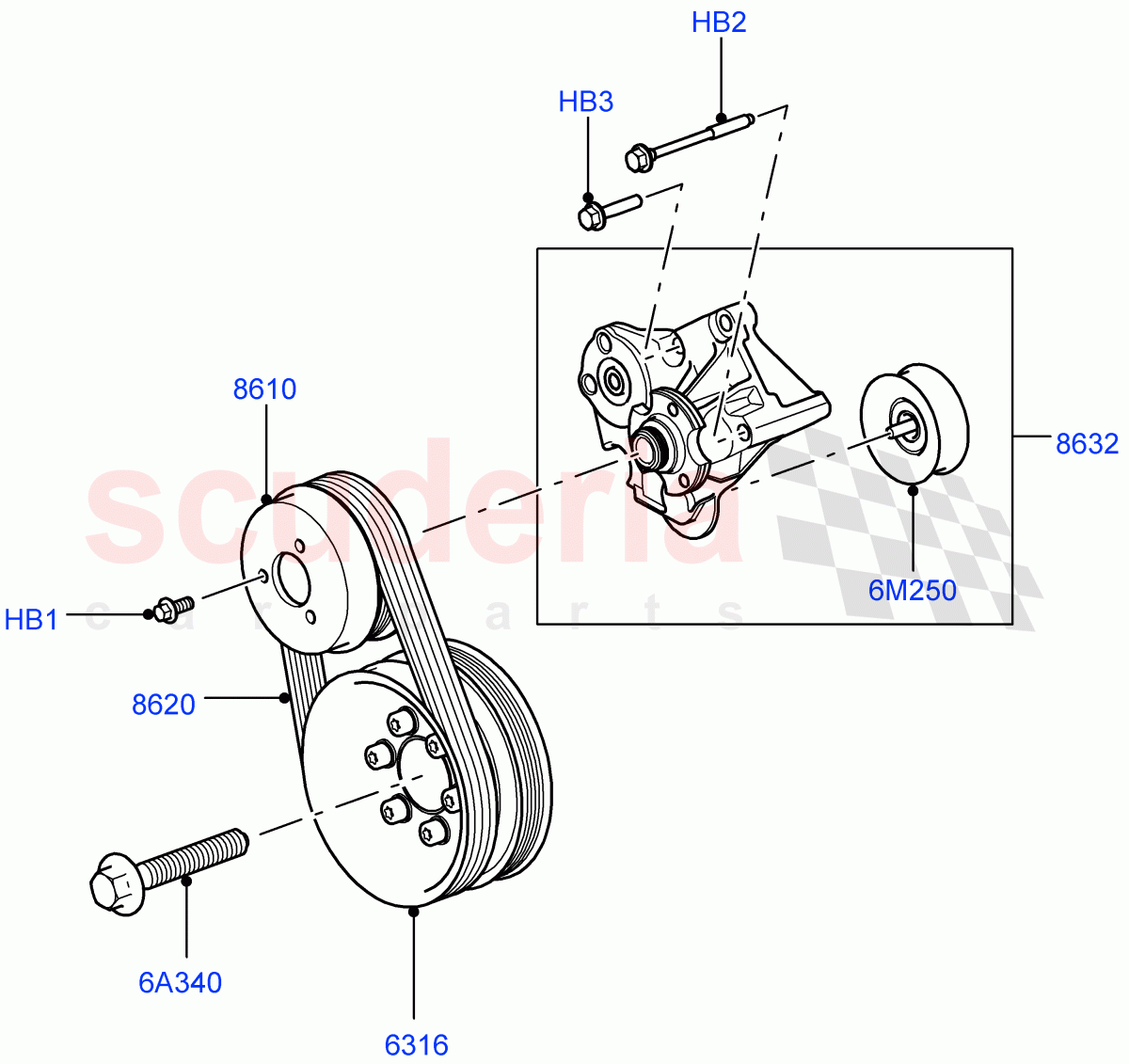

Pulleys And Drive Belts (Secondary Drive) (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108206
BOLT
Hexagonal Head, M8 X 20MM, Pulley / From: AA000001
IN STOCK 		$2.29 3
HB2 LR005074
BOLT
Bracket, Hexagonal Head, M8 X 96.5 / From: AA000001 		$1.16 1
HB3 LR016837
BOLT
Bracket, M8 x 40MM / From: AA000001
IN STOCK 		$1.05 3
6A340 LR011952
BOLT M18 X110
M16 X 118MM, Pulley - Crankshaft / From: AA000001
IN STOCK 		$23.60 1
6M250 LR010725
PULLEY - IDLER
Primary Drive / From: AA000001 		$58.74 1
6316 LR012000
PULLEY - CRANKSHAFT
From: AA000001 		$371.93 1
8610 LR012624
PULLEY - FAN
Fan / From: AA000001 		$117.89 1
8620 LR012663
BELT - ACCESSORY DRIVE
Secondary Drive / From: AA000001 		$64.50 1
8632 LR012623
BRACKET - COUPLING SHAFT BEARING
With Idler / From: AA000001 / To: BA337829 		$303.02 1
8632 LR025978
BRACKET - COUPLING SHAFT BEARING
With Idler / From: BA337830 / To: CA393569 		$248.03 1
8632 LR035555
BRACKET WITH IDLER AND BEARING FAN
With Idler / From: CA393570 		$248.03 1
