Name: Console - Floor (Internal Components, For Carrier Assy) ((V) FROMAA000001)
Rating: 4.2 (1 reviews)

Console - Floor (Internal Components, For Carrier Assy) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Console - Floor (Internal Components, For Carrier Assy) ((V) FROMAA000001)

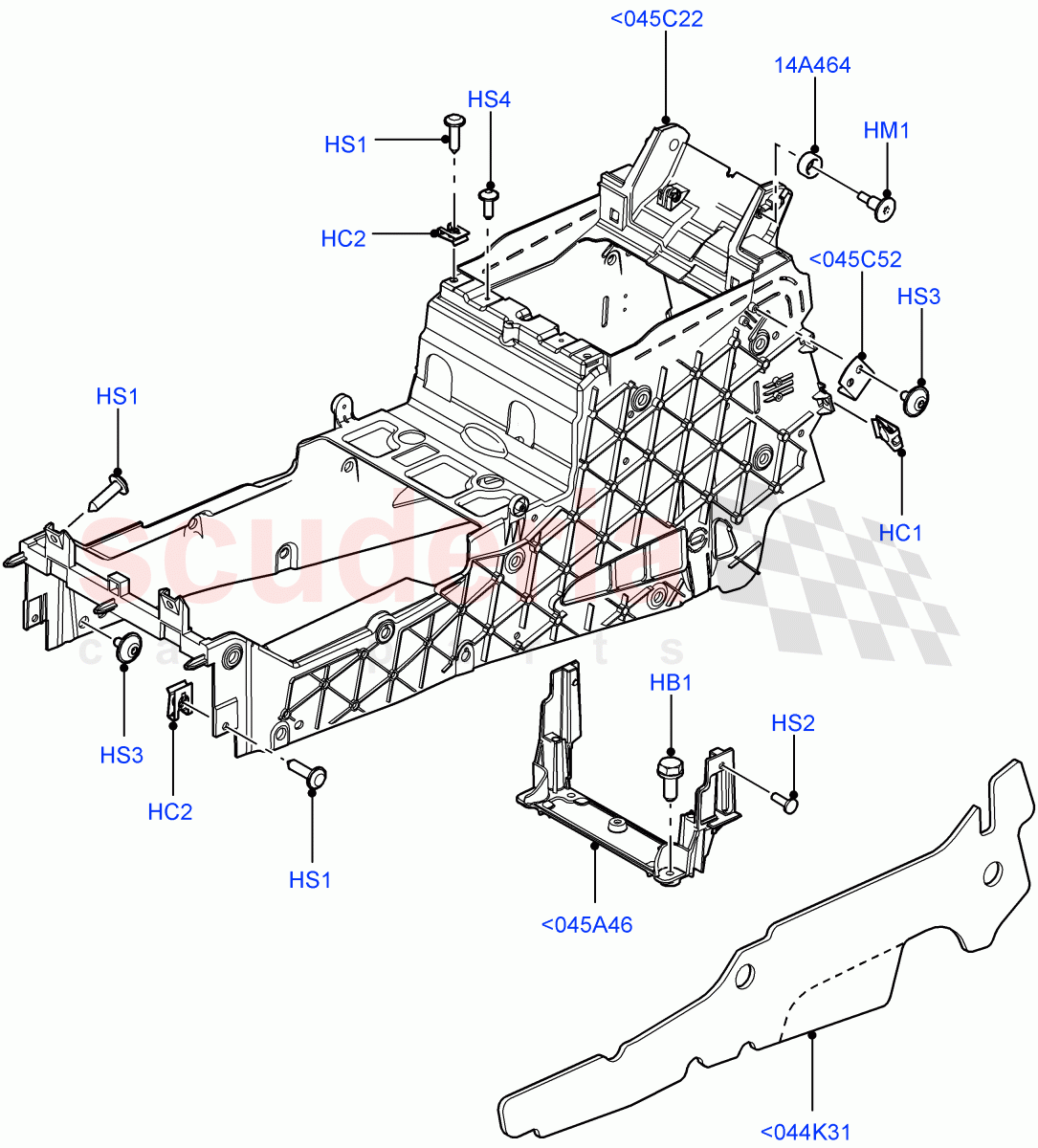

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500800	BOLT	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	IPN500220	CLIP - RETAINING	$2.39	To Order

Photo	Part No	Description	Price (each)	Stock
	FYC500010	CLIP	$4.35	To Order

Photo	Part No	Description	Price (each)	Stock
	FYT500030	PIN	$2.03	To Order

Photo	Part No	Description	Price (each)	Stock
	EYP101240	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500550	SCREW	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP000210	SCREW - SELF-TAPPING	$1.36	To Order
	FYP000210	SCREW - SELF-TAPPING	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500470	SCREW	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	FYF500010	SLEEVE - SHACKLE SPACER	$1.14	To Order

Photo	Part No	Description	Price (each)	Stock
	FWA500240	SOUND DEADENER	$15.65	To Order
	FWA500250	SOUND DEADENER	$15.65	To Order

Photo	Part No	Description	Price (each)	Stock
	FHC500290	BRACKET - CONSOLE	$18.84	To Order

Photo	Part No	Description	Price (each)	Stock
	FJZ500170	CONSOLE	$228.38	To Order
	LR026228	CONSOLE	$792.52	To Order

Photo	Part No	Description	Price (each)	Stock
	FHC500270	BRACKET - AIR DUCT SUPPORT	$3.70	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<044K31	FWA500240	SOUND DEADENER	FWA500240 SOUND DEADENER RH / From: AA000001	$15.65	1
<044K31	FWA500250	SOUND DEADENER	FWA500250 SOUND DEADENER LH / From: AA000001	$15.65	1
<045A46	FHC500290	BRACKET - CONSOLE	FHC500290 BRACKET - CONSOLE Mounting Bracket / From: AA000001	$18.84	1
<045C22	FJZ500170	CONSOLE	FJZ500170 CONSOLE From: AA000001 / To: BA334296	$228.38	1
<045C22	LR026228	CONSOLE	LR026228 CONSOLE From: BA334297	$792.52	1
<045C52	FHC500270	BRACKET - AIR DUCT SUPPORT	FHC500270 BRACKET - AIR DUCT SUPPORT Centre Air Cooling Duct, Support / From: AA000001	$3.70	2
HB1	RYG500800	BOLT	RYG500800 BOLT Hexagonal Head, M6 X 16MM, Mounting Bracket / From: AA000001	$0.52	4
HC1	IPN500220	CLIP - RETAINING	IPN500220 CLIP - RETAINING 4.2, Console Base, Rear, Retainer / From: AA000001	$2.39	8
HC2	FYC500010	CLIP	FYC500010 CLIP Console Base,	$4.35	4
HM1	FYT500030	PIN	FYT500030 PIN Damper, Lid, Pin / From: AA000001	$2.03	1
HS1	EYP101240	SCREW	EYP101240 SCREW 4.8 x 20MM, Console Base, Torx / From: AA000001	$0.65	6
HS2	FYP500550	SCREW	FYP500550 SCREW Hexagonal Head, M6 X 20MM, Mounting Bracket / From: AA000001	$1.05	2
HS3	FYP000210	SCREW - SELF-TAPPING	FYP000210 SCREW - SELF-TAPPING 4.0 x 8.5MM, Console Base, Self Tapping, Torx / From: AA000001	$1.36	16
HS3	FYP000210	SCREW - SELF-TAPPING	FYP000210 SCREW - SELF-TAPPING 4.0 x 8.5MM, Bracket, Centre Air Cooling Duct, Self Tapping, Torx / From: AA000001	$1.36	2
HS4	FYP500470	SCREW	FYP500470 SCREW 4 x 14MM, Console Base, Top / From: AA000001	$0.52	2
14A464	FYF500010	SLEEVE - SHACKLE SPACER	FYF500010 SLEEVE - SHACKLE SPACER Hinge,	$1.14	1
