Front Brake Discs And Calipers (5.0L Ohc Sgdi Na V8 Petrol - Aj133, 3.6L V8 32V Dohc Efi Diesel...

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Front Brake Discs And Calipers (5.0L OHC SGDI NA V8 Petrol - AJ133, 3.6L V8 32V DOHC EFi Diesel...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
SYG500050 BOLT $8.28 IN STOCK
Photo Part No Description Price (each) Stock
SMV500010 SCREW $2.74 IN STOCK
Photo Part No Description Price (each) Stock
SDG100000L SCREW $1.65 To Order
Photo Part No Description Price (each) Stock
LR018509 SCREW $1.25 IN STOCK
Photo Part No Description Price (each) Stock
SDB500193 DISC - BRAKE - VENTED $154.00 To Order
LR031843 DISC - BRAKE - VENTED $150.49 To Order
Photo Part No Description Price (each) Stock
LR015578 BRAKE PADS - WITH SPRINGS $220.62 To Order
LR134700 BRAKE PADS - WITH SPRINGS $228.09 To Order
Photo Part No Description Price (each) Stock
LR015523 SCREW - BLEED $6.77 IN STOCK
Photo Part No Description Price (each) Stock
LR026219 KIT - BRAKE PAD ATTACHMENT $69.53 To Order
Photo Part No Description Price (each) Stock
LR015525 COVER - DUST $24.44 To Order
Photo Part No Description Price (each) Stock
LR020005 SPACER $74.45 To Order
LR020004 SPACER $74.45 To Order
LR021519 SPACER $74.45 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR020053 GREASE - CHASSIS LUBRICATION $3.65 IN STOCK
Photo Part No Description Price (each) Stock
LR015570 CALIPER - BRAKE - LESS PADS $679.28 To Order
LR015569 CALIPER - BRAKE - LESS PADS $692.86 To Order
Photo Part No Description Price (each) Stock
LR015566 BRACKET $169.24 To Order
Photo Part No Description Price (each) Stock
LR017032 KIT - LOCATING PIN BOLTS $22.82 To Order
LR020489 KIT - LOCATING PIN BOLTS $23.26 IN STOCK
Photo Part No Description Price (each) Stock
LR011721 SHIELD - SPLASH $66.90 To Order
LR011722 SHIELD - SPLASH $66.90 To Order
Photo Part No Description Price (each) Stock
SEE500100 CAP - BLEED SCREW $1.90 IN STOCK
Photo Part No Description Price (each) Stock
LR015580 KIT - CALIPER BRAKE PAD MTG PARTS $24.79 IN STOCK
Photo Part No Description Price (each) Stock
SEM000012 WIRE - BRAKE PAD WEAR WARNING $41.84 To Order
View All

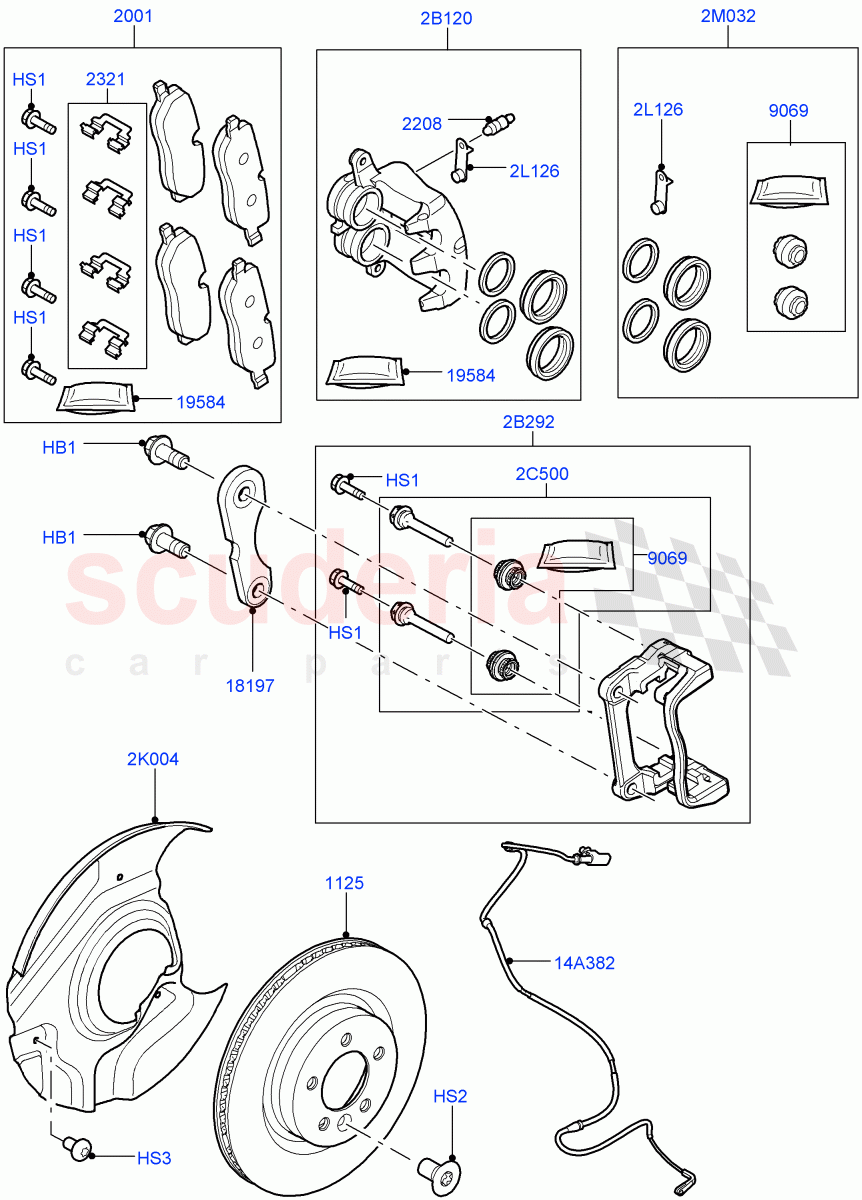

Front Brake Discs And Calipers (5.0L OHC SGDI NA V8 Petrol - AJ133, 3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 SYG500050
BOLT
M16 X 1.5 X 45, To Caliper / From: AA000001
IN STOCK 		$8.28 4
HS1 SMV500010
SCREW
Pin - Slide / From: AA000001
IN STOCK 		$2.74 4
HS2 SDG100000L
SCREW
Disc - Brake, M8 X 14 / From: AA000001 		$1.65 2
HS3 LR018509
SCREW
M6 X 10MM, Torx / From: AA000001
IN STOCK 		$1.25 6
2B120 LR015570
CALIPER - BRAKE - LESS PADS
LH / From: AA000001 		$679.28 1
2B120 LR015569
CALIPER - BRAKE - LESS PADS
RH / From: AA000001 		$692.86 1
2B292 LR015566
BRACKET
Bracket / From: AA000001 		$169.24 2
2C500 LR017032
KIT - LOCATING PIN BOLTS
Caliper Set, Pin And Boot / From: AA000001 		$22.82 2
2C500 LR020489
KIT - LOCATING PIN BOLTS
(+)"GCC" / Caliper Set, Pin And Boot / From: AA333946
IN STOCK 		$23.26 2
2K004 LR011721
SHIELD - SPLASH
RH / From: AA000001 		$66.90 1
2K004 LR011722
SHIELD - SPLASH
LH / From: AA000001 		$66.90 1
2L126 SEE500100
CAP - BLEED SCREW
From: AA000001
IN STOCK 		$1.90 2
2M032 LR015580
KIT - CALIPER BRAKE PAD MTG PARTS
Caliper Set, Seal / From: AA000001
IN STOCK 		$24.79 2
14A382 SEM000012
WIRE - BRAKE PAD WEAR WARNING
From: AA000001 		$41.84 1
1125 SDB500193
DISC - BRAKE - VENTED
From: AA000001 / To: BA356996 		$154.00 2
1125 LR031843
DISC - BRAKE - VENTED
From: BA356997 		$150.49 2
2001 LR015578
BRAKE PADS - WITH SPRINGS
Axle Set / From: AA000001 / To: BA347976 		$220.62 1
2001 LR134700
BRAKE PADS - WITH SPRINGS
Axle Set / From: BA347977 		$228.09 1
2208 LR015523
SCREW - BLEED
From: AA000001
IN STOCK 		$6.77 2
2321 LR026219
KIT - BRAKE PAD ATTACHMENT
Axle Set, Rubber Coated Abutment Shim / From: AA000001 		$69.53 1
9069 LR015525
COVER - DUST
Boot, Caliper Set / From: AA000001 		$24.44 2
18197 LR020005
SPACER
RH, Use In Pairs Only / From: AA312263 / To: AA999999 		$74.45 1
18197 LR020004
SPACER
LH, Use In Pairs Only / From: AA312263 / To: AA999999 		$74.45 1
18197 LR021519
SPACER
LH, Use In Pairs Only / From: BA000001 / To: BA354598 		$74.45 1
18197 LR021520
SPACER
RH, Use In Pairs Only / From: BA000001 / To: BA354598 		$74.45 1
18197 LR023937
SPACER
LH, Use In Pairs Only / From: BA354599 		$440.36 1
18197 LR023938
SPACER
RH, Use In Pairs Only / From: BA354599 		$95.62 1
19584 LR020053
GREASE - CHASSIS LUBRICATION
From: AA000001
IN STOCK 		$3.65 1
