Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Electrical Wiring - Engine And Dash (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR010904 SCREW $1.24 To Order
Photo Part No Description Price (each) Stock
FS110206 BOLT - HEX.HEAD $0.79 To Order
Photo Part No Description Price (each) Stock
FA106126 SCREW $0.47 IN STOCK
Photo Part No Description Price (each) Stock
LR141820 PLUG - BLANKING $5.42 To Order
Photo Part No Description Price (each) Stock
LR011500 HEAT SHIELD - CONNECTOR $113.65 To Order
Photo Part No Description Price (each) Stock
LR011980 HEAT SHIELD - CONNECTOR $10.62 To Order
Photo Part No Description Price (each) Stock
LR011950 WIRE - KNOCK SENSOR $237.73 To Order
Photo Part No Description Price (each) Stock
LR012074 WIRE $823.55 To Order
LR020227 WIRE $1,334.15 To Order
Photo Part No Description Price (each) Stock
LR012054 BRACKET - WIRING $4.74 To Order
Photo Part No Description Price (each) Stock
LR012055 BRACKET - CABLE MOUNTING $6.77 To Order
Photo Part No Description Price (each) Stock
LR016716 BRACKET - CABLE SUPPORT $31.33 To Order
View All

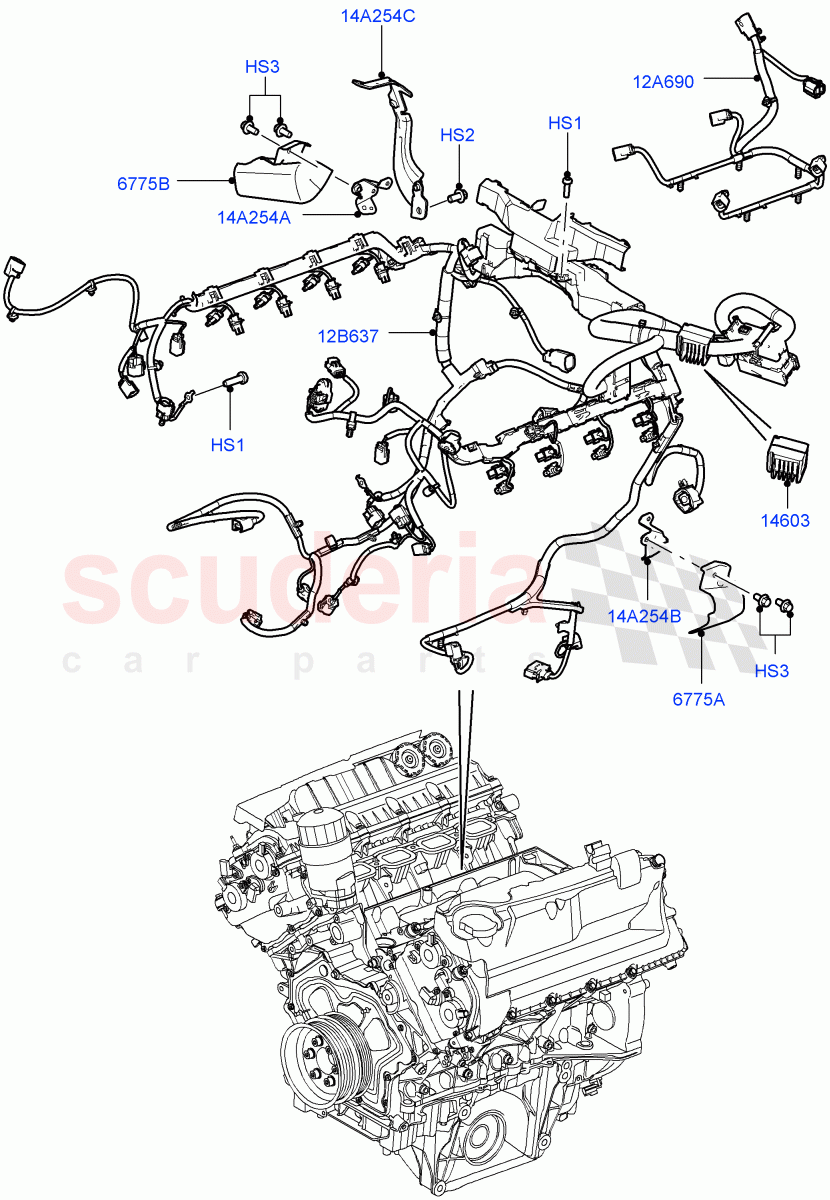

Electrical Wiring - Engine And Dash (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR010904
SCREW
M6 X 20MM / From: AA000001 		$1.24 1
HS2 FS110206
BOLT - HEX.HEAD
Bracket, Hexagonal Head, M10 X 20MM / From: AA000001 		$0.79 2
HS3 FA106126
SCREW
Heat Shield, Hexagonal Head, M6 x 12MM / From: AA000001
IN STOCK 		$0.47 2
12A690 LR011950
WIRE - KNOCK SENSOR
knock sensor / From: AA000001 		$237.73 1
12B637 LR012074
WIRE
Engine / From: AA000001 / To: AA313210 		$823.55 1
12B637 LR020227
WIRE
Engine / From: AA313211 		$1,334.15 1
14A254A LR012054
BRACKET - WIRING
RH, Connector / From: AA000001 		$4.74 1
14A254B LR012055
BRACKET - CABLE MOUNTING
LH, Connector / From: AA000001 		$6.77 1
14A254C LR016716
BRACKET - CABLE SUPPORT
RH, Wire Assy / From: AA000001 		$31.33 1
6775A LR011500
HEAT SHIELD - CONNECTOR
LH, Connector / From: AA000001 		$113.65 1
6775B LR011980
HEAT SHIELD - CONNECTOR
RH, Connector / From: AA000001 		$10.62 1
14603 LR141820
PLUG - BLANKING
From: AA000001 		$5.42 1
