Exterior Rear View Mirror ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Exterior Rear View Mirror ((V) FROMAA000001)

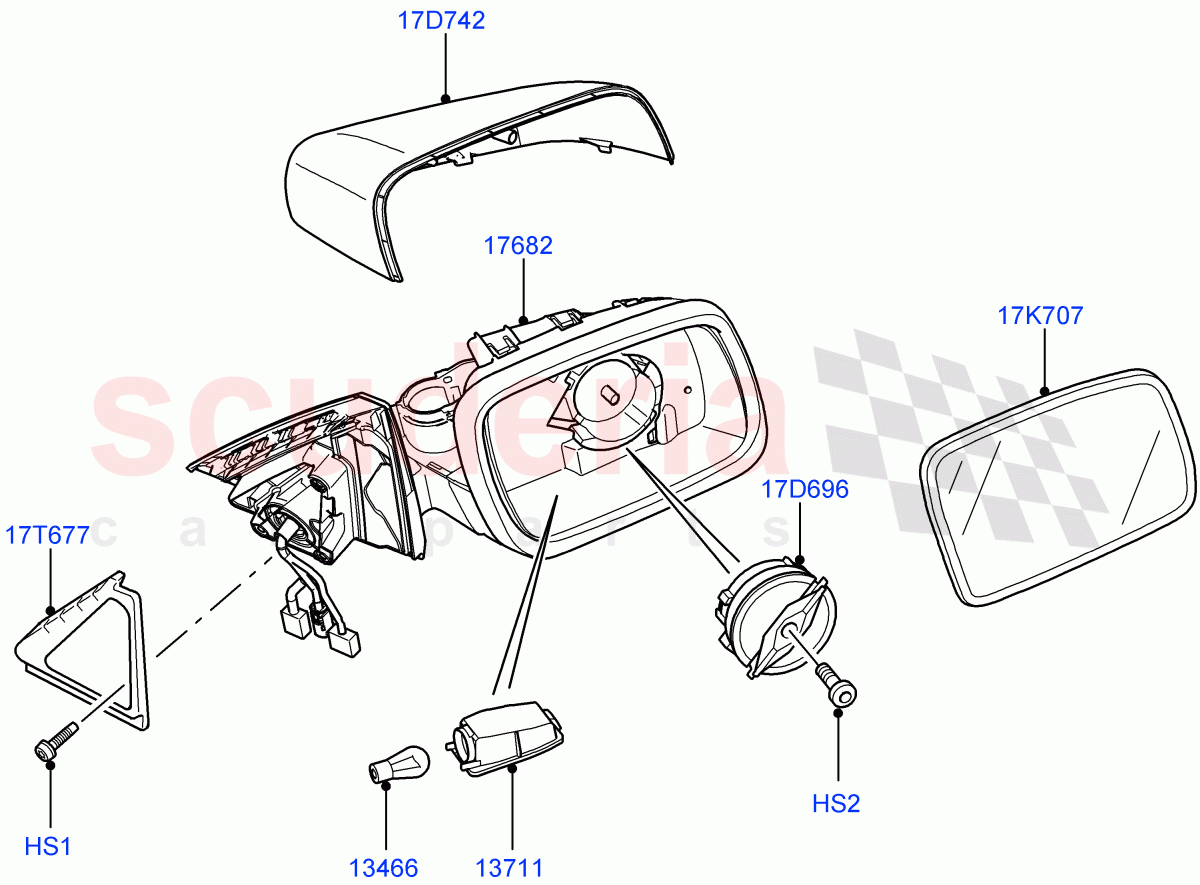

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR010415 SCREW $1.20 To Order
Photo Part No Description Price (each) Stock
LR011865 SCREW $1.28 IN STOCK
Photo Part No Description Price (each) Stock
CTY500011 BULB $1.55 IN STOCK
Photo Part No Description Price (each) Stock
CTZ500010 CARRIER - BULB $21.36 To Order
Photo Part No Description Price (each) Stock
LR011111 MIRROR - REAR VIEW - OUTER $501.66 To Order
LR011112 MIRROR - REAR VIEW - OUTER $501.66 To Order
LR011113 MIRROR - REAR VIEW - OUTER $501.66 To Order
...and 35 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
CRP500041 MOTOR - EXTERIOR REAR VIEW MIRROR $130.29 To Order
LR015051 MOTOR - EXTERIOR REAR VIEW MIRROR $135.04 To Order
Photo Part No Description Price (each) Stock
LR015056 COVER - MIRROR HOUSING $82.38 To Order
LR015057 COVER - MIRROR HOUSING $82.38 To Order
LR019961 COVER - MIRROR HOUSING $94.39 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR011058 GLASS - REAR VIEW OUTER MIRROR $103.79 To Order
LR011059 GLASS - REAR VIEW OUTER MIRROR $103.79 To Order
LR011060 GLASS - REAR VIEW OUTER MIRROR $103.79 To Order
...and 15 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
CFB000040 SEAL $58.81 To Order
CFB000050 SEAL $58.81 To Order
View All
Exterior Rear View Mirror ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR010415
SCREW
M6 x 15MM, Mirror To Door / From: AA000001 		$1.20 3
HS2 LR011865
SCREW
Actuator, M3 X 25MM / From: AA000001
IN STOCK 		$1.28 1
17D696 CRP500041
MOTOR - EXTERIOR REAR VIEW MIRROR
RH, 8 Pin Connector, With Memory / From: AA000001 		$130.29 1
17D696 LR015051
MOTOR - EXTERIOR REAR VIEW MIRROR
LH, 8 Pin Connector, With Memory / From: AA000001 		$135.04 1
17D742 LR015056
COVER - MIRROR HOUSING
RH, Primed / From: AA000001 / To: AA317928 		$82.38 1
17D742 LR015057
COVER - MIRROR HOUSING
LH, Primed / From: AA000001 / To: AA317928 		$82.38 1
17D742 LR019961
COVER - MIRROR HOUSING
RH, Primed / From: AA317929 		$94.39 1
17D742 LR019962
COVER - MIRROR HOUSING
LH, Primed / From: AA317929 		$94.39 1
17K707 LR011058
GLASS - REAR VIEW OUTER MIRROR
(-)"CDN/MEX/USA", Less Blind Spot Information System, Less Electrochromatic Mirror, Less Mirror Glass Script / RH, Convex / From: AA000001 		$103.79 1
17K707 LR011059
GLASS - REAR VIEW OUTER MIRROR
(-)"CDN/MEX/USA", Less Blind Spot Information System, Less Electrochromatic Mirror / LH, Convex / From: AA000001 		$103.79 1
17K707 LR011060
GLASS - REAR VIEW OUTER MIRROR
(+)"CDN/MEX/USA", Less Blind Spot Information System, Less Electrochromatic Mirror, NAS Script On Mirror / RH, Convex / From: AA000001 		$103.79 1
17K707 LR011061
GLASS - REAR VIEW OUTER MIRROR
(+)"CDN/MEX/USA", Less Blind Spot Information System, Less Electrochromatic Mirror / LH, Flat / From: AA000001 		$103.79 1
17K707 LR011047
GLASS - REAR VIEW OUTER MIRROR
(+)"GCC", Arabic Script On Mirror, Less Blind Spot Information System, Less Electrochromatic Mirror / RH, Convex / From: AA000001 		$65.86 1
17K707 LR011048
GLASS - REAR VIEW OUTER MIRROR
(+)"GCC", Arabic Script On Mirror, Less Blind Spot Information System, Less Electrochromatic Mirror / LH, Convex / From: AA000001 		$69.17 1
17K707 LR011049
GLASS - REAR VIEW OUTER MIRROR
(-)"CDN/MEX/USA", Less Blind Spot Information System, Less Mirror Glass Script, With Electrochromatic Mirror / RH, Convex / From: AA000001 		$364.04 1
17K707 LR011051
GLASS - REAR VIEW OUTER MIRROR
(-)"CDN/MEX/USA", Less Blind Spot Information System, With Electrochromatic Mirror / LH, Convex / From: AA000001 		$364.04 1
17K707 LR011052
GLASS - REAR VIEW OUTER MIRROR
(+)"CDN/MEX/USA", Less Blind Spot Information System, NAS Script On Mirror, With Electrochromatic Mirror / RH, Convex / From: AA000001 		$364.04 1
17K707 LR011053
GLASS - REAR VIEW OUTER MIRROR
(+)"CDN/MEX/USA", Less Blind Spot Information System, With Electrochromatic Mirror / LH, Flat / From: AA000001 		$364.04 1
17K707 LR011054
GLASS - REAR VIEW OUTER MIRROR
(+)"GCC", Arabic Script On Mirror, Less Blind Spot Information System, With Electrochromatic Mirror / RH, Convex / From: AA000001 		$446.63 1
17K707 LR011055
GLASS - REAR VIEW OUTER MIRROR
(+)"GCC", Arabic Script On Mirror, Less Blind Spot Information System, With Electrochromatic Mirror / LH, Convex / From: AA000001 		$446.63 1
17K707 LR011056
GLASS - REAR VIEW OUTER MIRROR
(-)"CDN/MEX/USA", Less Mirror Glass Script, With Blind Spot Monitoring, With Electrochromatic Mirror / RH, Convex / From: AA000001 		$396.81 1
17K707 LR011057
GLASS - REAR VIEW OUTER MIRROR
(-)"CDN/MEX/USA", With Blind Spot Monitoring, With Electrochromatic Mirror / LH, Convex / From: AA000001 		$396.81 1
17K707 LR011046
GLASS - REAR VIEW OUTER MIRROR
(+)"CDN/MEX/USA", NAS Script On Mirror, With Blind Spot Monitoring, With Electrochromatic Mirror / RH, Convex / From: AA000001 		$389.04 1
17K707 LR011044
GLASS - REAR VIEW OUTER MIRROR
(+)"CDN/MEX/USA", With Blind Spot Monitoring, With Electrochromatic Mirror / LH, Flat / From: AA000001 		$389.04 1
17K707 LR011043
GLASS - REAR VIEW OUTER MIRROR
(+)"GCC", Arabic Script On Mirror, With Blind Spot Monitoring, With Electrochromatic Mirror / RH, Convex / From: AA000001 		$513.11 1
17K707 LR011042
GLASS - REAR VIEW OUTER MIRROR
(+)"GCC", Arabic Script On Mirror, With Blind Spot Monitoring, With Electrochromatic Mirror / LH, Convex / From: AA000001 		$513.11 1
17T677 CFB000040
SEAL
RH / From: AA000001 		$58.81 1
17T677 CFB000050
SEAL
LH / From: AA000001 		$58.81 1
13466 CTY500011
BULB
Less Front Camera / 12V - 5W / From: AA000001
IN STOCK 		$1.55 1
13711 CTZ500010
CARRIER - BULB
Less Front Camera / From: AA000001 		$21.36 1
17682 LR011111
MIRROR - REAR VIEW - OUTER
Less Blind Spot Information System, Less Electrochromatic Mirror, Less Front Camera, RHD / RH / From: AA000001 / To: CA386911 		$501.66 1
17682 LR011112
MIRROR - REAR VIEW - OUTER
LHD, Less Blind Spot Information System, Less Electrochromatic Mirror, Less Front Camera / RH / From: AA000001 / To: CA386911 		$501.66 1
17682 LR011113
MIRROR - REAR VIEW - OUTER
Less Blind Spot Information System, Less Front Camera, RHD, With Electrochromatic Mirror / RH / From: AA000001 / To: CA386911 		$501.66 1
17682 LR011114
MIRROR - REAR VIEW - OUTER
LHD, Less Blind Spot Information System, Less Front Camera, With Electrochromatic Mirror / RH / From: AA000001 / To: CA386911 		$501.66 1
17682 LR011115
MIRROR - REAR VIEW - OUTER
Less Front Camera, RHD, With Blind Spot Monitoring, With Electrochromatic Mirror / RH / From: AA000001 		$618.66 1
17682 LR011116
MIRROR - REAR VIEW - OUTER
LHD, Less Front Camera, With Blind Spot Monitoring, With Electrochromatic Mirror / RH / From: AA000001 / To: CA386911 		$990.80 1
17682 LR011117
MIRROR - REAR VIEW - OUTER
Less Blind Spot Information System, RHD, Surround Camera System, With Electrochromatic Mirror / RH / From: AA000001 / To: CA386911 		$664.64 1
17682 LR011118
MIRROR - REAR VIEW - OUTER
LHD, Less Blind Spot Information System, Surround Camera System, With Electrochromatic Mirror / RH / From: AA000001 / To: CA386911 		$674.61 1
17682 LR011119
MIRROR - REAR VIEW - OUTER
RHD, Surround Camera System, With Blind Spot Monitoring, With Electrochromatic Mirror / RH / From: AA000001 / To: CA386911 		$674.61 1
17682 LR011120
MIRROR - REAR VIEW - OUTER
LHD, Surround Camera System, With Blind Spot Monitoring, With Electrochromatic Mirror / RH / From: AA000001 / To: CA386911 		$945.20 1
17682 LR011121
MIRROR - REAR VIEW - OUTER
Less Blind Spot Information System, Less Electrochromatic Mirror, Less Front Camera, RHD / LH, Contains Ambient Air Temperature Sensor / From: AA000001 / To: CA386911 		$501.66 1
17682 LR011122
MIRROR - REAR VIEW - OUTER
LHD, Less Blind Spot Information System, Less Electrochromatic Mirror, Less Front Camera / LH, Contains Ambient Air Temperature Sensor / From: AA000001 / To: CA386911 		$501.66 1
17682 LR011123
MIRROR - REAR VIEW - OUTER
Less Blind Spot Information System, Less Front Camera, RHD, With Electrochromatic Mirror / LH, Contains Ambient Air Temperature Sensor / From: AA000001 / To: CA386911 		$501.66 1
17682 LR011124
MIRROR - REAR VIEW - OUTER
LHD, Less Blind Spot Information System, Less Front Camera, With Electrochromatic Mirror / LH, Contains Ambient Air Temperature Sensor / From: AA000001 / To: CA386911 		$501.66 1
17682 LR011125
MIRROR - REAR VIEW - OUTER
Less Front Camera, RHD, With Blind Spot Monitoring, With Electrochromatic Mirror / LH, Contains Ambient Air Temperature Sensor / From: AA000001 		$619.18 1
17682 LR011126
MIRROR - REAR VIEW - OUTER
LHD, Less Front Camera, With Blind Spot Monitoring, With Electrochromatic Mirror / LH, Contains Ambient Air Temperature Sensor / From: AA000001 / To: CA386911 		$943.85 1
17682 LR011127
MIRROR - REAR VIEW - OUTER
Less Blind Spot Information System, RHD, Surround Camera System, With Electrochromatic Mirror / LH, Contains Ambient Air Temperature Sensor / From: AA000001 / To: CA386911 		$664.64 1
17682 LR011128
MIRROR - REAR VIEW - OUTER
LHD, Less Blind Spot Information System, Surround Camera System, With Electrochromatic Mirror / LH, Contains Ambient Air Temperature Sensor / From: AA000001 / To: CA386911 		$674.61 1
17682 LR011129
MIRROR - REAR VIEW - OUTER
RHD, Surround Camera System, With Blind Spot Monitoring, With Electrochromatic Mirror / LH, Contains Ambient Air Temperature Sensor / From: AA000001 / To: CA386911 		$674.61 1
17682 LR011130
MIRROR - REAR VIEW - OUTER
LHD, Surround Camera System, With Blind Spot Monitoring, With Electrochromatic Mirror / LH, Contains Ambient Air Temperature Sensor / From: AA000001 / To: CA386911 		$674.61 1
17682 LR043673
MIRROR - REAR VIEW - OUTER
Less Blind Spot Information System, Less Electrochromatic Mirror, Less Front Camera, RHD / RH / From: CA386912 		$463.04 1
17682 LR043674
MIRROR - REAR VIEW - OUTER
LHD, Less Blind Spot Information System, Less Electrochromatic Mirror, Less Front Camera / RH / From: CA386912 		$498.76 1
17682 LR043675
MIRROR - REAR VIEW - OUTER
Less Blind Spot Information System, Less Front Camera, RHD, With Electrochromatic Mirror / RH / From: CA386912 		$542.22 1
17682 LR043676
MIRROR - REAR VIEW - OUTER
LHD, Less Blind Spot Information System, Less Front Camera, With Electrochromatic Mirror / RH / From: CA386912 		$597.36 1
17682 LR043677
MIRROR - REAR VIEW - OUTER
LHD, Less Front Camera, With Blind Spot Monitoring, With Electrochromatic Mirror / RH / From: CA386912 		$685.06 1
17682 LR043678
MIRROR - REAR VIEW - OUTER
Less Blind Spot Information System, RHD, Surround Camera System, With Electrochromatic Mirror / RH / From: CA386912 		$626.45 1
17682 LR043679
MIRROR - REAR VIEW - OUTER
LHD, Less Blind Spot Information System, Surround Camera System, With Electrochromatic Mirror / RH / From: CA386912 		$626.45 1
17682 LR043680
MIRROR - REAR VIEW - OUTER
RHD, Surround Camera System, With Blind Spot Monitoring, With Electrochromatic Mirror / RH / From: CA386912 		$1,019.67 1
17682 LR043681
MIRROR - REAR VIEW - OUTER
LHD, Surround Camera System, With Blind Spot Monitoring, With Electrochromatic Mirror / RH / From: CA386912 		$1,019.67 1
17682 LR043682
MIRROR - REAR VIEW - OUTER
Less Blind Spot Information System, Less Electrochromatic Mirror, Less Front Camera, RHD / LH, Contains Ambient Air Temperature Sensor / From: CA386912 		$455.23 1
17682 LR043683
MIRROR - REAR VIEW - OUTER
LHD, Less Blind Spot Information System, Less Electrochromatic Mirror, Less Front Camera / LH, Contains Ambient Air Temperature Sensor / From: CA386912 		$449.74 1
17682 LR043684
MIRROR - REAR VIEW - OUTER
Less Blind Spot Information System, Less Front Camera, RHD, With Electrochromatic Mirror / LH, Contains Ambient Air Temperature Sensor / From: CA386912 		$542.22 1
17682 LR043685
MIRROR - REAR VIEW - OUTER
LHD, Less Blind Spot Information System, Less Front Camera, With Electrochromatic Mirror / LH, Contains Ambient Air Temperature Sensor / From: CA386912 		$597.36 1
17682 LR043686
MIRROR - REAR VIEW - OUTER
LHD, Less Front Camera, With Blind Spot Monitoring, With Electrochromatic Mirror / LH, Contains Ambient Air Temperature Sensor / From: CA386912 		$685.06 1
17682 LR043687
MIRROR - REAR VIEW - OUTER
Less Blind Spot Information System, RHD, Surround Camera System, With Electrochromatic Mirror / LH, Contains Ambient Air Temperature Sensor / From: CA386912 		$801.53 1
17682 LR043688
MIRROR - REAR VIEW - OUTER
LHD, Less Blind Spot Information System, Surround Camera System, With Electrochromatic Mirror / LH, Contains Ambient Air Temperature Sensor / From: CA386912 		$801.53 1
17682 LR043689
MIRROR - REAR VIEW - OUTER
RHD, Surround Camera System, With Blind Spot Monitoring, With Electrochromatic Mirror / LH, Contains Ambient Air Temperature Sensor / From: CA386912 		$1,019.67 1
17682 LR043690
MIRROR - REAR VIEW - OUTER
LHD, Surround Camera System, With Blind Spot Monitoring, With Electrochromatic Mirror / LH, Contains Ambient Air Temperature Sensor / From: CA386912 		$1,019.67 1
