Name: Heat Shields - Exhaust System (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)
Rating: 4.8 (1 reviews)

View All

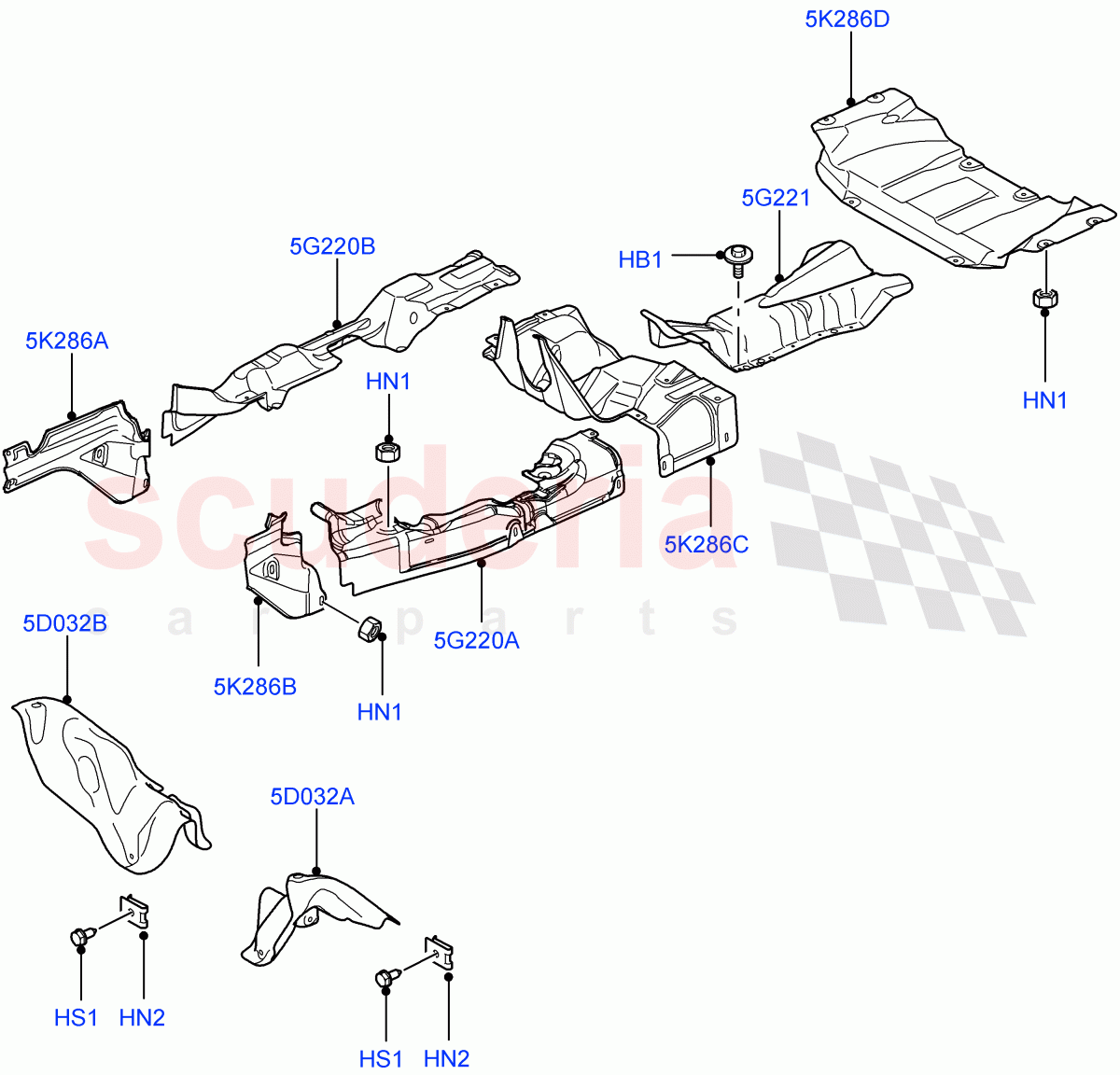

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DYP500080	BOLT	$2.48	To Order

Photo	Part No	Description	Price (each)	Stock
	WYH500050	NUT - LOCKING	$2.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	KYH500230	NUT - FLANGED	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP000411	SCREW - SELF-TAPPING	$1.14	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500610	SHIELD	$159.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012225	SHIELD	$129.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025231	SHIELD	$109.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020108	HEAT SHIELD	$90.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022523	HEAT SHIELD	$58.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018373	SHIELD	$138.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018377	HEAT SHIELD - EXHAUST	$137.06	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500780	INSULATOR - TUNNEL	$223.49	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500640	HEAT SHIELD	$108.67	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	DYP500080	BOLT	DYP500080 BOLT M5 x 20MM / From: BA000001	$2.48	8
HN1	WYH500050	NUT - LOCKING IN STOCK	WYH500050 NUT - LOCKING M5 / From: BA000001 IN STOCK	$2.67	16
HN2	KYH500230	NUT - FLANGED	KYH500230 NUT - FLANGED 4.8MM / From: BA000001	$1.31	4
HS1	KYP000411	SCREW - SELF-TAPPING	KYP000411 SCREW - SELF-TAPPING 4.8 X 13MM, Self Tapping / From: BA000001	$1.14	4
5D032A	LR012225	SHIELD	LR012225 SHIELD LH, Heatshield Bush Front Stabilizer Bar / From: BA000001	$129.67	1
5D032B	LR025231	SHIELD	LR025231 SHIELD RH, Heatshield Bush Front Stabilizer Bar / From: BA000001	$109.82	1
5G220A	LR020108	HEAT SHIELD	LR020108 HEAT SHIELD LH / From: BA000001	$90.90	1
5G220B	LR022523	HEAT SHIELD	LR022523 HEAT SHIELD RH / From: BA000001	$58.07	1
5G221	WEB500610	SHIELD	WEB500610 SHIELD Center Rear / From: BA000001	$159.34	1
5K286A	LR018373	SHIELD	LR018373 SHIELD RH, Front / From: BA000001	$138.93	1
5K286B	LR018377	HEAT SHIELD - EXHAUST	LR018377 HEAT SHIELD - EXHAUST LH, Front / From: BA000001	$137.06	1
5K286C	WEB500780	INSULATOR - TUNNEL	WEB500780 INSULATOR - TUNNEL Middle / From: BA000001	$223.49	1
5K286D	WEB500640	HEAT SHIELD	WEB500640 HEAT SHIELD Rear / From: BA000001	$108.67	1

Heat Shields - Exhaust System (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]
