Fuel Lines (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Fuel Lines (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR019161 CLIP $0.35 To Order
Photo Part No Description Price (each) Stock
LR019139 CLIP $1.14 To Order
Photo Part No Description Price (each) Stock
WJC000040 CLIP - BRAKE PIPE $13.99 To Order
Photo Part No Description Price (each) Stock
WYC100900 CLIP - HOSE $2.69 To Order
Photo Part No Description Price (each) Stock
WZU000010 COVER $6.82 To Order
Photo Part No Description Price (each) Stock
FX108046 NUT - LOCKING $0.40 IN STOCK
Photo Part No Description Price (each) Stock
LR023061 FILTER - FUEL - PRIMARY $580.45 To Order
LR029097 FUEL - PRIMARY $552.76 To Order
LR072685 FILTER - FUEL - PRIMARY $552.76 To Order
Photo Part No Description Price (each) Stock
LR022789 PIPE - FUEL $34.27 To Order
Photo Part No Description Price (each) Stock
LR022778 TUBE $47.47 To Order
Photo Part No Description Price (each) Stock
LR023049 TUBE $52.51 To Order
Photo Part No Description Price (each) Stock
LR023052 CLIP $1.95 To Order
Photo Part No Description Price (each) Stock
LR023042 ELEMENT - FUEL FILTER $129.68 To Order
LR072610 ELEMENT - FUEL FILTER $124.19 To Order
Photo Part No Description Price (each) Stock
LR023054 TUBE - FUEL FILTER TO FUEL PUMP $73.71 To Order
Photo Part No Description Price (each) Stock
LR031822 TUBE - FUEL RETURN $134.49 To Order
LR031822 TUBE - FUEL RETURN $134.49 To Order
Photo Part No Description Price (each) Stock
LR023097 PIPE - FUEL RETURN $47.53 To Order
Photo Part No Description Price (each) Stock
LR023062 HOSE - FUEL $207.63 To Order
LR031821 TUBE - FUEL FILTER TO FUEL PUMP $229.13 To Order
Photo Part No Description Price (each) Stock
AAU3084 Retainer Enquire To Order
View All

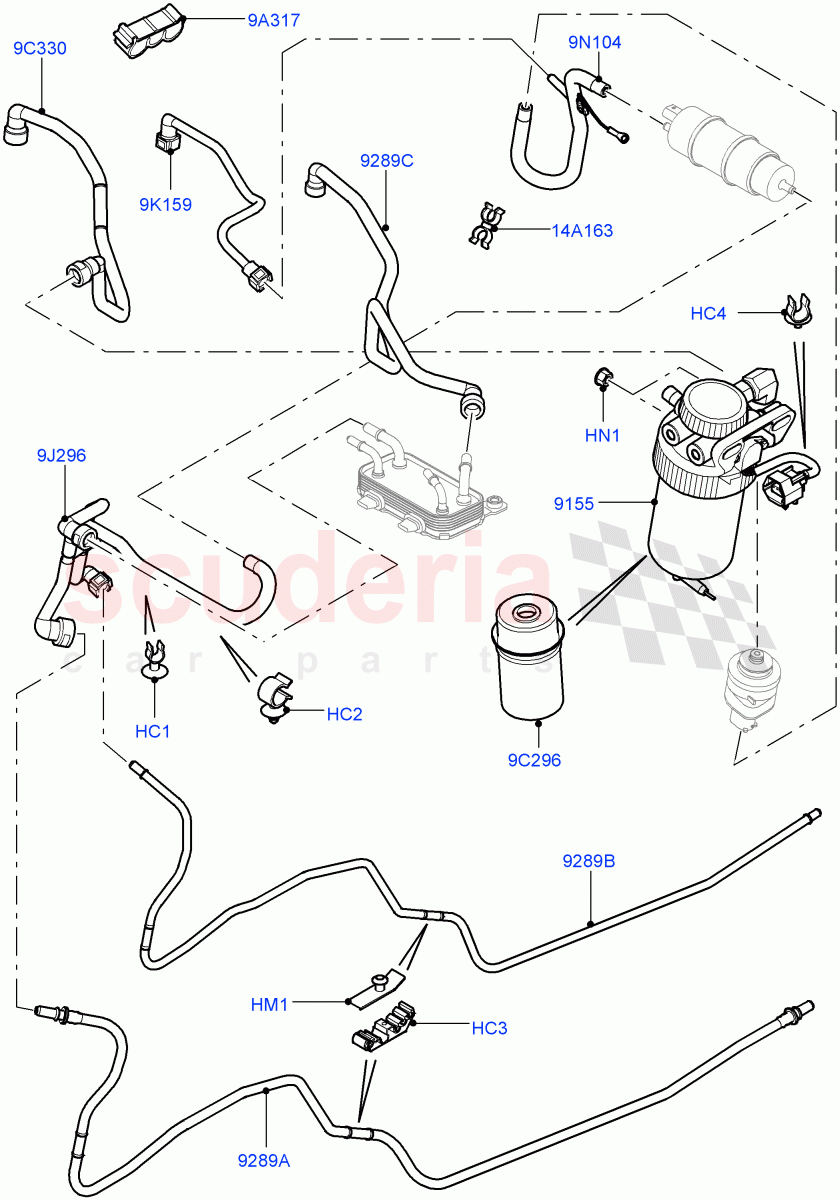

Fuel Lines (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR019161
CLIP
10 x 6.5 / From: BA000001 		$0.35 1
HC2 LR019139
CLIP
16 X 0.6MM / From: BA000001 		$1.14 1
HC3 WJC000040
CLIP - BRAKE PIPE
5 Way / From: BA000001 		$13.99 4
HC4 WYC100900
CLIP - HOSE
13MM / From: BA000001 		$2.69 3
HM1 WZU000010
COVER
Clip, Cover / From: BA000001 		$6.82 4
HN1 FX108046
NUT - LOCKING
M8 / From: BA000001
IN STOCK 		$0.40 2
9A317 LR023052
CLIP
For Fuel Tube / From: BA000001 		$1.95 1
9C296 LR023042
ELEMENT - FUEL FILTER
For Fuel Filter, Includes O-Ring / From: BA000001 / To: BA352846 		$129.68 1
9C296 LR072610
ELEMENT - FUEL FILTER
For Fuel Filter, Includes O-Ring / From: BA352847 		$124.19 1
9C330 LR023054
TUBE - FUEL FILTER TO FUEL PUMP
Fuel Filter To High Pressure Pump / From: BA000001 		$73.71 1
9J296 LR031822
TUBE - FUEL RETURN
From: BA000001 / To: BA352846 		$134.49 1
9J296 LR031822
TUBE - FUEL RETURN
From: BA352847 		$134.49 1
9K159 LR023097
PIPE - FUEL RETURN
From: BA000001 		$47.53 1
9N104 LR023062
HOSE - FUEL
From: BA000001 / To: BA350469 		$207.63 1
9N104 LR031821
TUBE - FUEL FILTER TO FUEL PUMP
From: BA350470 		$229.13 1
14A163 AAU3084
Retainer
From: BA000001 		- 3 Enquire
9155 LR023061
FILTER - FUEL - PRIMARY
With Sensor / From: BA000001 / To: BA350469 		$580.45 1
9155 LR029097
FUEL - PRIMARY
With Sensor / From: BA350470 / To: BA352846 		$552.76 1
9155 LR072685
FILTER - FUEL - PRIMARY
With Sensor / From: BA352847 		$552.76 1
9289A LR022789
PIPE - FUEL
From Fuel Filter To Under Floor Pipes, Return / From: BA000001 		$34.27 1
9289B LR022778
TUBE
Feed, To Fuel Filter And Secondary Fuel Pump / From: BA000001 		$47.47 1
9289C LR023049
TUBE
From Engine To Fuel Cooler / From: BA000001 		$52.51 1
