Intercooler/Air Ducts And Hoses (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Intercooler/Air Ducts And Hoses (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT $0.68 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
WYH500060 NUT $3.89 To Order
Photo Part No Description Price (each) Stock
LR023068 TUBE $79.36 To Order
Photo Part No Description Price (each) Stock
C2D47313 SENSOR - AIR CHARGE Enquire To Order
Photo Part No Description Price (each) Stock
LR022738 INTERCOOLER $745.98 To Order
Photo Part No Description Price (each) Stock
LR022669 HOSE $211.19 To Order
Photo Part No Description Price (each) Stock
LR022727 DUCT - AIR $69.92 To Order
Photo Part No Description Price (each) Stock
LR022729 TUBE - OUTLET $190.24 To Order
LR029007 TUBE - OUTLET $287.12 To Order
Photo Part No Description Price (each) Stock
LR022676 TUBE - AIR INLET $229.72 To Order
Photo Part No Description Price (each) Stock
LR022808 PIPE - TURBO BOOST $102.40 To Order
LR033339 PIPE - TURBO BOOST $126.27 To Order
Photo Part No Description Price (each) Stock
LR022728 HOSE - COMPRESSED AIR $275.22 To Order
LR029006 HOSE - COMPRESSED AIR $258.12 To Order
Photo Part No Description Price (each) Stock
LR022663 TUBE - INLET $268.76 To Order
View All

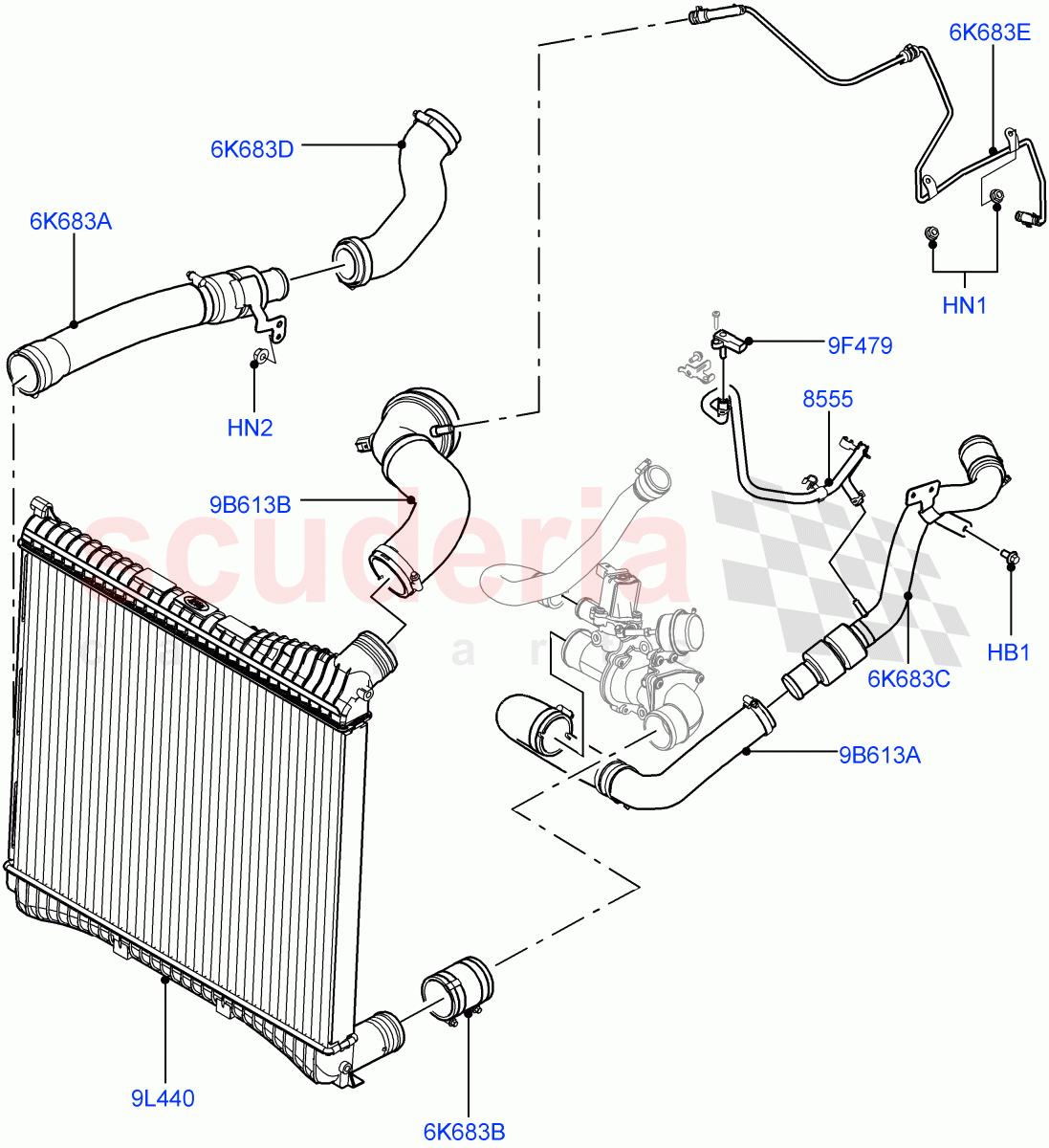

Intercooler/Air Ducts And Hoses (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM, Turbocharger Outlet / From: BA000001
IN STOCK 		$0.68 2
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: BA000001
IN STOCK 		$1.47 2
HN2 WYH500060
NUT
M8 / From: BA000001 		$3.89 1
6K683A LR022669
HOSE
RH, Turbocharger Outlet / From: BA000001 		$211.19 1
6K683B LR022727
DUCT - AIR
From Valve To Intercooler / From: BA000001 		$69.92 1
6K683C LR022729
TUBE - OUTLET
LH, Turbocharger Outlet / From: BA000001 / To: BA347724 		$190.24 1
6K683C LR029007
TUBE - OUTLET
LH, Turbocharger Outlet / From: BA347725 		$287.12 1
6K683D LR022676
TUBE - AIR INLET
RH, Turbocharger Outlet / From: BA000001 		$229.72 1
6K683E LR022808
PIPE - TURBO BOOST
Boost Pipe / From: BA000001 / To: CA393013 		$102.40 1
6K683E LR033339
PIPE - TURBO BOOST
Boost Pipe / From: CA393014 		$126.27 1
9B613A LR022728
HOSE - COMPRESSED AIR
From Turbocharger To Valve / From: BA000001 / To: BA342848 		$275.22 1
9B613A LR029006
HOSE - COMPRESSED AIR
From Turbocharger To Valve / From: BA342849 		$258.12 1
9B613B LR022663
TUBE - INLET
CAC Hose To Intake Manifold Elbow / From: BA000001 		$268.76 1
9F479 C2D47313
SENSOR - AIR CHARGE
Secondary Compressor Outlet Pressure Sensor / From: BA000001 		- 1 Enquire
9L440 LR022738
INTERCOOLER
From: BA000001 		$745.98 1
8555 LR023068
TUBE
Secondary Compressor Outlet Pressure Sensor / From: BA000001 		$79.36 1
