Inlet Manifold (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Inlet Manifold (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR048063 CLIP $5.14 To Order
Photo Part No Description Price (each) Stock
FN106042 NUT $1.03 IN STOCK
Photo Part No Description Price (each) Stock
4408651 SCREW $1.27 To Order
Photo Part No Description Price (each) Stock
LR023027 STUD $9.81 To Order
Photo Part No Description Price (each) Stock
LR022882 COVER $144.96 To Order
LR038152 COVER $614.58 To Order
Photo Part No Description Price (each) Stock
LR022884 STUD - BALL $6.74 To Order
Photo Part No Description Price (each) Stock
LR023038 TUBE - EXHAUST GAS RECIRCULATION $147.43 To Order
Photo Part No Description Price (each) Stock
LR053016 PIPE - OIL FEED $40.74 IN STOCK
LR053016 PIPE - OIL FEED $40.74 IN STOCK
Photo Part No Description Price (each) Stock
LR022737 DUCT - AIR INTAKE $843.92 To Order
LR033348 DUCT - AIR INTAKE $603.21 To Order
LR048505 DUCT - AIR INTAKE $925.19 To Order
Photo Part No Description Price (each) Stock
LR022739 BRACKET - ENGINE COVER $33.96 To Order
Photo Part No Description Price (each) Stock
LR022743 MANIFOLD - INLET $683.63 To Order
LR034993 MANIFOLD - INLET $750.22 To Order
Photo Part No Description Price (each) Stock
LR022921 MANIFOLD - INLET $620.58 To Order
LR034994 MANIFOLD - INLET $728.27 To Order
Photo Part No Description Price (each) Stock
LR022748 GASKET - INTAKE MANIFOLD $47.57 To Order
LR035029 GASKET - INTAKE MANIFOLD $85.01 To Order
Photo Part No Description Price (each) Stock
LR022919 GASKET - INTAKE MANIFOLD $40.45 To Order
LR035031 GASKET - INTAKE MANIFOLD $85.01 To Order
Photo Part No Description Price (each) Stock
LR022931 GASKET - THROTTLE $3.63 To Order
Photo Part No Description Price (each) Stock
LR022916 SENSOR - MANIFOLD ABSOLUTE PRESSURE $141.45 To Order
LR125298 SENSOR - MANIFOLD ABSOLUTE PRESSURE $156.90 To Order
Photo Part No Description Price (each) Stock
LR056285 DUCT - AIR $49.23 To Order
Photo Part No Description Price (each) Stock
LR056285 DUCT - AIR $49.23 To Order
Photo Part No Description Price (each) Stock
LR022751 BRACKET - INTAKE MANIFOLD $22.03 To Order
LR038336 BRACKET - INTAKE MANIFOLD $41.29 To Order
Photo Part No Description Price (each) Stock
LR022912 BRACKET - INTAKE MANIFOLD $22.15 To Order
View All

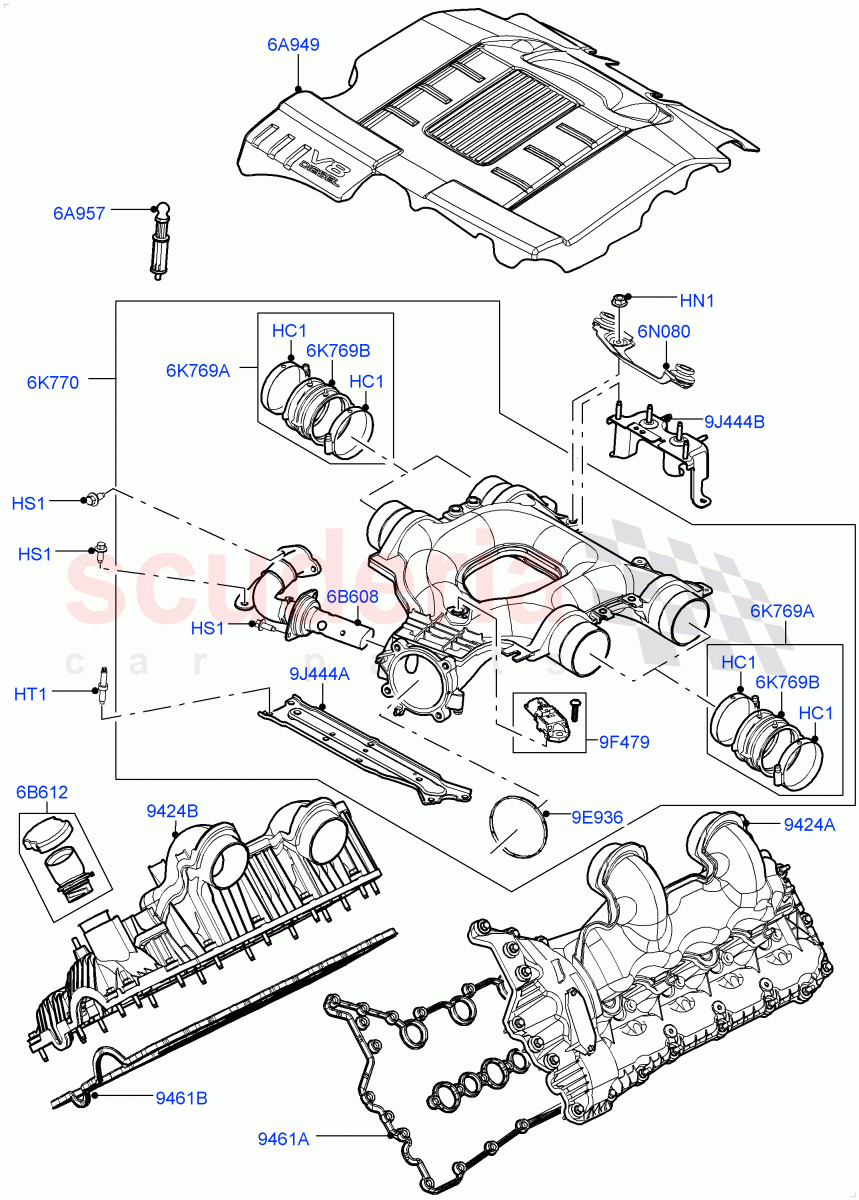

Inlet Manifold (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR048063
CLIP
56-84MM / From: BA000001 / To: CA393365 		$5.14 8
HN1 FN106042
NUT
Hexagonal Head, M6 / From: BA000001
IN STOCK 		$1.03 2
HS1 4408651
SCREW
M6 X 14MM / From: BA000001 		$1.27 3
HT1 LR023027
STUD
M6, Support Bracket / From: BA000001 		$9.81 4
6A949 LR022882
COVER
Engine / From: BA000001 / To: CA393569 		$144.96 1
6A949 LR038152
COVER
Engine / From: CA393570 		$614.58 1
6A957 LR022884
STUD - BALL
Cover, Engine / From: BA000001 		$6.74 2
6B608 LR023038
TUBE - EXHAUST GAS RECIRCULATION
EGR Valve / From: BA000001 		$147.43 1
6B612 LR053016
PIPE - OIL FEED
Land Rover Print / From: BA000001
IN STOCK 		$40.74 1
6B612 LR053016
PIPE - OIL FEED
Jaguar And Land Rover Print, Service Only / From: AA000001
IN STOCK 		$40.74 1
6K769A LR056285
DUCT - AIR
Connector, With Clamps / From: BA000001 		$49.23 4
6K769B LR056285
DUCT - AIR
Connector, Less Clamps - Must Order Separately / From: BA000001 / To: CA393365 		$49.23 4
6K770 LR022737
DUCT - AIR INTAKE
Air Intake, Complete Assembly / From: BA000001 / To: CA393013 		$843.92 1
6K770 LR033348
DUCT - AIR INTAKE
Air Intake, Complete Assembly / From: CA393014 / To: CA393015 		$603.21 1
6K770 LR048505
DUCT - AIR INTAKE
Air Intake, Complete Assembly / From: CA393016 		$925.19 1
6N080 LR022739
BRACKET - ENGINE COVER
Engine Cover / From: BA000001 		$33.96 1
9E936 LR022931
GASKET - THROTTLE
Attaches to intake manifold, Throttle Body To Intake / From: BA000001 		$3.63 1
9F479 LR022916
SENSOR - MANIFOLD ABSOLUTE PRESSURE
Sensor - Manifold Absolute Pressure (MAP) / From: BA000001 / To: BA999999 		$141.45 1
9F479 LR125298
SENSOR - MANIFOLD ABSOLUTE PRESSURE
Sensor - Manifold Absolute Pressure (MAP) / From: CA000001 		$156.90 1
9J444A LR022751
BRACKET - INTAKE MANIFOLD
Intake Manifold / From: BA000001 / To: CA393013 		$22.03 1
9J444A LR038336
BRACKET - INTAKE MANIFOLD
Intake Manifold / From: CA393014 		$41.29 1
9J444B LR022912
BRACKET - INTAKE MANIFOLD
Intake Manifold, Support / From: BA000001 		$22.15 1
9424A LR022743
MANIFOLD - INLET
LH, With Cylinder Head Cover / From: BA000001 / To: CA393013 		$683.63 1
9424A LR034993
MANIFOLD - INLET
LH, With Cylinder Head Cover / From: CA393014 		$750.22 1
9424B LR022921
MANIFOLD - INLET
RH, With Cylinder Head Cover / From: BA000001 / To: CA393013 		$620.58 1
9424B LR034994
MANIFOLD - INLET
RH, With Cylinder Head Cover / From: CA393014 		$728.27 1
9461A LR022748
GASKET - INTAKE MANIFOLD
LH, Manifold To Cylinder Head / From: BA000001 / To: CA393013 		$47.57 1
9461A LR035029
GASKET - INTAKE MANIFOLD
LH, Manifold To Cylinder Head / From: CA393014 		$85.01 1
9461B LR022919
GASKET - INTAKE MANIFOLD
RH, Manifold To Cylinder Head / From: BA000001 / To: CA393013 		$40.45 1
9461B LR035031
GASKET - INTAKE MANIFOLD
RH, Manifold To Cylinder Head / From: CA393014 		$85.01 1
