Rear Seat Back (Lockdown, Mechanism) (Less Armoured) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Rear Seat Back (Lockdown, Mechanism) (Less Armoured) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
HYH000110 NUT - LOCKING $1.17 To Order
Photo Part No Description Price (each) Stock
HYG500310 SCREW $1.17 To Order
Photo Part No Description Price (each) Stock
HYP000280 SCREW $3.00 To Order
Photo Part No Description Price (each) Stock
HYP500230 SCREW $14.42 To Order
Photo Part No Description Price (each) Stock
HYP000200 SCREW - SELF-TAPPING $1.21 To Order
Photo Part No Description Price (each) Stock
HYP000160 SCREW - SELF-TAPPING $1.21 To Order
PYP500140 SCREW $0.77 IN STOCK
Photo Part No Description Price (each) Stock
HYP000260 SCREW $1.19 To Order
Photo Part No Description Price (each) Stock
HYP000080 SCREW $1.17 To Order
Photo Part No Description Price (each) Stock
HYP500020 SCREW $1.21 To Order
Photo Part No Description Price (each) Stock
BYF100070 WASHER $0.70 To Order
Photo Part No Description Price (each) Stock
LR017773 MOTOR - SEAT BACK RECLINING $729.04 To Order
LR017774 MOTOR - SEAT BACK RECLINING $729.04 To Order
Photo Part No Description Price (each) Stock
HWK000042PUY STRIKER $10.58 To Order
HWK000052PUY STRIKER $10.68 To Order
Photo Part No Description Price (each) Stock
HTM000040 STRIKER - LATCH $38.67 To Order
Photo Part No Description Price (each) Stock
HXT000042JMN COVER $28.23 To Order
HXT000042LER COVER $27.61 To Order
HXT000042PVA COVER $28.23 To Order
...and 11 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HXT000051JMN COVER $28.23 To Order
HXT000051LER COVER $27.61 To Order
HXT000051PVA COVER $28.23 To Order
...and 23 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HXM000040JMN COVER $11.02 To Order
HXM000040LER COVER $12.52 To Order
HXM000040PVA COVER $53.85 To Order
...and 11 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR018839 BRACKET - SEAT SUPPORT $34.39 To Order
LR018840 BRACKET - SEAT SUPPORT $41.87 To Order
LR018837 BRACKET $55.45 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HWZ000011PVA COVER $48.34 To Order
HWZ000021PVA COVER $48.34 To Order
Photo Part No Description Price (each) Stock
HWE000040 LATCH $70.09 To Order
Photo Part No Description Price (each) Stock
HWE000060 LATCH $104.82 To Order
HWE000070 LATCH $54.80 To Order
Photo Part No Description Price (each) Stock
HWT000010 LATCH $94.74 To Order
HWT000020 LATCH $96.16 To Order
View All

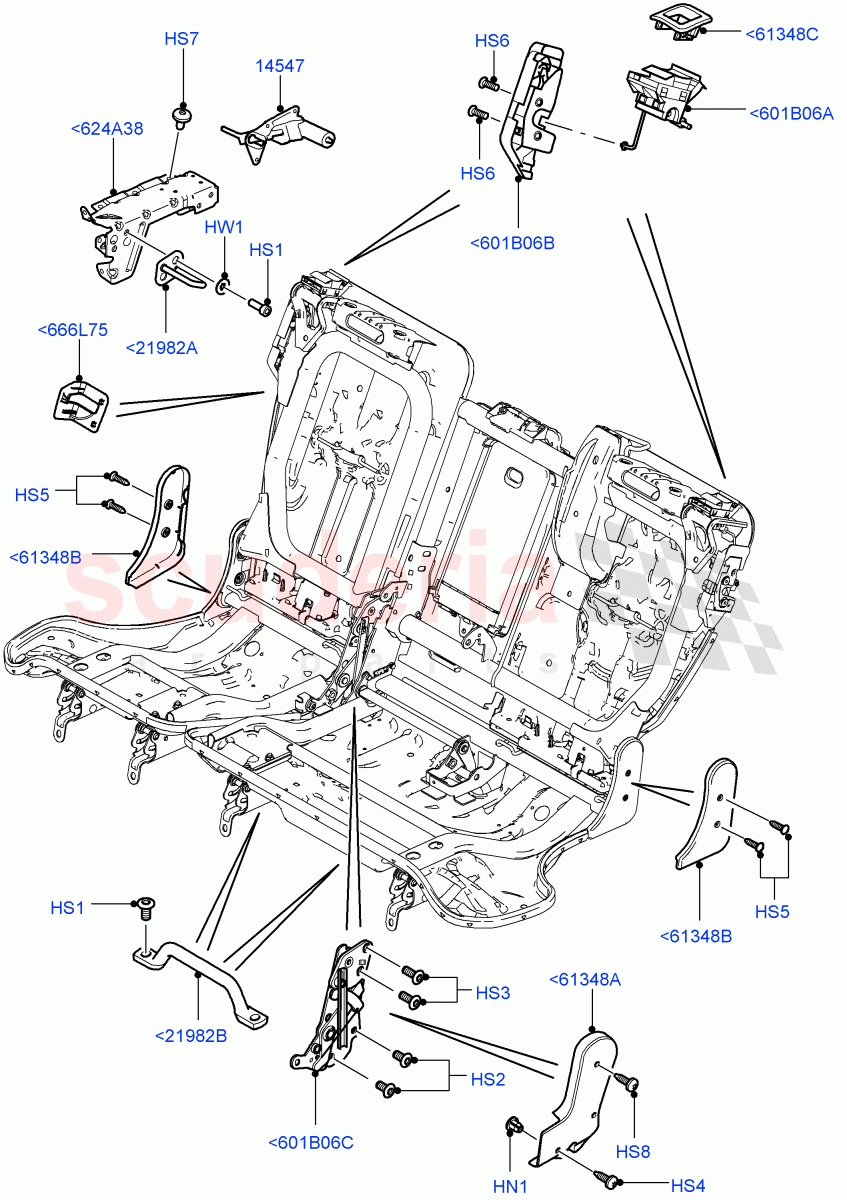

Rear Seat Back (Lockdown, Mechanism) (Less Armoured) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<601B06A HWE000040
LATCH
Rear Seat Back / From: AA000001 		$70.09 2
<601B06B HWE000060
LATCH
Outer, Small Squab, Upper / From: AA000001 		$104.82 1
<601B06B HWE000070
LATCH
Large Squab, Outer, Upper / From: AA000001 		$54.80 1
<601B06C HWT000010
LATCH
Small Squab / From: AA000001 		$94.74 1
<601B06C HWT000020
LATCH
Large Squab / From: AA000001 		$96.16 1
<624A38 LR018839
BRACKET - SEAT SUPPORT
RH / From: AA000001 / To: AA313068 		$34.39 1
<624A38 LR018840
BRACKET - SEAT SUPPORT
LH / From: AA000001 / To: AA313068 		$41.87 1
<624A38 LR018837
BRACKET
RH / From: AA313069 		$55.45 1
<624A38 LR018838
BRACKET
LH / From: AA313069 		$55.45 1
<666L75 HWZ000011PVA
COVER
Jet, Small Squab / From: AA000001 		$48.34 1
<666L75 HWZ000021PVA
COVER
Jet, Large Squab / From: AA000001 		$48.34 1
<21982A HWK000042PUY
STRIKER
Less Rear Seat Recliner / RH / From: AA000001 		$10.58 1
<21982A HWK000052PUY
STRIKER
Less Rear Seat Recliner / LH / From: AA000001 		$10.68 1
<21982B HTM000040
STRIKER - LATCH
Bracket, Frame To Body / From: AA000001 		$38.67 1
<61348A HXT000042JMN
COVER
Navy/Parch/Parch / Inner, Small Squab / From: AA000001 		$28.23 1
<61348A HXT000042LER
COVER
Storm / Inner, Small Squab / From: AA000001 		$27.61 1
<61348A HXT000042PVA
COVER
Jet/Ivory/Ivory/Ivory / Inner, Small Squab / From: AA000001 		$28.23 1
<61348A HXT000042SUN
COVER
Int Jet Carpet - LR, Sand/Jet/Jet / Inner, Small Squab / From: AA000001 		$28.23 1
<61348A HXT000042VAE
COVER
Parchment/Dark Saddle / Inner, Small Squab / From: AA000001 		$42.69 1
<61348A HXT000072JMN
COVER
Navy/Parch/Parch / Inner, Large Squab / From: AA000001 		$28.23 1
<61348A HXT000072LER
COVER
Storm / Inner, Large Squab / From: AA000001
IN STOCK 		$27.61 1
<61348A HXT000072SUN
COVER
Int Jet Carpet - LR, Sand/Jet/Jet / Inner, Large Squab / From: AA000001 		$28.23 1
<61348A HXT000072VAE
COVER
Parchment/Dark Saddle / Inner, Large Squab / From: AA000001 		$20.28 1
<61348A HXT000072PVA
COVER
Jet/Ivory/Ivory/Ivory / Inner, Large Squab / From: AA000001 		$28.23 1
<61348A LR011031
COVER
Arabica/Ivory/Ivory / Inner, Small Squab / From: AA000001 		$34.39 1
<61348A LR016330
COVER
Arabica/Ivory/Ivory / Inner, Large Squab / From: AA000001 		$34.39 1
<61348A HXT000042NUG
COVER
Navy/Ivory / Inner, Small Squab / From: AA000001 		$42.69 1
<61348A HXT000072NUG
COVER
Ivory/Arabica / Inner, Large Squab / From: AA000001 		$28.23 1
<61348B HXT000051JMN
COVER
Navy/Parchment Interior / Outer, Small Squab / From: AA000001 / To: AA313068 		$28.23 1
<61348B HXT000051LER
COVER
Storm/Jet/Jet / Outer, Small Squab / From: AA000001 / To: AA313068 		$27.61 1
<61348B HXT000051PVA
COVER
Jet/Ivory/Ivory / Outer, Small Squab / From: AA000001 / To: AA313068 		$28.23 1
<61348B HXT000051SUN
COVER
Sand/Jet Interior / Outer, Small Squab / From: AA000001 / To: AA313068 		$28.23 1
<61348B HXT000051VAE
COVER
Ext Navy/Parchment Interior / Outer, Small Squab / From: AA000001 / To: AA313068 		$27.49 1
<61348B LR011029
COVER
Arabica/Ivory/Ivory / Outer, Small Squab / From: AA000001 / To: AA313068 		$1,030.82 1
<61348B HXT000061JMN
COVER
Navy/Parchment Interior / Large Squab, Outer / From: AA000001 / To: AA313068 		$28.23 1
<61348B LR011030
COVER
Arabica/Ivory/Ivory / Large Squab, Outer / From: AA000001 / To: AA313068 		$28.23 1
<61348B HXT000061LER
COVER
Storm/Jet/Jet / Large Squab, Outer / From: AA000001 / To: AA313068 		$27.61 1
<61348B HXT000061PVA
COVER
Jet/Ivory/Ivory / Large Squab, Outer / From: AA000001 / To: AA313068 		$28.23 1
<61348B HXT000061SUN
COVER
Sand/Jet Interior / Large Squab, Outer / From: AA000001 / To: AA313068 		$28.23 1
<61348B HXT000061VAE
COVER
Ext Navy/Parchment Interior / Large Squab, Outer / From: AA000001 / To: AA313068 		$28.23 1
<61348B LR017890
COVER
Navy/Ivory / Outer, Small Squab / From: AA000001 		$27.74 1
<61348B LR017897
COVER
Navy/Ivory / Large Squab, Outer / From: AA000001 		$27.74 1
<61348B LR017887
COVER
Arabica/Ivory/Ivory / Outer, Small Squab / From: AA313069 		$16.34 1
<61348B LR017888
COVER
Navy/Parch/Parch / Outer, Small Squab / From: AA313069 		$27.62 1
<61348B LR017889
COVER
Storm/Jet/Jet / Outer, Small Squab / From: AA313069 		$27.62 1
<61348B LR017891
COVER
Jet/Ivory / Outer, Small Squab / From: AA313069 		$27.74 1
<61348B LR017892
COVER
Sand/Jet Interior / Outer, Small Squab / From: AA313069 		$27.62 1
<61348B LR017893
COVER
Ext Navy/Parchment Interior / Outer, Small Squab / From: AA313069 		$27.62 1
<61348B LR017894
COVER
Arabica/Ivory/Ivory / Large Squab, Outer / From: AA313069 		$16.34 1
<61348B LR017895
COVER
Navy/Parch/Parch / Large Squab, Outer / From: AA313069 		$27.62 1
<61348B LR017896
COVER
Storm/Jet/Jet / Large Squab, Outer / From: AA313069 		$27.62 1
<61348B LR017898
COVER
Jet/Ivory / Large Squab, Outer / From: AA313069 		$27.74 1
<61348B LR017899
COVER
Sand/Jet Interior / Large Squab, Outer / From: AA313069 		$27.62 1
<61348B LR017900
COVER
Ext Navy/Parchment Interior / Large Squab, Outer / From: AA313069 		$26.56 1
<61348C HXM000040JMN
COVER
Navy/Ivory / Small Squab / From: AA000001 		$11.02 1
<61348C HXM000040LER
COVER
Storm / Small Squab / From: AA000001 		$12.52 1
<61348C HXM000040PVA
COVER
Jet/Ivory/Ivory/Ivory / Small Squab / From: AA000001 		$53.85 1
<61348C HXM000040SUN
COVER
Sand/Jet/Jet / Small Squab / From: AA000001 		$19.56 1
<61348C HXM000040VAE
COVER
Ext Navy/Parchment Interior / Small Squab / From: AA000001 		$20.57 1
<61348C LR011171
COVER - SEAT PIVOT
Parchment/Dark Saddle / Small Squab / From: AA000001 		$23.06 1
<61348C HXM000050JMN
COVER
Navy/Ivory / Large Squab / From: AA000001 		$11.31 1
<61348C HXM000050LER
COVER
Storm / Large Squab / From: AA000001 		$9.85 1
<61348C HXM000050PVA
COVER
Jet/Ivory/Ivory/Ivory / Large Squab / From: AA000001 		$41.63 1
<61348C HXM000050SUN
COVER
Sand/Jet/Jet / Large Squab / From: AA000001 		$62.33 1
<61348C HXM000050VAE
COVER
Ext Navy/Parchment Interior / Large Squab / From: AA000001 		$20.57 1
<61348C LR016328
COVER - SEAT PIVOT
Arabica/Ivory/Ivory / Large Squab / From: AA000001 		$54.81 1
<61348C HXM000040NUG
COVER
Jet/Ivory Interior / Small Squab / From: AA000001 		$42.87 1
<61348C HXM000050NUG
COVER
Aspen/Ivory Interior / Large Squab / From: AA000001 		$21.83 1
HN1 HYH000110
NUT - LOCKING
Rear Seat / From: AA000001 		$1.17 4
HS1 HYG500310
SCREW
M10 X 30MM, Torx / From: AA000001 		$1.17 4
HS2 HYP000280
SCREW
M8 x 15MM / From: AA000001 		$3.00 4
HS3 HYP500230
SCREW
M8 X 20MM / From: AA000001 		$14.42 4
HS4 HYP000200
SCREW - SELF-TAPPING
Self Tapping / From: AA000001 		$1.21 4
HS5 HYP000160
SCREW - SELF-TAPPING
Self Tapping / From: AA000001 / To: AA329192 		$1.21 4
HS5 PYP500140
SCREW
4.2 x 13MM, Torx / From: AA329193
IN STOCK 		$0.77 4
HS6 HYP000260
SCREW
M8 x 40MM / From: AA000001 		$1.19 4
HS7 HYP000080
SCREW
Self Locking / From: AA000001 		$1.17 12
HS8 HYP500020
SCREW
Upper / From: AA000001 		$1.21 2
HW1 BYF100070
WASHER
10.5MM / From: AA000001 		$0.70 4
14547 LR017773
MOTOR - SEAT BACK RECLINING
With Power Rear Seat Recliner / RH / From: AA313069 		$729.04 1
14547 LR017774
MOTOR - SEAT BACK RECLINING
With Power Rear Seat Recliner / LH / From: AA313069 		$729.04 1
