Name: Brake Booster ((V) FROMAA000001)
Rating: 4.3 (1 reviews)

View All

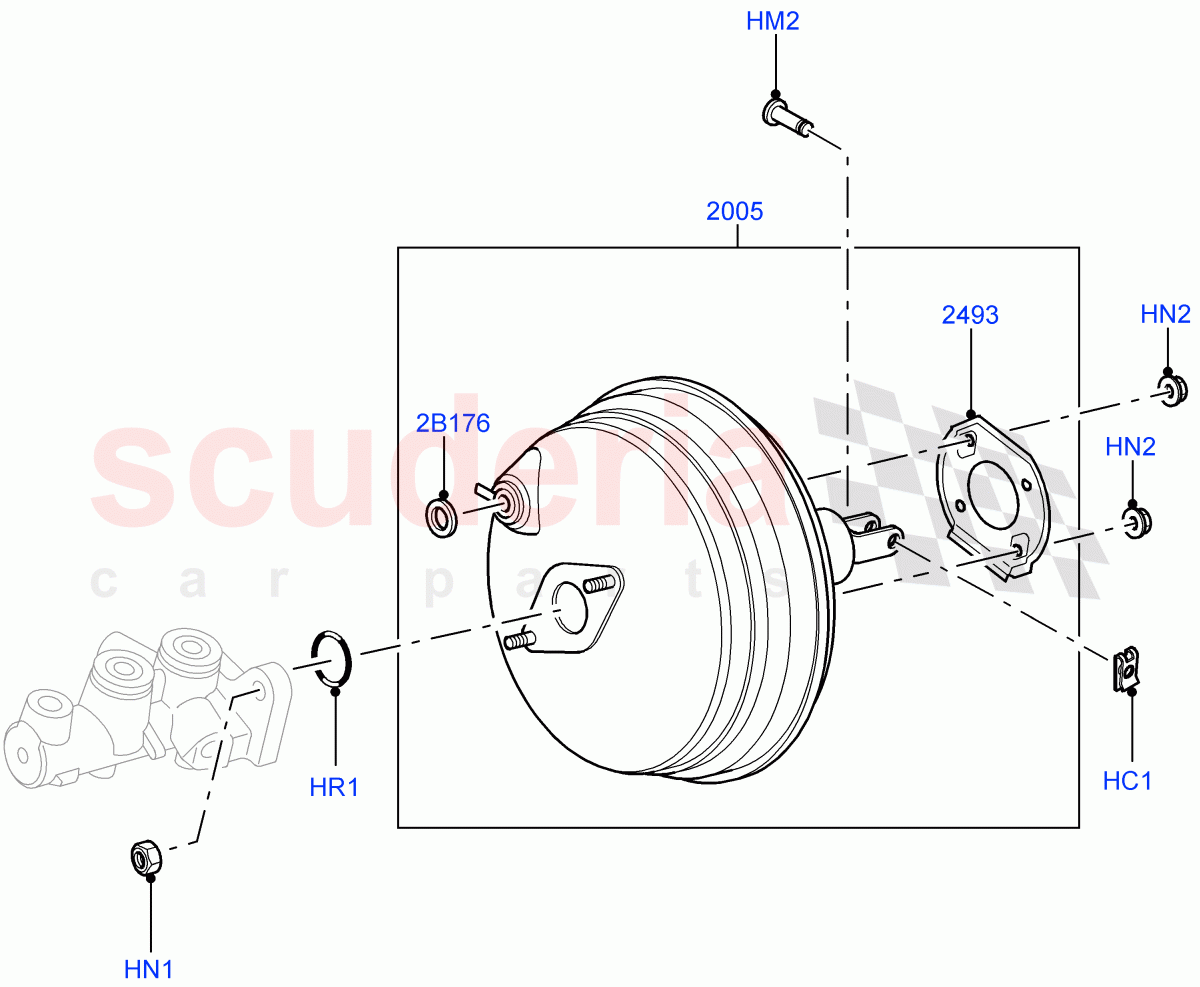

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SYT000010	CLEVIS PIN	$3.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012898	NUT - FLANGED	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	$0.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR012972	O-RING	$4.18	To Order

Photo	Part No	Description	Price (each)	Stock
	SZB000010	GASKET	$3.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012903	GROMMET - BRAKE BOOSTER	$6.26	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	SYV000010	CLIP - RETAINING	SYV000010 CLIP - RETAINING Retainer / From: AA000001 / To: CA385229	$53.48	1
HC1	LR038046	CLIP - RETAINING	LR038046 CLIP - RETAINING Retainer / From: CA385230	$1.40	1
HM2	SYT000010	CLEVIS PIN	SYT000010 CLEVIS PIN Pin / From: AA000001	$3.73	1
HN1	LR012898	NUT - FLANGED	LR012898 NUT - FLANGED M8 / From: AA000001	$1.97	2
HN2	FX108046	NUT - LOCKING IN STOCK	FX108046 NUT - LOCKING HEX Flange, M8 / From: AA000001 IN STOCK	$0.40	2
HR1	LR012972	O-RING	LR012972 O-RING Brake Master Cylinder / From: AA000001	$4.18	1
2B176	LR012903	GROMMET - BRAKE BOOSTER	LR012903 GROMMET - BRAKE BOOSTER Brake Vacuum Booster / From: AA000001	$6.26	1
2005	LR012899	BOOSTER - BRAKE	LR012899 BOOSTER - BRAKE LHD / From: AA000001	$842.95	1
2005	LR019599	BOOSTER - BRAKE	LR019599 BOOSTER - BRAKE RHD / From: AA000001	$527.87	1
2493	SZB000010	GASKET	SZB000010 GASKET From: AA000001	$3.82	1

Brake Booster ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]
