Electrical Wiring - Body And Rear (With B6 Level Armouring) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Electrical Wiring - Body And Rear (With B6 Level Armouring) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
YWH500010 SCREW $4.25 To Order
Photo Part No Description Price (each) Stock
YTH500060 LINK $107.88 To Order
YTH500070 LINK $107.88 To Order
Photo Part No Description Price (each) Stock
YTH500080 LINK $107.88 To Order
YTH500090 LINK $107.88 To Order
Photo Part No Description Price (each) Stock
YTH500100 LINK $279.51 To Order
Photo Part No Description Price (each) Stock
YQE500400 HOLDER - FUSE $28.16 To Order
Photo Part No Description Price (each) Stock
YWB500240 RELAY $642.33 To Order
View All

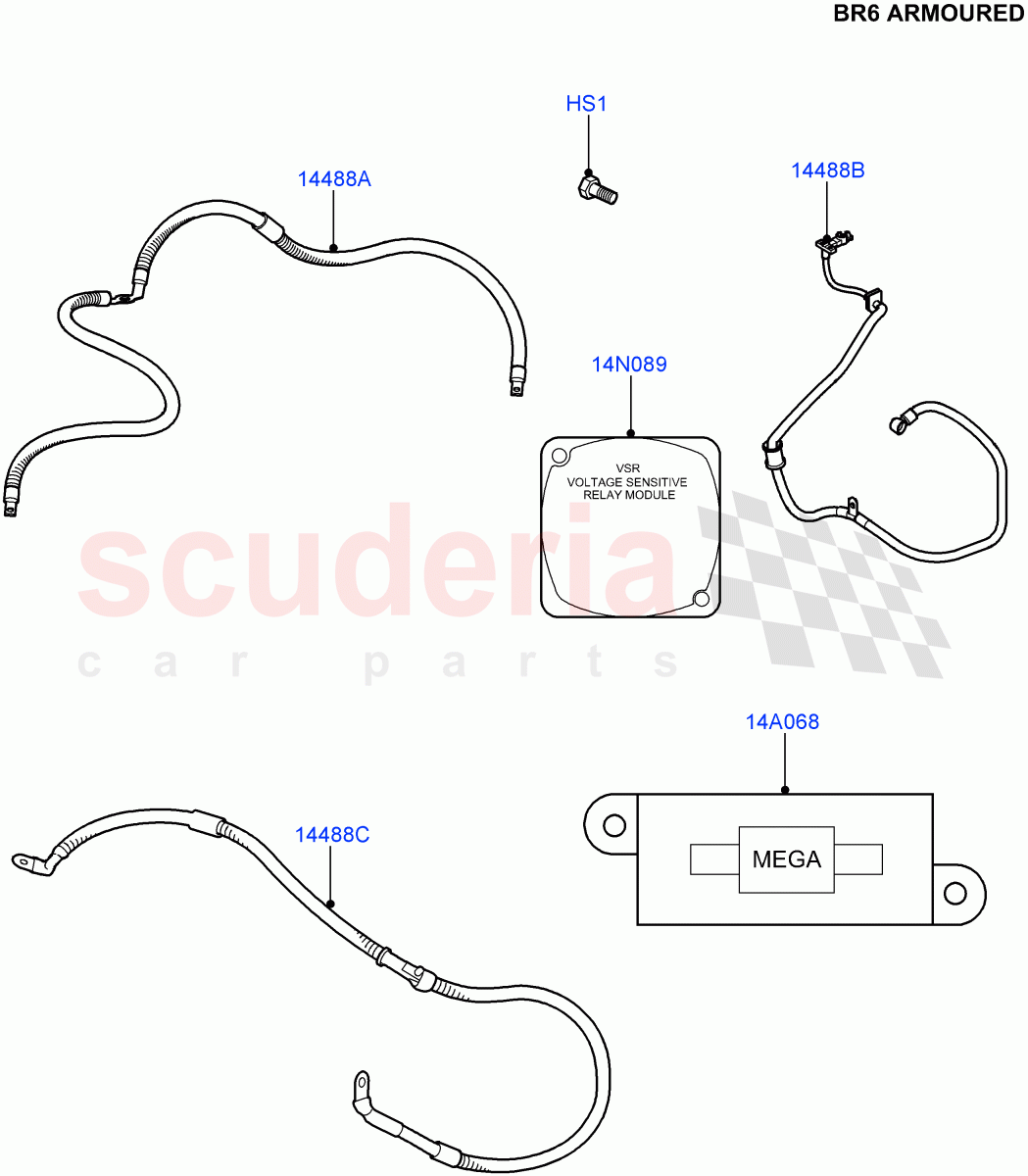

Electrical Wiring - Body And Rear (With B6 Level Armouring) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 YWH500010
SCREW
M5 x 40MM / From: AA000001 		$4.25 -
14A068 YQE500400
HOLDER - FUSE
Mega Fusebox / From: AA000001 		$28.16 1
14N089 YWB500240
RELAY
Voltage Sensitive / From: AA000001 		$642.33 1
14488A YTH500060
LINK
RHD / Jump Start Post To VSR / From: AA000001 		$107.88 1
14488A YTH500070
LINK
LHD / Jump Start Post To VSR / From: AA000001 		$107.88 1
14488B YTH500080
LINK
RHD / VSR To Megafuse Box / From: AA000001 		$107.88 1
14488B YTH500090
LINK
LHD / VSR To Megafuse Box / From: AA000001 		$107.88 1
14488C YTH500100
LINK
Megafuse Box To Rear Auxiliary Battery / From: AA000001 		$279.51 1
