Name: Timing Gear (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

View All

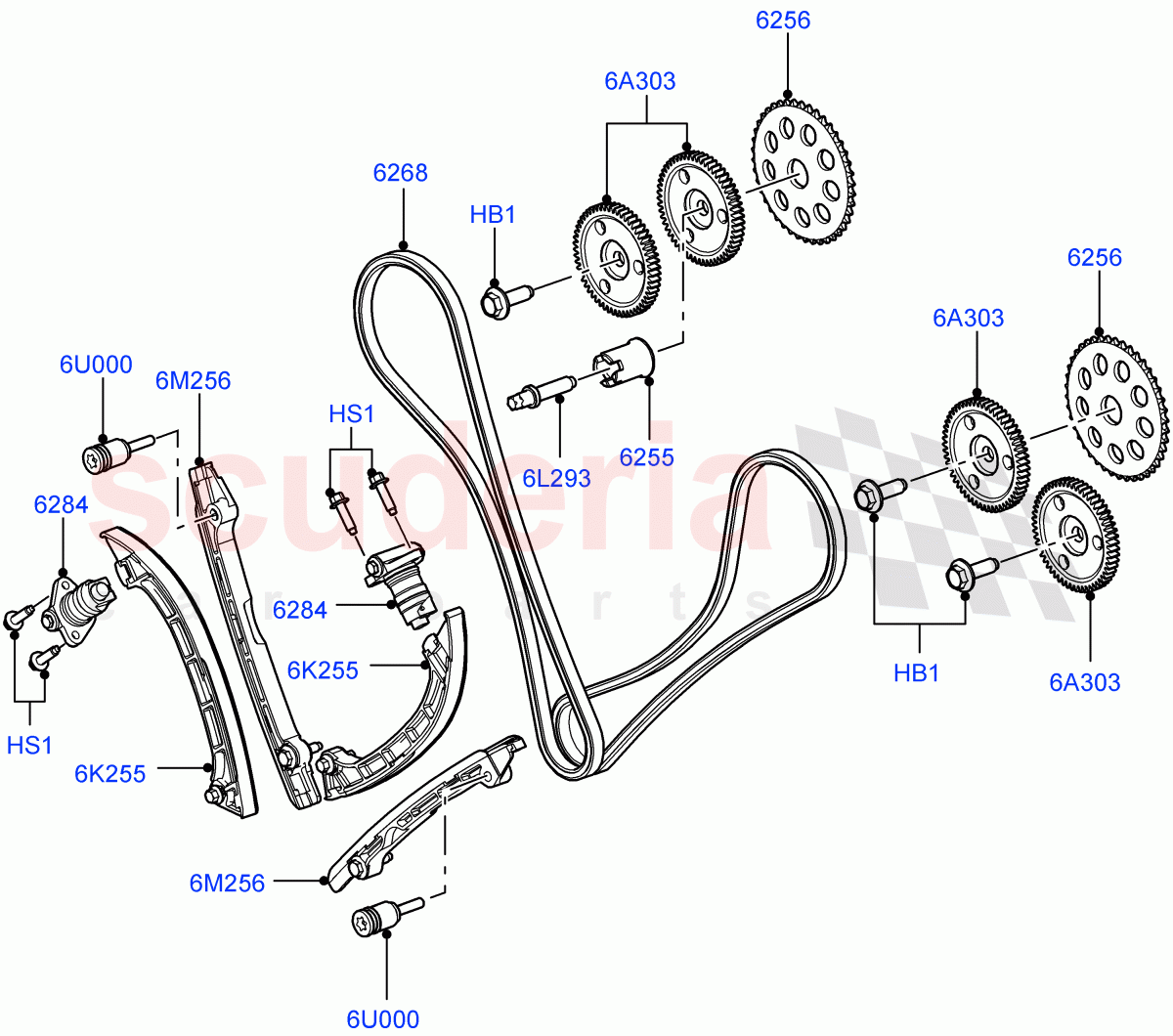

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR068165	BOLT	$12.76	To Order

Photo	Part No	Description	Price (each)	Stock
	4467593	BOLT - HEX.HEAD	$0.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007096	GEAR - DRIVE	$43.22	To Order

Photo	Part No	Description	Price (each)	Stock
	1418837	SPROCKET - CAMSHAFT	$49.50	To Order

Photo	Part No	Description	Price (each)	Stock
	1418833	CHAIN - TIMING	$94.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002440	TENSIONER - TIMING CHAIN	$222.34	To Order

Photo	Part No	Description	Price (each)	Stock
	1418836	ARM - TIMING CHAIN TENSIONER	$63.07	To Order

Photo	Part No	Description	Price (each)	Stock
	1418844	BOLT - HEX.HEAD	$4.55	To Order

Photo	Part No	Description	Price (each)	Stock
	1418835	CHAIN - TIMING - GUIDE	$58.57	To Order

Photo	Part No	Description	Price (each)	Stock
	1418838	BOLT - SPECIAL	$31.22	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR068165	BOLT	LR068165 BOLT M12 x 1.5 x 35MM / From: AA000001	$12.76	3
HS1	4467593	BOLT - HEX.HEAD	4467593 BOLT - HEX.HEAD Hexagonal Head, M6 X 20MM / From: AA000001	$0.71	4
6A303	1418840	GEAR - CAMSHAFT DRIVE	1418840 GEAR - CAMSHAFT DRIVE From: AA000001	$360.40	4
6A303	LR022962	GEAR - CAMSHAFT DRIVE	LR022962 GEAR - CAMSHAFT DRIVE Camshaft / From: BA000001	$86.36	4
6K255	1418836	ARM - TIMING CHAIN TENSIONER	1418836 ARM - TIMING CHAIN TENSIONER From: AA000001	$63.07	2
6L293	1418844	BOLT - HEX.HEAD	1418844 BOLT - HEX.HEAD From: AA000001	$4.55	1
6M256	1418835	CHAIN - TIMING - GUIDE	1418835 CHAIN - TIMING - GUIDE From: AA000001	$58.57	2
6U000	1418838	BOLT - SPECIAL	1418838 BOLT - SPECIAL M22 / From: AA000001	$31.22	2
6255	LR007096	GEAR - DRIVE	LR007096 GEAR - DRIVE From: AA000001	$43.22	1
6256	1418837	SPROCKET - CAMSHAFT	1418837 SPROCKET - CAMSHAFT From: AA000001	$49.50	2
6268	1418833	CHAIN - TIMING	1418833 CHAIN - TIMING From: AA000001	$94.54	2
6284	LR002440	TENSIONER - TIMING CHAIN	LR002440 TENSIONER - TIMING CHAIN From: AA000001	$222.34	2

Timing Gear (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]
