Starter Motor (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Starter Motor (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB110146 BOLT - HEX.HEAD $1.81 To Order
Photo Part No Description Price (each) Stock
FN110042 NUT $0.80 To Order
Photo Part No Description Price (each) Stock
TYG500102 STUD $2.98 To Order
Photo Part No Description Price (each) Stock
LR017279 STUD $2.25 To Order
Photo Part No Description Price (each) Stock
NAD500280 STARTER MOTOR $527.64 To Order
LR021461 STARTER MOTOR $549.56 To Order
LR032541 STARTER MOTOR $533.33 To Order
Photo Part No Description Price (each) Stock
YQD500430 COVER - STARTER MOTOR TERMINAL $2.59 To Order
Photo Part No Description Price (each) Stock
LR020525 HEAT SHIELD $22.56 To Order
Photo Part No Description Price (each) Stock
LR020517 TUBE - BREATHER $39.10 To Order
Photo Part No Description Price (each) Stock
LR021682 DRIVE - STARTER MOTOR $79.88 To Order
View All

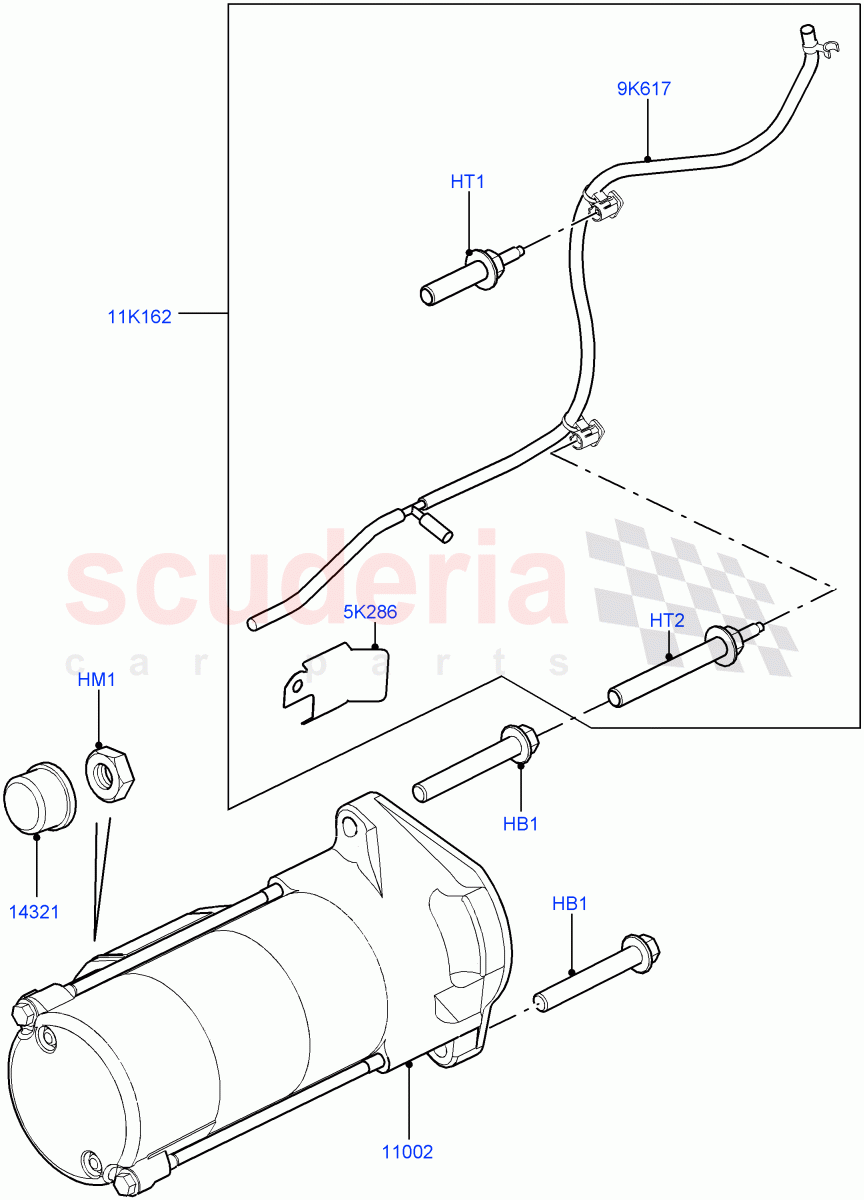

Starter Motor (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB110146
BOLT - HEX.HEAD
Hexagonal Head, M10 x 70MM / From: AA000001 		$1.81 2
HM1 FN110042
NUT
M10, Nut, Positive Battery Cable / From: AA000001 		$0.80 1
HT1 TYG500102
STUD
M6 X 16MM + M10 X 38MM, Stud / From: AA323990 		$2.98 1
HT2 LR017279
STUD
M10 x 75MM, M6 X 16MM / From: AA323990 		$2.25 1
5K286 LR020525
HEAT SHIELD
From: AA323990 		$22.56 1
9K617 LR020517
TUBE - BREATHER
From: AA323990 		$39.10 1
11K162 LR021682
DRIVE - STARTER MOTOR
From: AA323990 		$79.88 1
11002 NAD500280
STARTER MOTOR
From: AA000001 / To: AA323989 		$527.64 1
11002 LR021461
STARTER MOTOR
From: AA323990 / To: CA361496 		$549.56 1
11002 LR032541
STARTER MOTOR
From: CA361497 / To: CA999999 		$533.33 1
14321 YQD500430
COVER - STARTER MOTOR TERMINAL
From: AA000001 		$2.59 1
