Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Fuel Tank & Related Parts (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
WYC000280 CLIP - HOSE $11.91 To Order
Photo Part No Description Price (each) Stock
WYC000080 CLIP - HOSE $4.60 To Order
Photo Part No Description Price (each) Stock
WYF000020 SPACER $3.70 To Order
Photo Part No Description Price (each) Stock
WYQ000010 RIVET - PLASTIC $5.85 IN STOCK
Photo Part No Description Price (each) Stock
RYG501170 SCREW AND WASHER $0.61 To Order
Photo Part No Description Price (each) Stock
9952119 CLAMP $3.67 To Order
Photo Part No Description Price (each) Stock
WFE501040 TANK - FUEL $796.93 To Order
Photo Part No Description Price (each) Stock
202123529 CAP - FUEL TANK FILLER $54.44 To Order
Photo Part No Description Price (each) Stock
LR027539 PIPE - FUEL $198.46 To Order
LR027550 TANK - FUEL $221.89 To Order
WMJ500200 PIPE - FUEL $187.03 To Order
Photo Part No Description Price (each) Stock
WJH500050 HOSE - FILLER PIPE $95.79 To Order
Photo Part No Description Price (each) Stock
WFS500010 STRAP - FUEL TANK $65.99 To Order
WFS500020 STRAP - FUEL TANK $65.99 To Order
Photo Part No Description Price (each) Stock
WGQ500020 GASKET - FUEL TANK COVER $25.18 To Order
Photo Part No Description Price (each) Stock
FWA500230 PAD $6.78 To Order
LR035088 FOAM PAD - ENERGY ABSORBING $6.53 To Order
Photo Part No Description Price (each) Stock
WFK000010 STRIP - RUBBER $3.11 To Order
Photo Part No Description Price (each) Stock
WFK000020 STRIP - RUBBER $3.11 To Order
Photo Part No Description Price (each) Stock
WFP500541 HOSE - VENT $145.56 To Order
LR031820 HOSE - FUEL TANK - VENT $97.08 IN STOCK
Photo Part No Description Price (each) Stock
LR027535 HOSE - FUEL $39.61 To Order
Photo Part No Description Price (each) Stock
WGC000020 COVER - FUEL SENDER $30.18 To Order
Photo Part No Description Price (each) Stock
WGC500081 COVER - FUEL TANK $87.25 To Order
Photo Part No Description Price (each) Stock
WYD000020 GROMMET $3.95 To Order
Photo Part No Description Price (each) Stock
ESR3808 RING - LOCK $71.87 To Order
Photo Part No Description Price (each) Stock
ESR3807 ADAPTOR $8.40 To Order
View All

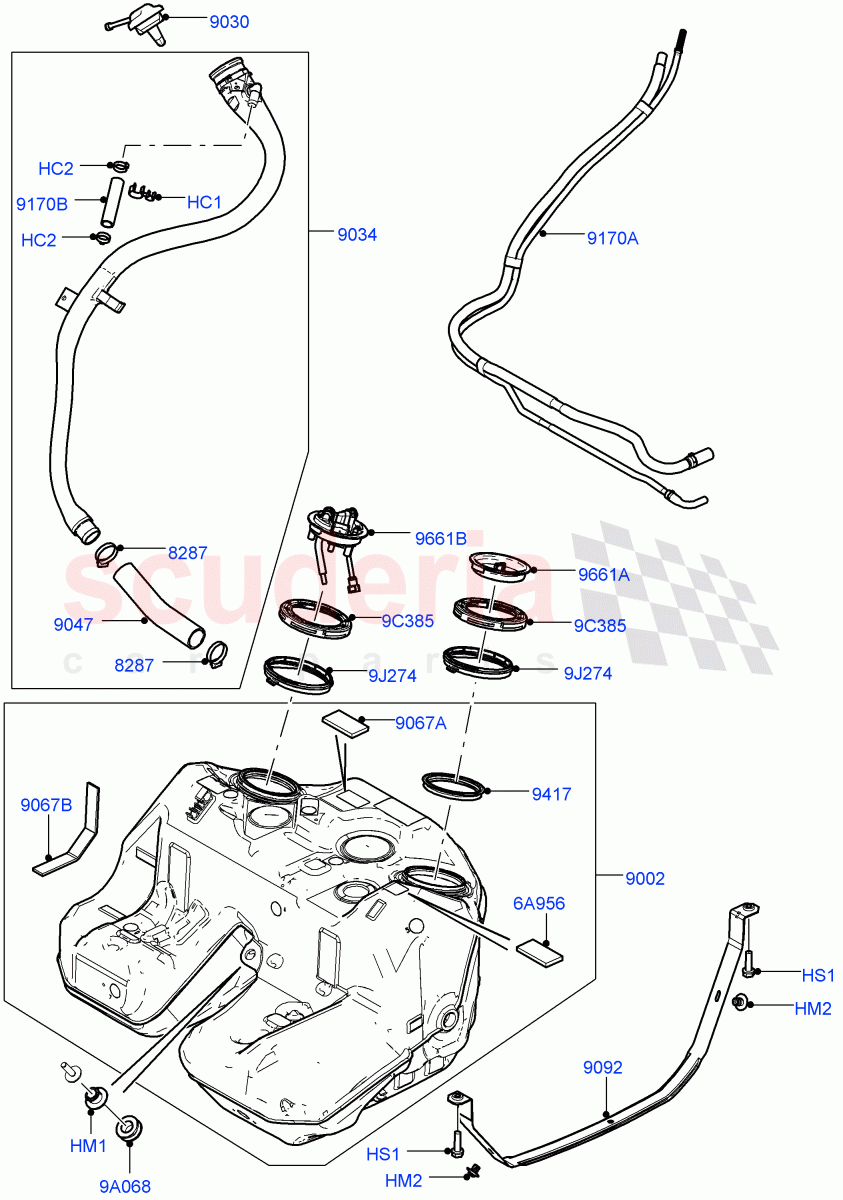

Fuel Tank & Related Parts (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 WYC000280
CLIP - HOSE
Double / From: AA000001 		$11.91 1
HC2 WYC000080
CLIP - HOSE
27MM / From: AA000001 		$4.60 2
HM1 WYF000020
SPACER
Spacer / From: AA000001 		$3.70 1
HM2 WYQ000010
RIVET - PLASTIC
Fuel Tank Strap, Plastic, Rivet Type / From: AA000001
IN STOCK 		$5.85 4
HS1 RYG501170
SCREW AND WASHER
Hexagonal Head, M8 X 30MM / From: AA000001 		$0.61 4
6A956 FWA500230
PAD
Fuel Tank / From: AA000001 / To: CA361333 		$6.78 2
6A956 LR035088
FOAM PAD - ENERGY ABSORBING
Fuel Tank / From: CA361334 		$6.53 2
9A068 WYD000020
GROMMET
Fuel Tank / From: AA000001 		$3.95 1
9C385 ESR3808
RING - LOCK
Fuel Tank Sender / From: AA000001 		$71.87 2
9J274 ESR3807
ADAPTOR
Retaining Ring / From: AA000001 		$8.40 2
8287 9952119
CLAMP
FILLER, For Fuel Tube / From: AA000001 		$3.67 2
9002 WFE501040
TANK - FUEL
From: AA000001 		$796.93 1
9030 202123529
CAP - FUEL TANK FILLER
From: AA000001 		$54.44 1
9034 LR027539
PIPE - FUEL
Fuel Tank Filler Neck - Diesel / From: BA000001 		$198.46 1
9034 LR027550
TANK - FUEL
Fuel Tank Filler Neck - All Nozzles / + Russia / From: AA000001 		$221.89 1
9034 WMJ500200
PIPE - FUEL
Fuel Tank Filler Neck - Diesel / From: AA000001 / To: AA999999 		$187.03 1
9047 WJH500050
HOSE - FILLER PIPE
From: AA000001 		$95.79 1
9067A WFK000010
STRIP - RUBBER
Small / From: AA000001 		$3.11 4
9067B WFK000020
STRIP - RUBBER
Large / From: AA000001 		$3.11 2
9092 WFS500010
STRAP - FUEL TANK
RH / From: AA000001 		$65.99 1
9092 WFS500020
STRAP - FUEL TANK
LH / From: AA000001 		$65.99 1
9170A WFP500541
HOSE - VENT
Lower / From: AA000001 / To: BA350362 		$145.56 1
9170A LR031820
HOSE - FUEL TANK - VENT
Lower / From: BA350363
IN STOCK 		$97.08 1
9170B LR027535
HOSE - FUEL
Upper / From: AA000001 		$39.61 1
9417 WGQ500020
GASKET - FUEL TANK COVER
Fuel Tank Sender / From: AA000001 		$25.18 2
9661A WGC000020
COVER - FUEL SENDER
Fuel Tank / From: AA000001 		$30.18 1
9661B WGC500081
COVER - FUEL TANK
Fuel Tank / From: AA000001 		$87.25 1
