Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Oil Pan/Oil Level Indicator (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1305834 BOLT $2.28 To Order
Photo Part No Description Price (each) Stock
1225745 BOLT AND WASHER - HEX.HEAD $2.96 IN STOCK
Photo Part No Description Price (each) Stock
1419374 BOLT $4.15 To Order
Photo Part No Description Price (each) Stock
1310106 BOLT - HEX.HEAD $3.08 To Order
Photo Part No Description Price (each) Stock
1418982 O-RING $8.00 To Order
Photo Part No Description Price (each) Stock
KYP500360 SCREW $0.79 To Order
Photo Part No Description Price (each) Stock
4467593 BOLT - HEX.HEAD $0.71 To Order
Photo Part No Description Price (each) Stock
1255708 SCREW $9.34 To Order
Photo Part No Description Price (each) Stock
LR002438 GASKET - OIL PAN $51.91 To Order
Photo Part No Description Price (each) Stock
1316114 DOWEL $15.25 To Order
Photo Part No Description Price (each) Stock
1418975 TUBE - OIL PUMP INLET $142.14 To Order
Photo Part No Description Price (each) Stock
LR002459 O-RING $4.03 To Order
Photo Part No Description Price (each) Stock
LR006183 PAN - ENGINE OIL $1,739.93 To Order
Photo Part No Description Price (each) Stock
LR002451 BAFFLE - OIL $41.77 To Order
Photo Part No Description Price (each) Stock
LR073675 PLUG - OIL DRAIN $8.34 To Order
Photo Part No Description Price (each) Stock
LR002466 INDICATOR - OIL LEVEL $67.61 To Order
Photo Part No Description Price (each) Stock
LR002453 TUBE - OIL LEVEL INDICATOR $90.11 To Order
Photo Part No Description Price (each) Stock
LR002437 HOSE - OIL $17.97 To Order
Photo Part No Description Price (each) Stock
1418983 TUBE $90.67 To Order
Photo Part No Description Price (each) Stock
LR003581 TUBE $90.03 To Order
LR020233 TUBE $146.67 To Order
LR023935 TUBE $142.36 To Order
Photo Part No Description Price (each) Stock
1359056 SENDER - OIL TEMPERATURE $66.88 To Order
Photo Part No Description Price (each) Stock
LR006143 TUBE - OIL PUMP INLET $125.12 To Order
Photo Part No Description Price (each) Stock
1418931 PIPE $282.31 To Order
View All

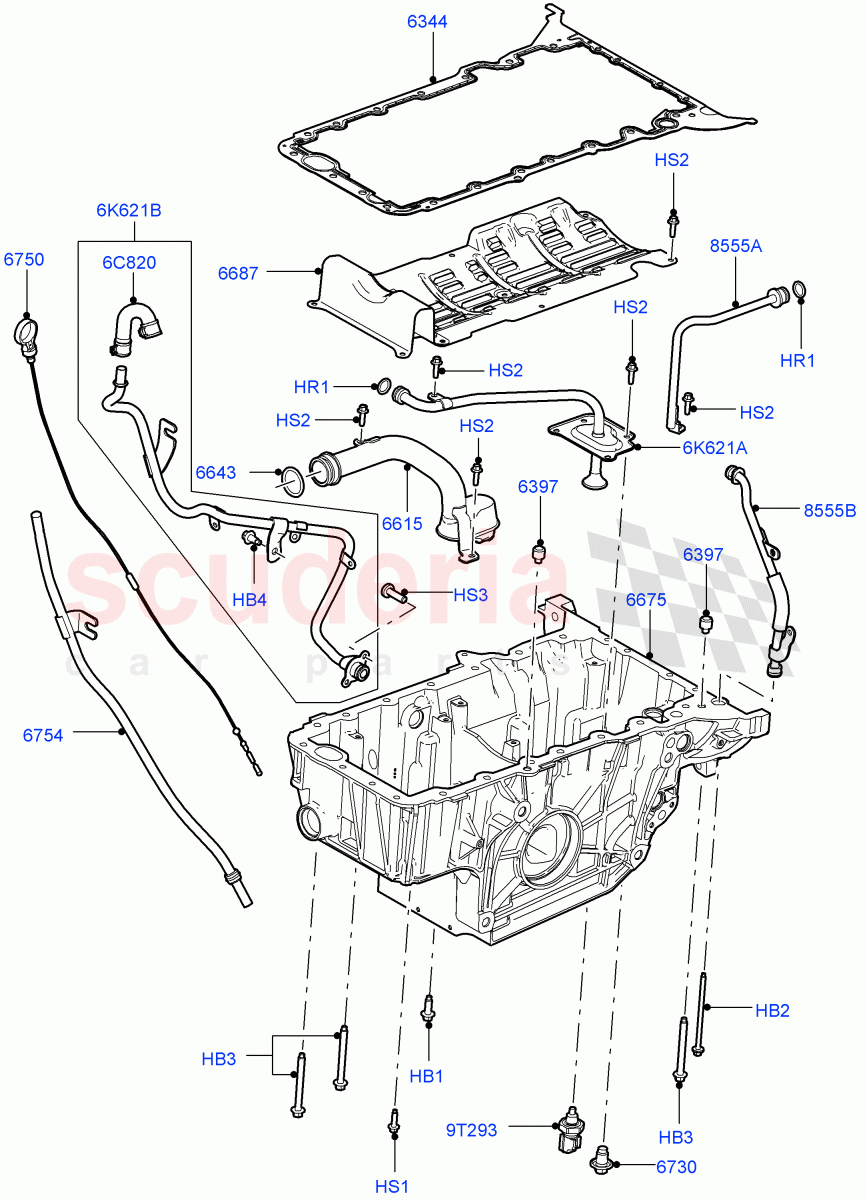

Oil Pan/Oil Level Indicator (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 1305834
BOLT
M8 X 20MM / From: AA000001 		$2.28 12
HB2 1225745
BOLT AND WASHER - HEX.HEAD
Bolt And Washer, M6 X 105MM / From: AA000001
IN STOCK 		$2.96 4
HB3 1419374
BOLT
M8 X 75MM / From: AA000001 		$4.15 3
HB4 1310106
BOLT - HEX.HEAD
M8 X 14MM / From: AA000001 		$3.08 1
HR1 1418982
O-RING
15 X 3MM / From: AA000001 		$8.00 1
HS1 KYP500360
SCREW
M6 X 20MM / From: AA000001 		$0.79 21
HS2 4467593
BOLT - HEX.HEAD
Hexagonal Head, M6 X 20MM / From: AA000001 		$0.71 3
HS3 1255708
SCREW
M6 X 20MM, Scavenger Pipe / From: AA000001 		$9.34 2
6C820 LR002437
HOSE - OIL
From: AA000001 		$17.97 1
6K621A LR006143
TUBE - OIL PUMP INLET
Oil Pan To Oil Pump / From: AA000001 		$125.12 1
6K621B 1418931
PIPE
Oil Pan To Vacuum Pump / From: AA000001 		$282.31 1
9T293 1359056
SENDER - OIL TEMPERATURE
From: AA000001 		$66.88 1
6344 LR002438
GASKET - OIL PAN
Oil Pan / From: AA000001 		$51.91 1
6397 1316114
DOWEL
From: AA000001 		$15.25 2
6615 1418975
TUBE - OIL PUMP INLET
Oil Pan strainer / From: AA000001 		$142.14 1
6643 LR002459
O-RING
Inlet Tube, Oil Pump / From: AA000001 		$4.03 1
6675 LR006183
PAN - ENGINE OIL
From: AA000001 		$1,739.93 1
6687 LR002451
BAFFLE - OIL
From: AA000001 		$41.77 1
6730 LR073675
PLUG - OIL DRAIN
Head Size: 13mm, Includes Seal, M14 X 1.5 / From: AA000001 		$8.34 2
6750 LR002466
INDICATOR - OIL LEVEL
From: AA000001 		$67.61 1
6754 LR002453
TUBE - OIL LEVEL INDICATOR
From: AA000001 		$90.11 1
8555A 1418983
TUBE
Crankcase Ventilation, Includes O-Ring, Lower / From: AA000001 		$90.67 1
8555B LR003581
TUBE
Includes O-Ring, Oil - Drain, Upper / From: AA000001 / To: AA313196 		$90.03 1
8555B LR020233
TUBE
Includes O-Ring, Upper / From: AA313197 / To: BA336414 		$146.67 1
8555B LR023935
TUBE
Includes O-Ring, Upper / From: BA336415 		$142.36 1
