Exhaust Gas Recirculation (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Exhaust Gas Recirculation (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1316028 BOLT $1.31 To Order
Photo Part No Description Price (each) Stock
LR004123 BOLT $3.51 To Order
Photo Part No Description Price (each) Stock
4115041 BOLT $0.49 To Order
Photo Part No Description Price (each) Stock
LR003898 RING - SEALING $3.88 To Order
Photo Part No Description Price (each) Stock
RYP500960 SCREW $0.57 To Order
Photo Part No Description Price (each) Stock
LR006115 THERMOSTAT - EGR $21.58 To Order
Photo Part No Description Price (each) Stock
1418926 SHIELD $24.72 To Order
Photo Part No Description Price (each) Stock
LR004529 TUBE - EGR VALVE TO INLET MANIFOLD $98.88 To Order
Photo Part No Description Price (each) Stock
1418949 BRACKET $4.66 To Order
Photo Part No Description Price (each) Stock
LR018321 VALVE - EXHAUST GAS RECIRCULATION $513.38 To Order
Photo Part No Description Price (each) Stock
LR018322 VALVE - EXHAUST GAS RECIRCULATION $473.85 To Order
Photo Part No Description Price (each) Stock
LR003831 GASKET $5.06 To Order
Photo Part No Description Price (each) Stock
LR004250 GASKET $15.82 To Order
Photo Part No Description Price (each) Stock
LR003828 GASKET $35.24 To Order
Photo Part No Description Price (each) Stock
LR003858 COOLER - EGR $566.04 To Order
Photo Part No Description Price (each) Stock
LR003857 COOLER - EGR $567.88 To Order
Photo Part No Description Price (each) Stock
LR006966 TUBE - EXHAUST GAS RECIRCULATION $91.74 To Order
Photo Part No Description Price (each) Stock
LR006965 TUBE - EXHAUST GAS RECIRCULATION $91.74 To Order
View All

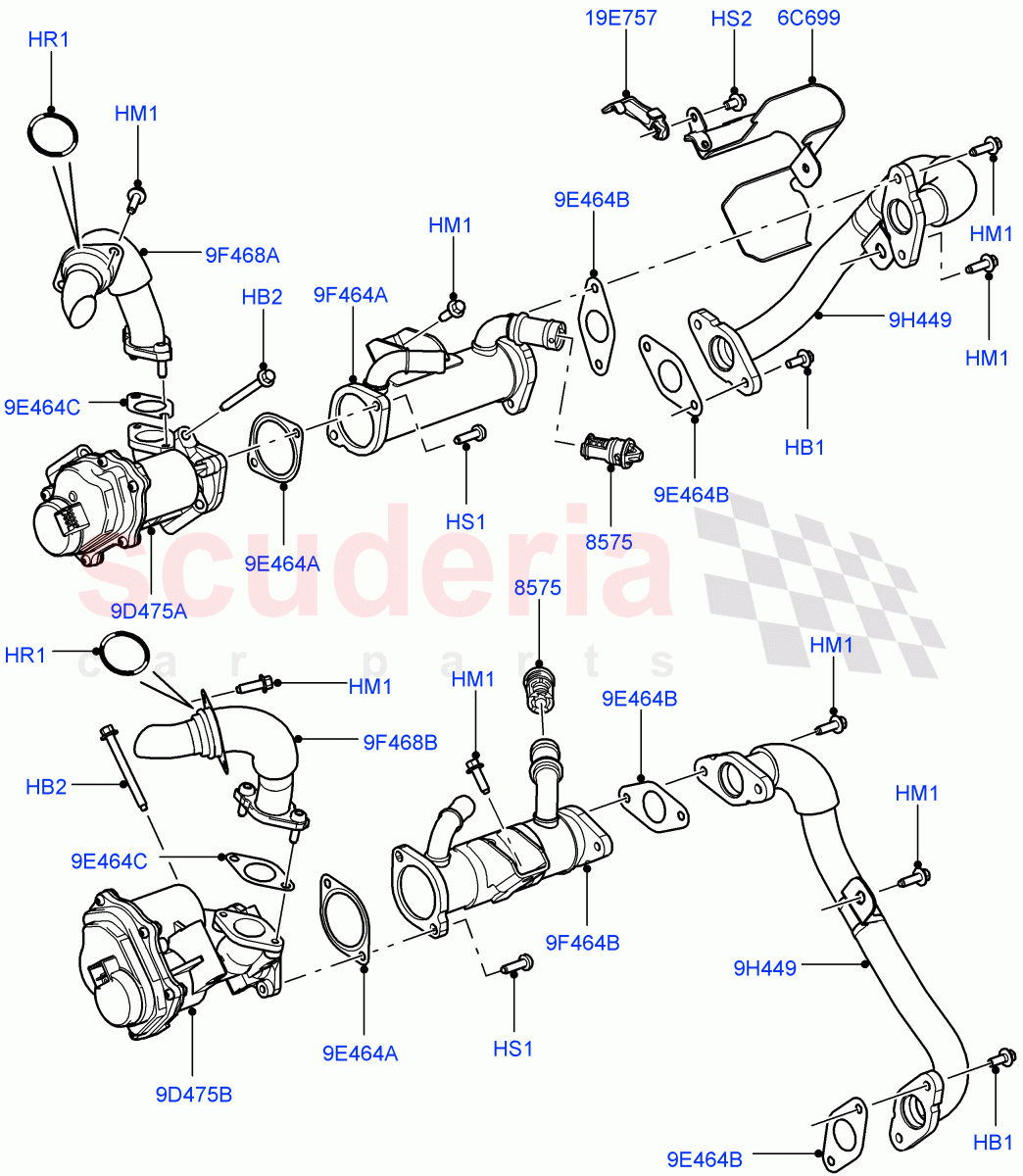

Exhaust Gas Recirculation (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 1316028
BOLT
M6 X 16MM / From: AA000001 		$1.31 4
HB2 LR004123
BOLT
4 Per Package, M6 x 60MM / From: AA000001 		$3.51 6
HM1 4115041
BOLT
M6 X 18.5 / From: AA000001 		$0.49 16
HR1 LR003898
RING - SEALING 		$3.88 1
HS1 RYP500960
SCREW
M6 X 16MM, Torx / From: AA000001 		$0.57 4
6C699 1418926
SHIELD
EGR Valve, Inlet Pipe / From: AA000001 		$24.72 1
9D475A LR018321
VALVE - EXHAUST GAS RECIRCULATION
RH / From: AA000001 		$513.38 1
9D475B LR018322
VALVE - EXHAUST GAS RECIRCULATION
LH / From: AA000001 		$473.85 1
9E464A LR003831
GASKET
EGR Cooler, EGR Valve / From: AA000001 		$5.06 2
9E464B LR004250
GASKET
EGR Cooler, Inlet Pipe / From: AA000001 		$15.82 4
9E464C LR003828
GASKET
EGR Valve, Outlet pipe / From: AA000001 		$35.24 1
9F464A LR003858
COOLER - EGR
RH / From: AA000001 		$566.04 1
9F464B LR003857
COOLER - EGR
LH / From: AA000001 		$567.88 1
9F468A LR006966
TUBE - EXHAUST GAS RECIRCULATION
RH / From: AA000001 		$91.74 1
9F468B LR006965
TUBE - EXHAUST GAS RECIRCULATION
LH / From: AA000001 		$91.74 1
9H449 LR004529
TUBE - EGR VALVE TO INLET MANIFOLD
From: AA000001 		$98.88 2
19E757 1418949
BRACKET
Heat Shield / From: AA000001 		$4.66 1
8575 LR006115
THERMOSTAT - EGR
EGR Cooler / From: AA000001 		$21.58 2
