Name: Radiator/Coolant Overflow Container (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)
Rating: 4.0 (1 reviews)

Radiator/Coolant Overflow Container (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Radiator/Coolant Overflow Container (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

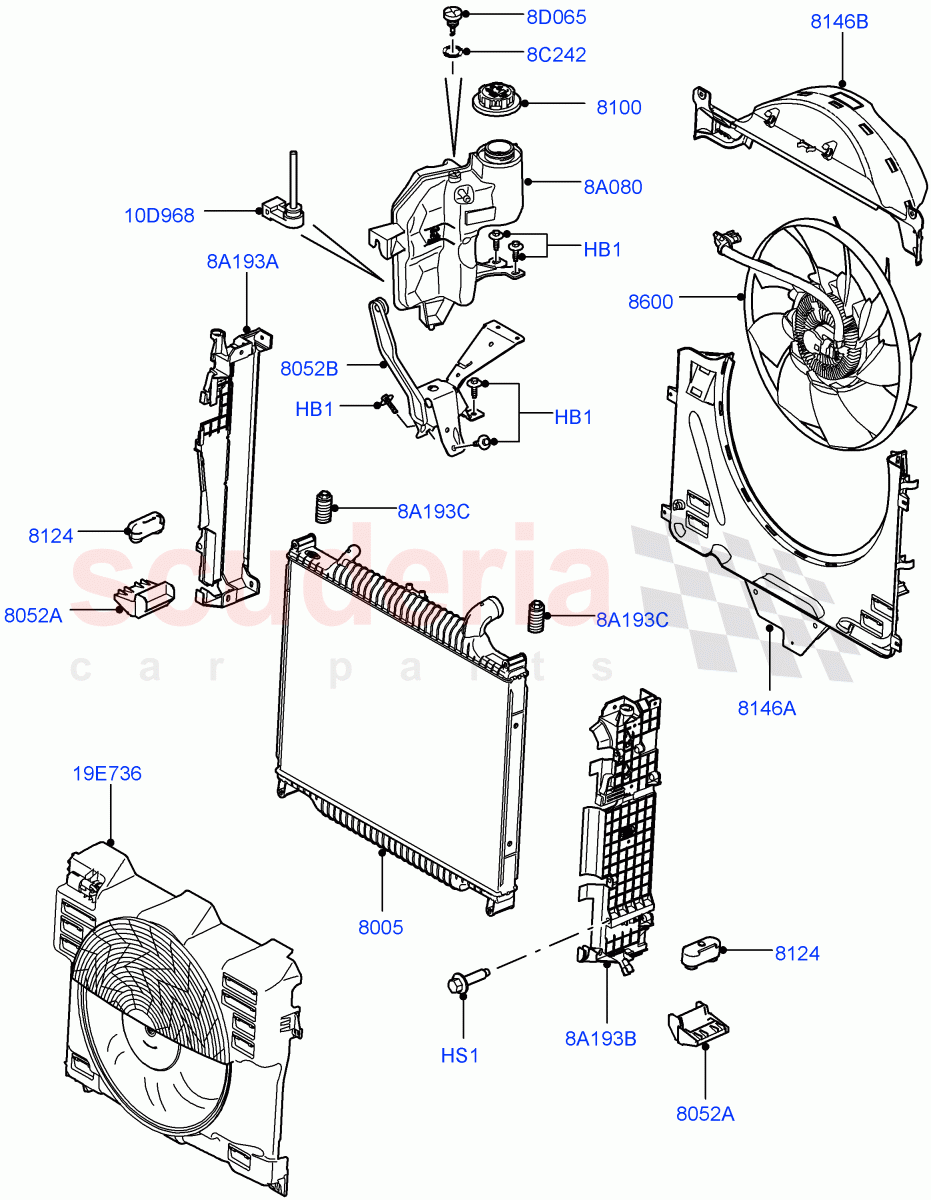

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	PYP500040	SCREW AND WASHER	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018708	SCREW	$1.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	PCC500300	RADIATOR	$683.17	To Order

Photo	Part No	Description	Price (each)	Stock
	PCD500030	CAP - OVERFLOW CONTAINER	$22.47	To Order

Photo	Part No	Description	Price (each)	Stock
	PCG000010	MOUNTING - RUBBER	$15.15	To Order

Photo	Part No	Description	Price (each)	Stock
	PGG500360	FAN	$673.22	To Order
	LR025234	FAN	$705.70	To Order

Photo	Part No	Description	Price (each)	Stock
	PCU000070	BRACKET - RADIATOR	$5.54	To Order

Photo	Part No	Description	Price (each)	Stock
	PCU500190	BRACKET - RESERVOIR SUPPORT	$80.96	To Order

Photo	Part No	Description	Price (each)	Stock
	PGK500311	FAN	$176.24	To Order

Photo	Part No	Description	Price (each)	Stock
	PGK500301	FAN	$79.94	To Order

Photo	Part No	Description	Price (each)	Stock
	PCF500120	TANK - RADIATOR OVERFLOW	$49.02	To Order
	LR023080	TANK - RADIATOR OVERFLOW	$85.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007315	SEAL	$2.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR007314	VALVE - BLEEDER SCREW	$4.78	To Order
	LR055301	VALVE - BLEEDER SCREW	$9.04	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	PCJ500030	SENSOR - COOLANT LEVEL	$25.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011455	FAN AND MOTOR	$692.78	To Order
	LR020124	FAN AND MOTOR	$1,028.64	To Order

Photo	Part No	Description	Price (each)	Stock
	PCN500130	BRACKET - RADIATOR	$62.54	To Order

Photo	Part No	Description	Price (each)	Stock
	PCN500120	BRACKET - RADIATOR	$62.54	To Order

Photo	Part No	Description	Price (each)	Stock
	PCU000220	BRACKET - RADIATOR UPPER	$18.89	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	PYP500040	SCREW AND WASHER	PYP500040 SCREW AND WASHER M6 X 20MM / From: AA000001	$0.75	5
HS1	LR018708	SCREW IN STOCK	LR018708 SCREW M8 X 20MM / From: AA000001 IN STOCK	$1.05	12
8A080	PCF500120	TANK - RADIATOR OVERFLOW	PCF500120 TANK - RADIATOR OVERFLOW From: AA000001 / To: AA319670	$49.02	1
8A080	LR023080	TANK - RADIATOR OVERFLOW	LR023080 TANK - RADIATOR OVERFLOW From: AA319671	$85.10	1
8A193A	PCN500130	BRACKET - RADIATOR	PCN500130 BRACKET - RADIATOR RH / From: AA000001	$62.54	1
8A193B	PCN500120	BRACKET - RADIATOR	PCN500120 BRACKET - RADIATOR LH / From: AA000001	$62.54	1
8A193C	PCU000220	BRACKET - RADIATOR UPPER	PCU000220 BRACKET - RADIATOR UPPER Upper / From: AA000001	$18.89	2
8C242	LR007315	SEAL IN STOCK	LR007315 SEAL Bleeder Screw / From: AA000001 IN STOCK	$2.25	1
8D065	LR007314	VALVE - BLEEDER SCREW	LR007314 VALVE - BLEEDER SCREW Bleeder Screw / From: AA000001 / To: AA319070	$4.78	1
8D065	LR055301	VALVE - BLEEDER SCREW IN STOCK	LR055301 VALVE - BLEEDER SCREW Bleeder Screw / From: AA319071 IN STOCK	$9.04	1
10D968	PCJ500030	SENSOR - COOLANT LEVEL IN STOCK	PCJ500030 SENSOR - COOLANT LEVEL From: AA000001 IN STOCK	$25.03	1
19E736	LR011455	FAN AND MOTOR	LR011455 FAN AND MOTOR Front / From: AA000001 / To: AA312717	$692.78	1
19E736	LR020124	FAN AND MOTOR	LR020124 FAN AND MOTOR Front / From: AA312718	$1,028.64	1
8005	PCC500300	RADIATOR	PCC500300 RADIATOR From: AA000001	$683.17	1
8052A	PCU000070	BRACKET - RADIATOR	PCU000070 BRACKET - RADIATOR Lower / From: AA000001	$5.54	2
8052B	PCU500190	BRACKET - RESERVOIR SUPPORT	PCU500190 BRACKET - RESERVOIR SUPPORT Expansion Tank / From: AA000001	$80.96	1
8100	PCD500030	CAP - OVERFLOW CONTAINER	PCD500030 CAP - OVERFLOW CONTAINER From: AA000001	$22.47	1
8124	PCG000010	MOUNTING - RUBBER	PCG000010 MOUNTING - RUBBER From: AA000001	$15.15	2
8146A	PGK500311	FAN	PGK500311 FAN Lower / From: AA000001	$176.24	1
8146B	PGK500301	FAN	PGK500301 FAN Upper / From: AA000001	$79.94	1
8600	PGG500360	FAN	PGG500360 FAN Rear / From: AA000001 / To: AA332209	$673.22	1
8600	LR025234	FAN	LR025234 FAN Rear / From: AA332310	$705.70	1

Radiator/Coolant Overflow Container (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Radiator/Coolant Overflow Container (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

Add to Shopping Cart
