Air Cleaner (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Air Cleaner (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
PJS500010 CLIP $0.59 To Order
Photo Part No Description Price (each) Stock
CN100709 CLAMP - HOSE $2.00 To Order
Photo Part No Description Price (each) Stock
CN100909 CLAMP - HOSE $0.84 To Order
Photo Part No Description Price (each) Stock
PJQ500012 MOUNTING - RUBBER $5.32 IN STOCK
Photo Part No Description Price (each) Stock
LKD500030 PLUG - BLANKING $13.10 To Order
Photo Part No Description Price (each) Stock
PYP500070 SCREW $0.80 To Order
Photo Part No Description Price (each) Stock
PHB500240 CLEANER - AIR $91.98 To Order
Photo Part No Description Price (each) Stock
PHE500021 FILTER - AIR CLEANER $60.14 To Order
Photo Part No Description Price (each) Stock
PHF500090 SENSOR $360.34 To Order
Photo Part No Description Price (each) Stock
LR010556 DUCT - AIR $161.55 To Order
Photo Part No Description Price (each) Stock
LR010557 DUCT - AIR $171.69 To Order
LR018731 DUCT - AIR $163.47 To Order
Photo Part No Description Price (each) Stock
LR010553 DUCT - AIR $161.55 To Order
Photo Part No Description Price (each) Stock
LR010554 DUCT - AIR $146.02 To Order
LR018732 DUCT - AIR $194.34 To Order
Photo Part No Description Price (each) Stock
PHD500890 DUCT - AIR $27.43 To Order
Photo Part No Description Price (each) Stock
LR010555 DUCT - AIR $85.82 To Order
View All

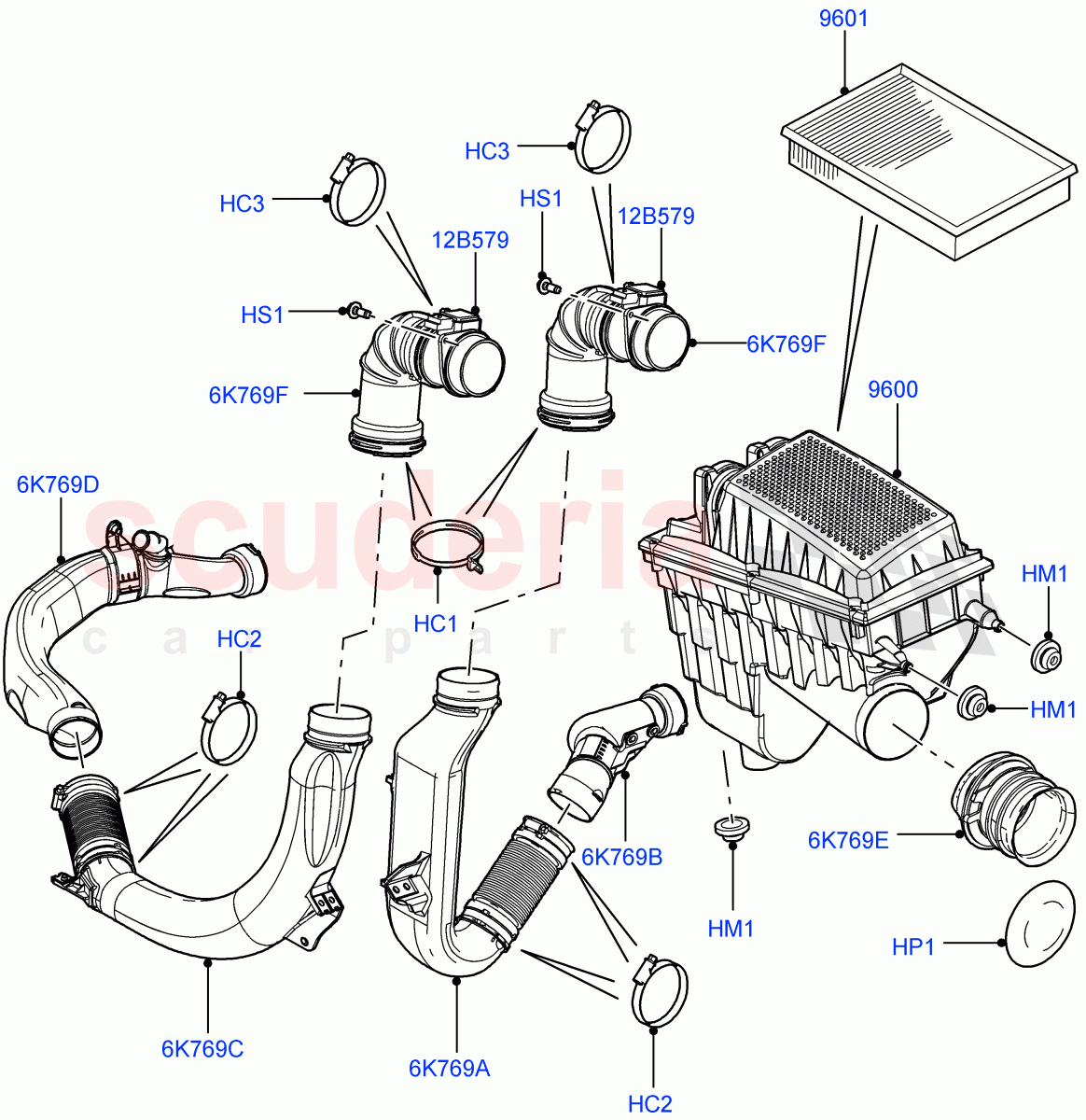

Air Cleaner (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 PJS500010
CLIP
Air Duct / From: AA000001 		$0.59 4
HC2 CN100709
CLAMP - HOSE
Worm Type / From: AA000001 		$2.00 2
HC3 CN100909
CLAMP - HOSE
Worm Type / From: AA000001 		$0.84 2
HM1 PJQ500012
MOUNTING - RUBBER
Mounting Rubber / From: AA000001
IN STOCK 		$5.32 2
HP1 LKD500030
PLUG - BLANKING
Blanking / From: AA000001 		$13.10 1
HS1 PYP500070
SCREW
6 x 16MM, Hexagonal Head / From: AA000001 		$0.80 8
6K769A LR010556
DUCT - AIR
LH Upper / From: AA000001 		$161.55 1
6K769B LR010557
DUCT - AIR
LH Lower / From: AA000001 / To: AA313718 		$171.69 1
6K769B LR018731
DUCT - AIR
LH Lower / From: AA313719 		$163.47 1
6K769C LR010553
DUCT - AIR
RH Upper / From: AA000001 		$161.55 1
6K769D LR010554
DUCT - AIR
RH Lower / From: AA000001 / To: AA313718 		$146.02 1
6K769D LR018732
DUCT - AIR
RH Lower / From: AA313719 		$194.34 1
6K769E PHD500890
DUCT - AIR
From: AA000001 		$27.43 1
6K769F LR010555
DUCT - AIR
Elbow Connector / From: AA000001 		$85.82 2
12B579 PHF500090
SENSOR
Mass Air Flow Sensor / From: AA000001 		$360.34 2
9600 PHB500240
CLEANER - AIR
Housing Assy / From: AA000001 		$91.98 1
9601 PHE500021
FILTER - AIR CLEANER
From: AA000001 		$60.14 1
