Auxiliary Fuel Fired Pre-Heater (Heater Fuel Supply) (With Fuel Fired Heater) ((V) Toha999999)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Auxiliary Fuel Fired Pre-Heater (Heater Fuel Supply) (With Fuel Fired Heater) ((V) TOHA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500250 BOLT $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR036297 FUEL PUMP AND FILTER $217.99 To Order
Photo Part No Description Price (each) Stock
LR043288 WIRE - FUEL BURNING HEATER $31.40 To Order
LR043289 WIRE - FUEL BURNING HEATER $31.40 To Order
Photo Part No Description Price (each) Stock
LR037468 PIPE - FUEL $26.12 To Order
LR038799 PIPE - FUEL $26.12 To Order
LR086523 PIPE - FUEL $46.26 To Order
Photo Part No Description Price (each) Stock
LR092774 TUBE - AUXILIARY HEATER SUPPLY $54.15 To Order
Photo Part No Description Price (each) Stock
LR037457 TUBE - FUEL $69.44 To Order
LR044703 TUBE - FUEL $72.89 To Order
LR052075 TUBE - FUEL $72.26 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR093346 TUBE - FUEL $66.64 IN STOCK
LR044704 TUBE - FUEL $57.37 To Order
LR056211 TUBE - FUEL $64.71 To Order
...and 3 more part variants. See table on right for more details.
View All

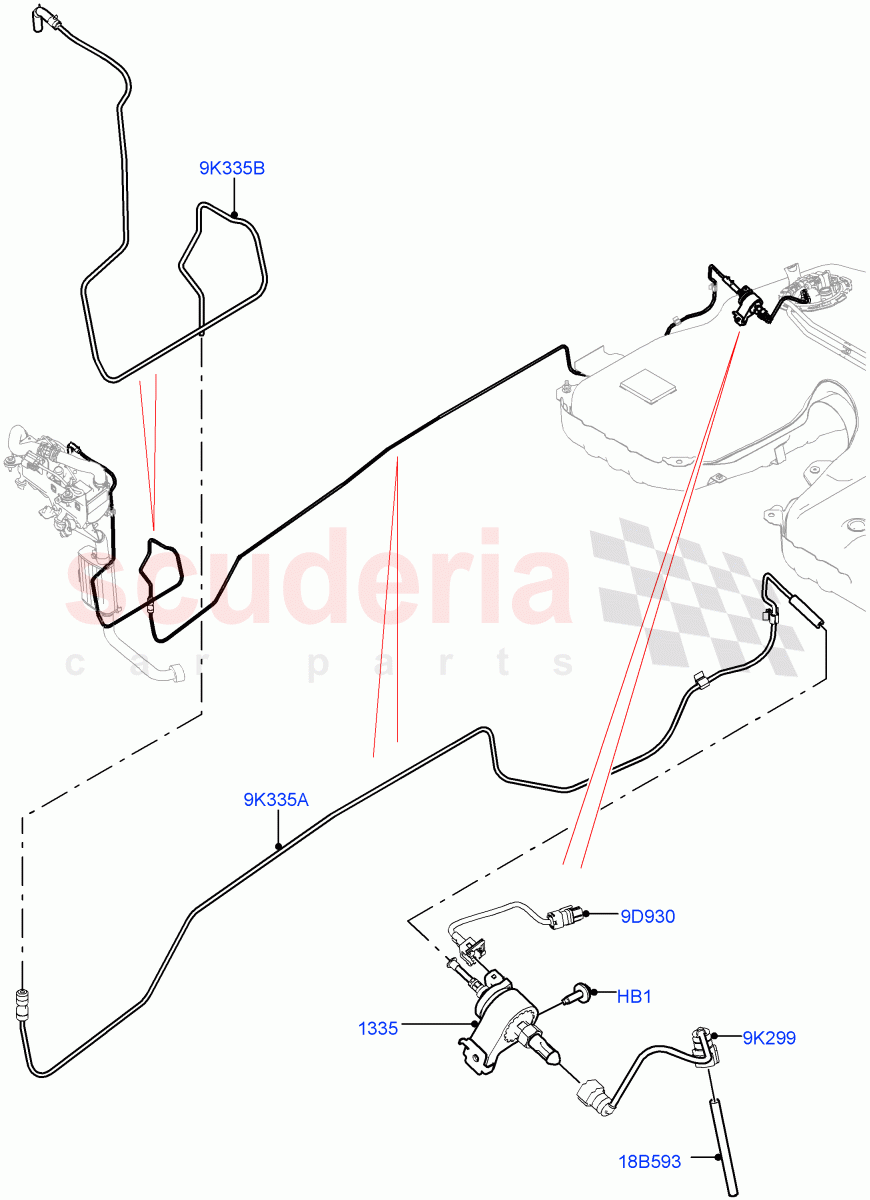

Auxiliary Fuel Fired Pre-Heater (Heater Fuel Supply) (With Fuel Fired Heater) ((V) TOHA999999) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500250
BOLT
M6 x 25MM
IN STOCK 		$1.24 1
9D930 LR043288
WIRE - FUEL BURNING HEATER
5.0L OHC SGDI NA V8 Petrol - AJ133 / Heater Supply Fuel Pump 		$31.40 1
9D930 LR043289
WIRE - FUEL BURNING HEATER
4.4L DOHC DITC V8 Diesel / Heater Supply Fuel Pump 		$31.40 1
9K299 LR037468
PIPE - FUEL
3.0 V6 Diesel / Tank To Pump / To: GA999999 		$26.12 1
9K299 LR038799
PIPE - FUEL
5.0L OHC SGDI SC V8 Petrol - AJ133 / Tank To Pump / To: GA999999 		$26.12 1
9K299 LR086523
PIPE - FUEL
Tank To Pump / From: HA000001 		$46.26 1
9K335A LR037457
TUBE - FUEL
Pump To Heater, Rear / To: DA105107 		$69.44 1
9K335A LR044703
TUBE - FUEL
Standard Wheelbase / Pump To Heater, Rear / From: DA105108 / To: EA357556 		$72.89 1
9K335A LR052075
TUBE - FUEL
Long Wheelbase / Pump To Heater, Rear / From: EA000001 		$72.26 1
9K335A LR057990
TUBE - FUEL
Standard Wheelbase / Pump To Heater, Rear / From: EA357557 		$65.62 1
9K335B LR093346
TUBE - FUEL
Front, Pump To Heater / To: DA105107
IN STOCK 		$66.64 1
9K335B LR044704
TUBE - FUEL
Front, Pump To Heater / From: DA105108 / To: EA155135 		$57.37 1
9K335B LR056211
TUBE - FUEL
Front, Pump To Heater / From: EA155136 / To: EA178741 		$64.71 1
9K335B LR063687
TUBE - FUEL
Front, Pump To Heater / From: EA178742 / To: EA189261 		$62.83 1
9K335B LR068868
TUBE - FUEL
Front, Pump To Heater / From: EA189262 / To: GA310254 		$61.26 1
9K335B LR093346
TUBE - FUEL
Front, Pump To Heater / From: GA310255
IN STOCK 		$66.64 1
18B593 LR092774
TUBE - AUXILIARY HEATER SUPPLY
From: HA000001 		$54.15 1
1335 LR036297
FUEL PUMP AND FILTER 		$217.99 1
