Find Your Part

View All

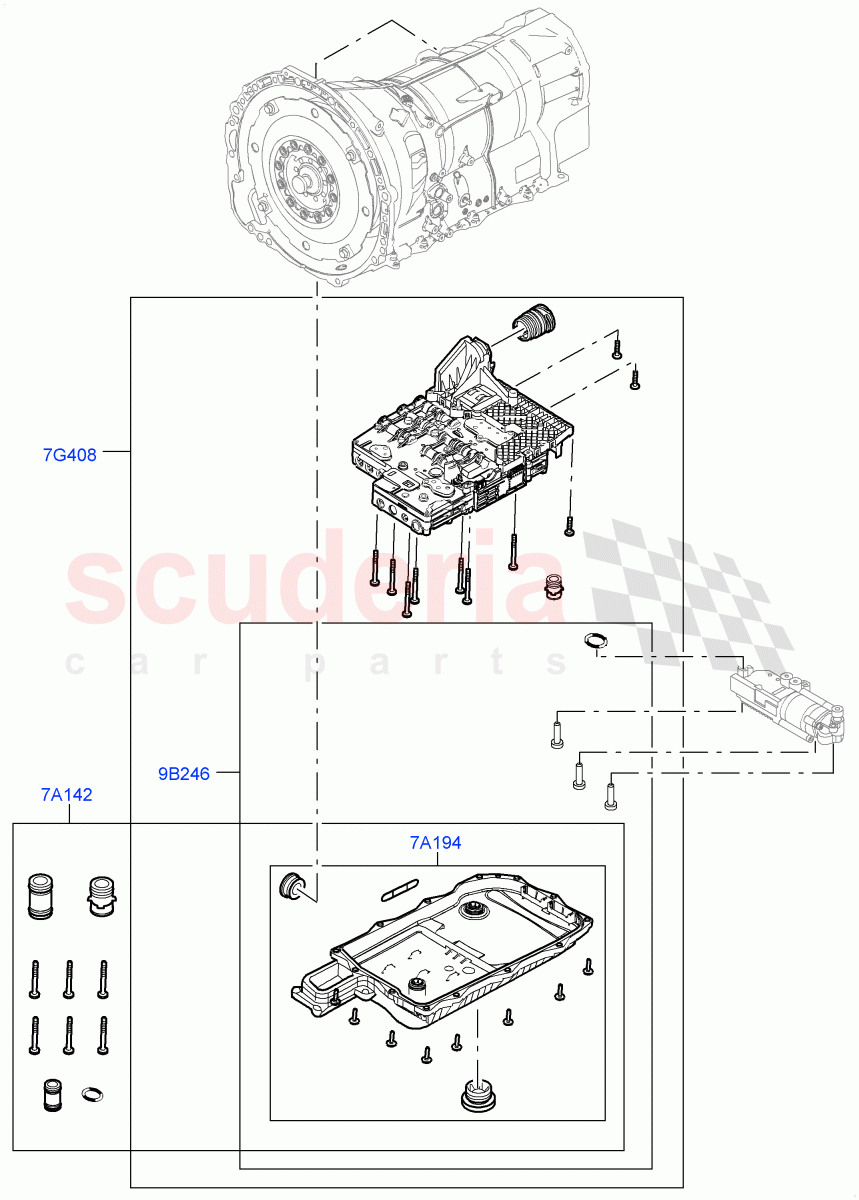

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR146277	KIT - MECHATRONIC SEALING	$660.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114012	PAN - TRANSMISSION OIL	$381.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114014	VALVE - TRANSMISSION CONTROL	$3,016.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114021	RING - SEALING	$267.71	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
7A142	LR146277	KIT - MECHATRONIC SEALING	LR146277 KIT - MECHATRONIC SEALING Kit Includes Oil Pan, Pressure Pipe Adaptor, Guide Sleeve Plug, Intake Manifold, O-ring Oil Vol Accu & Screws, Mechatronic Sealing / From: JA000001	$660.52	1
7A194	LR114012	PAN - TRANSMISSION OIL	LR114012 PAN - TRANSMISSION OIL Includes Oil Filter, Includes Sealing Gasket / From: JA000001	$381.14	1
7G408	LR114014	VALVE - TRANSMISSION CONTROL	LR114014 VALVE - TRANSMISSION CONTROL Includes Oil Pan, Supplied Without Oil Pump / From: JA000001	$3,016.18	1
9B246	LR114021	RING - SEALING	LR114021 RING - SEALING Includes Oil Pan, Supplied Without Oil Pump / From: JA000001	$267.71	1
