Hybrid Drive Cooling System (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans Zf 8Hp70 Hev 4Wd, 3.0 V6...

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Hybrid Drive Cooling System (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD, 3.0 V6...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT $2.28 IN STOCK
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.23 IN STOCK
Photo Part No Description Price (each) Stock
LR049033 PIPE - MOTOR/GENERATOR COOLING $163.21 To Order
Photo Part No Description Price (each) Stock
LR049029 SEAL - RUBBER $12.01 To Order
View All

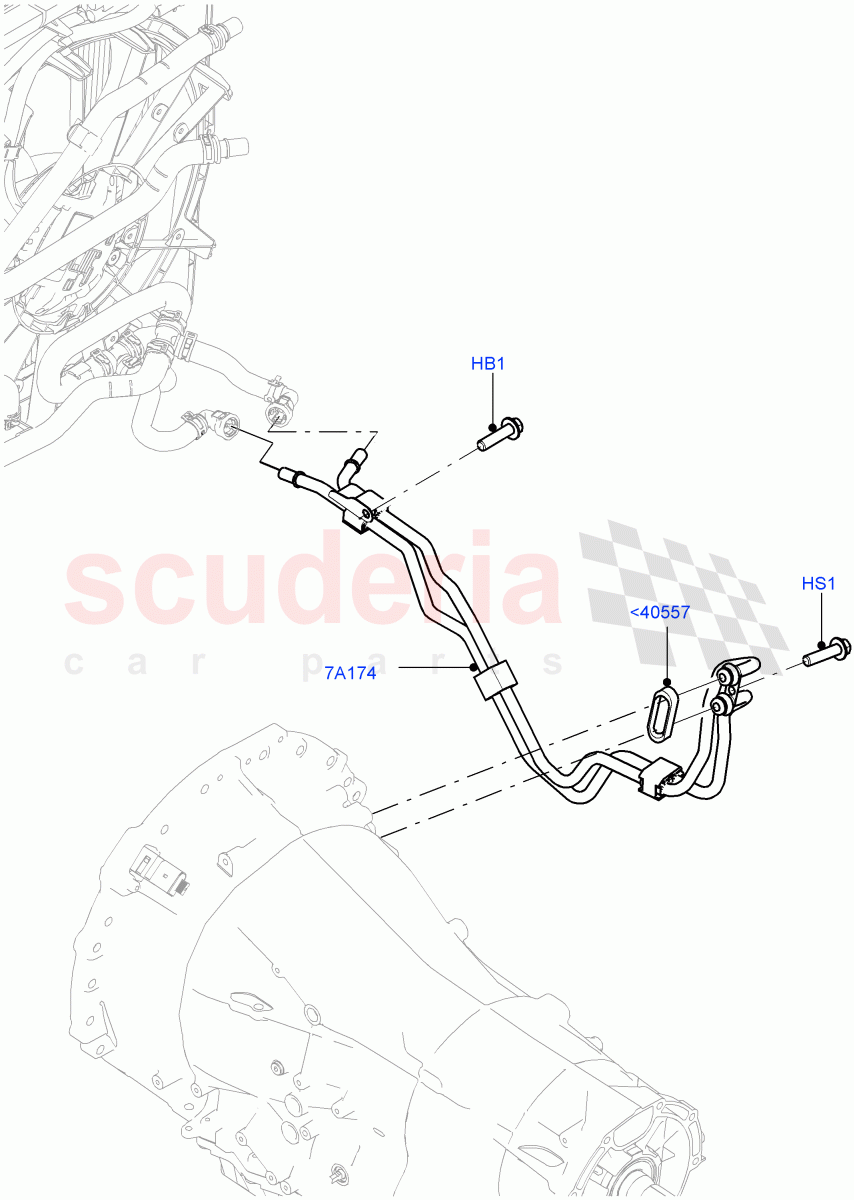

Hybrid Drive Cooling System (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD, 3.0 V6 Diesel Electric Hybrid Eng, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMFA000001) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<40557 LR049029
SEAL - RUBBER
From: EA000001 		$12.01 1
HB1 FS108206
BOLT
Hexagonal Head, M8 X 20MM / From: EA000001
IN STOCK 		$2.28 1
HS1 FS106166
SCREW
Hexagonal Head, M6 X 16MM / From: EA000001
IN STOCK 		$1.23 1
7A174 LR049033
PIPE - MOTOR/GENERATOR COOLING
From: EA000001 		$163.21 1
