Name: Oil Pan/Oil Level Indicator (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced)
Rating: 4.2 (1 reviews)

Oil Pan/Oil Level Indicator (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Oil Pan/Oil Level Indicator (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P...

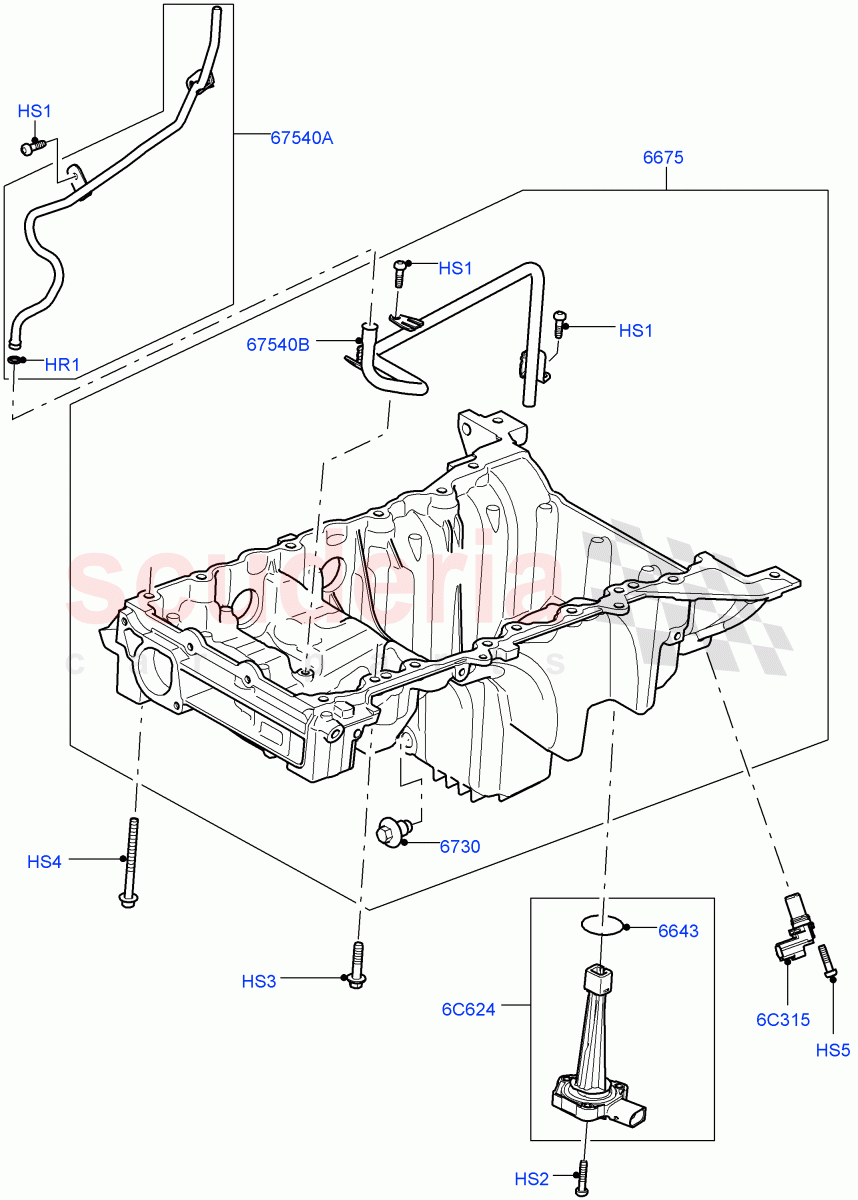

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011206	O-RING	$5.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011267	SCREW	$1.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011271	SCREW	$1.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011700	SCREW	$1.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011274	SCREW	$2.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011270	SCREW	$1.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006867	O-RING	$16.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035934	PAN - ENGINE OIL	$751.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073675	PLUG - OIL DRAIN	$8.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035561	SENSOR - CRANKSHAFT POSITION - CPS	$116.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012640	SENSOR - OIL LEVEL	$89.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010727	TUBE - OIL EXTRACTION	$45.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011312	TUBE - OIL	$50.82	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR011206	O-RING	LR011206 O-RING Tube - Oil Extraction	$5.64	1
HS1	LR011267	SCREW IN STOCK	LR011267 SCREW M6 X 20MM IN STOCK	$1.05	4
HS2	LR011271	SCREW IN STOCK	LR011271 SCREW M6 x 30MM, Sensor - Oil Level IN STOCK	$1.24	3
HS3	LR011700	SCREW IN STOCK	LR011700 SCREW M8 X 35MM, Oil Pan IN STOCK	$1.40	10
HS4	LR011274	SCREW	LR011274 SCREW Oil Pan	$2.60	6
HS5	LR011270	SCREW	LR011270 SCREW 5.0L P AJ133 DOHC CDA S/C Enhanced / M6 x 25MM, To Crankshaft Sensor, Torx	$1.24	1
6C315	LR035561	SENSOR - CRANKSHAFT POSITION - CPS	LR035561 SENSOR - CRANKSHAFT POSITION - CPS	$116.26	1
6C624	LR012640	SENSOR - OIL LEVEL	LR012640 SENSOR - OIL LEVEL	$89.07	1
6643	LR006867	O-RING	LR006867 O-RING Sensor - Oil Level	$16.33	1
6675	LR035934	PAN - ENGINE OIL	LR035934 PAN - ENGINE OIL	$751.66	1
6730	LR073675	PLUG - OIL DRAIN	LR073675 PLUG - OIL DRAIN M14 X 1.5	$8.34	1
67540A	LR010727	TUBE - OIL EXTRACTION	LR010727 TUBE - OIL EXTRACTION Upper	$45.30	1
67540B	LR011312	TUBE - OIL	LR011312 TUBE - OIL Lower	$50.82	1

Oil Pan/Oil Level Indicator (5.0L Ohc Sgdi Sc V8 Petrol - Aj133, 5.0 Petrol Aj133 Dohc Cda, 5.0L P...

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Oil Pan/Oil Level Indicator (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P...

Add to Shopping Cart
