Thermostat/Housing & Related Parts (5.0 Petrol Aj133 Dohc Cda) ((V) Fromja000001, (V) Toja999999)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Thermostat/Housing & Related Parts (5.0 Petrol AJ133 DOHC CDA) ((V) FROMJA000001, (V) TOJA999999)

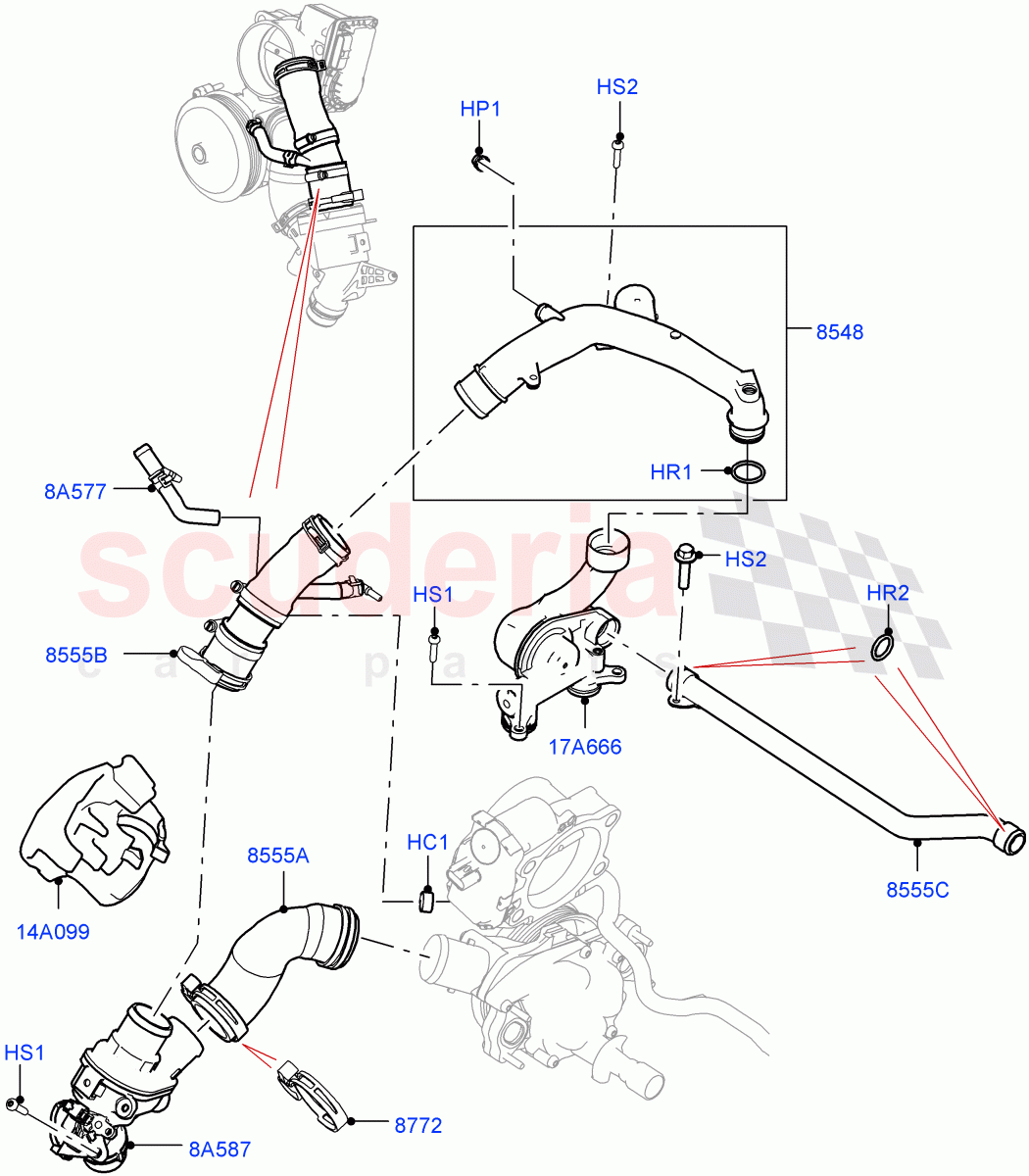

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR011158 CLIP - HOSE $3.18 To Order
Photo Part No Description Price (each) Stock
LR011038 PLUG - BLANKING $5.12 To Order
Photo Part No Description Price (each) Stock
LR100353 O-RING $7.25 To Order
Photo Part No Description Price (each) Stock
LR101805 O-RING $6.53 To Order
Photo Part No Description Price (each) Stock
LR011270 SCREW $1.24 To Order
Photo Part No Description Price (each) Stock
LR044772 SCREW $0.53 To Order
Photo Part No Description Price (each) Stock
LR090630 TUBE - WATER INLET $55.95 IN STOCK
Photo Part No Description Price (each) Stock
LR034109 CLAMP - HOSE $8.48 To Order
Photo Part No Description Price (each) Stock
LR033994 TUBE - WATER OUTLET $22.82 IN STOCK
Photo Part No Description Price (each) Stock
LR049990 TUBE - THERMOSTAT $55.43 To Order
Photo Part No Description Price (each) Stock
LR100354 TUBE - BY-PASS $57.43 To Order
Photo Part No Description Price (each) Stock
LR045239 HOSE - THROTTLE BODY HEATER OUTLET $50.90 To Order
Photo Part No Description Price (each) Stock
LR107347 THERMOSTAT AND HOUSING $120.68 To Order
Photo Part No Description Price (each) Stock
LR051007 SHIELD - PROTECTION $101.32 To Order
Photo Part No Description Price (each) Stock
LR100352 VALVE - COOLANT FLOW CONTROL $152.31 IN STOCK
View All
Thermostat/Housing & Related Parts (5.0 Petrol AJ133 DOHC CDA) ((V) FROMJA000001, (V) TOJA999999) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR011158
CLIP - HOSE
13-14 X 8, Hose - Throttle Body Heater / From: JA000001 		$3.18 1
HP1 LR011038
PLUG - BLANKING
Blanking, Cooling System Bleed / From: JA000001 		$5.12 1
HR1 LR100353
O-RING
Upper / From: JA000001 		$7.25 1
HR2 LR101805
O-RING
Lower / From: JA000001 		$6.53 2
HS1 LR011270
SCREW
M6 x 25MM, Torx / From: JA000001 		$1.24 5
HS2 LR044772
SCREW
M5 x 20MM / From: JA000001 		$0.53 1
8A577 LR045239
HOSE - THROTTLE BODY HEATER OUTLET
Hose - Throttle Body Heater, Outlet / From: JA000001 		$50.90 1
8A587 LR107347
THERMOSTAT AND HOUSING
Thermostat And Housing Assy / From: JA000001 		$120.68 1
14A099 LR051007
SHIELD - PROTECTION
Engine Air Deflector / From: JA000001 		$101.32 1
17A666 LR100352
VALVE - COOLANT FLOW CONTROL
Coolant Flow Control, Includes O-Ring / From: JA000001
IN STOCK 		$152.31 1
8548 LR090630
TUBE - WATER INLET
Water Connector - Thermostat To Top Coolant Hose / From: JA000001
IN STOCK 		$55.95 1
8555A LR033994
TUBE - WATER OUTLET
From Water Pump To Thermostat, With Clamps / From: JA000001
IN STOCK 		$22.82 1
8555B LR049990
TUBE - THERMOSTAT
Thermostat To Engine, With Clamps / From: JA000001 		$55.43 1
8555C LR100354
TUBE - BY-PASS
Tube Water By-Pass / From: JA000001 		$57.43 1
8772 LR034109
CLAMP - HOSE
49MM / From: JA000001 		$8.48 1
