Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Inlet Manifold (Manifolds, Intercooler And Cover) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR008883 BOLT - HEX.HEAD $4.35 To Order
Photo Part No Description Price (each) Stock
FS106126 BOLT $0.52 IN STOCK
Photo Part No Description Price (each) Stock
4567977 BOLT $3.91 IN STOCK
Photo Part No Description Price (each) Stock
LR010917 SCREW $1.16 IN STOCK
Photo Part No Description Price (each) Stock
LR011363 SCREW $1.97 IN STOCK
Photo Part No Description Price (each) Stock
LR011065 SCREW $2.47 To Order
Photo Part No Description Price (each) Stock
LR011067 SCREW $1.32 IN STOCK
Photo Part No Description Price (each) Stock
LR044772 SCREW $0.53 To Order
Photo Part No Description Price (each) Stock
LR035596 COVER - ENGINE TOP $309.81 To Order
LR062494 COVER - ENGINE TOP $437.41 To Order
LR094545 COVER - ENGINE TOP $2,292.68 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR010871 STUD - BALL $7.07 To Order
Photo Part No Description Price (each) Stock
LR042119 INSULATOR - INTAKE MANIFOLD $19.19 IN STOCK
Photo Part No Description Price (each) Stock
LR011564 BRACKET - ENGINE COVER $24.57 To Order
Photo Part No Description Price (each) Stock
LR042173 MANIFOLD - INLET $251.34 To Order
Photo Part No Description Price (each) Stock
LR042186 MANIFOLD - INLET $257.62 To Order
LR101751 MANIFOLD - INLET $241.52 To Order
Photo Part No Description Price (each) Stock
LR035519 INLET MANIFOLD WITH INTERCOOLER $1,296.24 To Order
LR083608 INLET MANIFOLD WITH INTERCOOLER $1,742.11 To Order
LR107284 INLET MANIFOLD WITH INTERCOOLER $1,791.94 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR011585 GASKET - INTAKE MANIFOLD $12.21 IN STOCK
Photo Part No Description Price (each) Stock
LR011586 GASKET - INTAKE MANIFOLD $12.61 IN STOCK
Photo Part No Description Price (each) Stock
LR011343 GASKET - INTAKE MANIFOLD $108.94 IN STOCK
Photo Part No Description Price (each) Stock
LR021587 SENSOR - AIR TEMPERATURE & PRESSURE $64.89 To Order
Photo Part No Description Price (each) Stock
LR035536 SENSOR - AIR CHARGE TEMPERATURE $39.16 To Order
View All

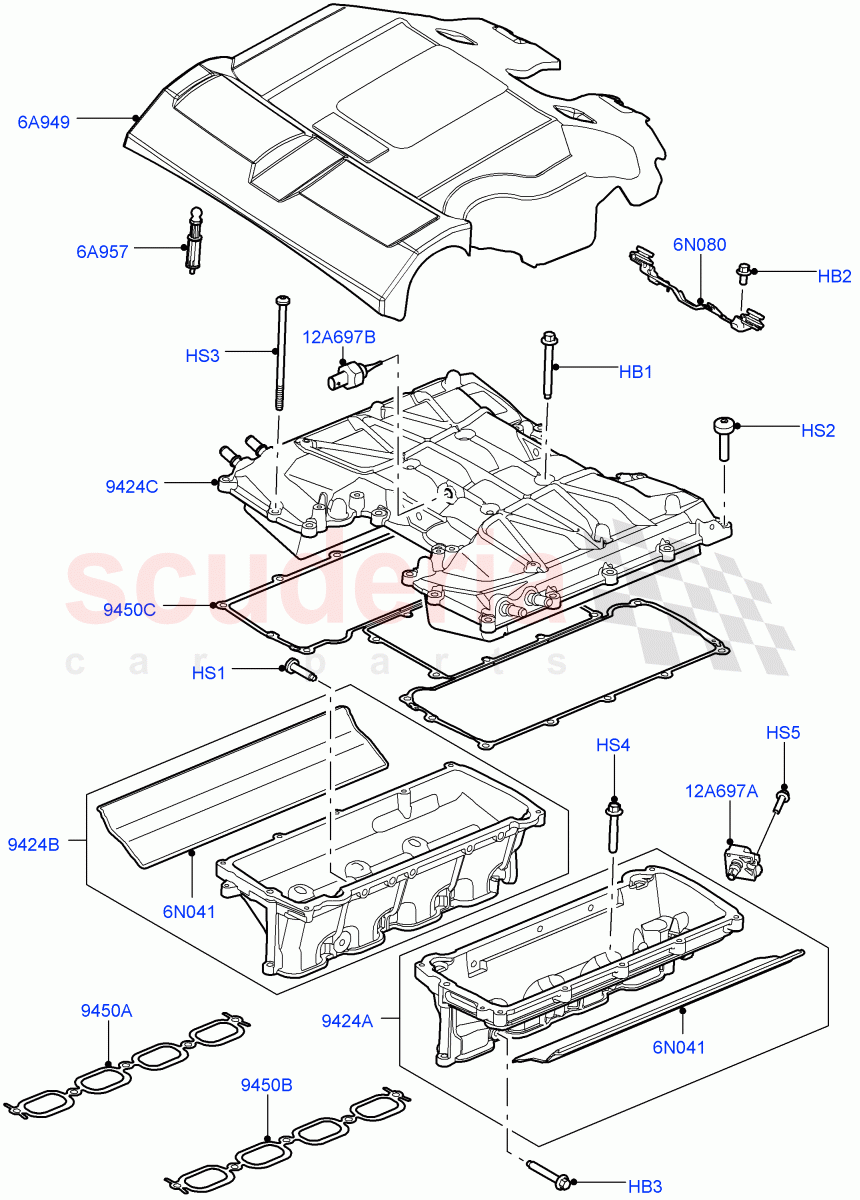

Inlet Manifold (Manifolds, Intercooler And Cover) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR008883
BOLT - HEX.HEAD
Intercooler, M8 x 65MM 		$4.35 4
HB2 FS106126
BOLT
Bracket, Hexagonal Head, M6 x 12MM
IN STOCK 		$0.52 2
HB3 4567977
BOLT
M8 X 50, Manifold To Supercharger
IN STOCK 		$3.91 2
HS1 LR010917
SCREW
M8 x 30MM, Manifold To Supercharger
IN STOCK 		$1.16 6
HS2 LR011363
SCREW
Intercooler To Manifold, M8 X 35MM
IN STOCK 		$1.97 19
HS3 LR011065
SCREW
Intercooler To Cylinder Head, M8 X 150MM 		$2.47 2
HS4 LR011067
SCREW
M8 X 45MM, Manifold To Cylinder Head
IN STOCK 		$1.32 8
HS5 LR044772
SCREW
M5 x 20MM, Sensor - Air Temperature And Pressure 		$0.53 1
6A949 LR035596
COVER - ENGINE TOP
Engine, Range Rover Logo / To: EA999999 		$309.81 1
6A949 LR062494
COVER - ENGINE TOP
Engine Power Source - 510PS/625NM / Engine, Land Rover Logo / From: FA000001 / To: HA999999 		$437.41 1
6A949 LR094545
COVER - ENGINE TOP
Engine Power Source - 550PS/680NM / Carbon Fibre / From: HA000001 / To: HA999999 		$2,292.68 1
6A949 LR062494
COVER - ENGINE TOP
Engine, Land Rover Logo / From: JA000001 		$437.41 1
6A957 LR010871
STUD - BALL
Engine Cover 		$7.07 2
6N041 LR042119
INSULATOR - INTAKE MANIFOLD
Attaches to intake manifold
IN STOCK 		$19.19 2
6N080 LR011564
BRACKET - ENGINE COVER
Engine Cover 		$24.57 1
12A697A LR021587
SENSOR - AIR TEMPERATURE & PRESSURE
Sensor - Air Temperature And Pressure 		$64.89 1
12A697B LR035536
SENSOR - AIR CHARGE TEMPERATURE 		$39.16 1
9424A LR042173
MANIFOLD - INLET
LH 		$251.34 1
9424B LR042186
MANIFOLD - INLET
RH / To: EA160118 		$257.62 1
9424B LR101751
MANIFOLD - INLET
RH / From: EA160119 		$241.52 1
9424C LR035519
INLET MANIFOLD WITH INTERCOOLER
Upper, With Intercooler / To: DA124953 		$1,296.24 1
9424C LR083608
INLET MANIFOLD WITH INTERCOOLER
Upper, With Intercooler / From: DA124954 / To: HA365103 		$1,742.11 1
9424C LR107284
INLET MANIFOLD WITH INTERCOOLER
Upper, With Intercooler / From: HA365104 / To: HA369750 		$1,791.94 1
9424C LR111075
INLET MANIFOLD WITH INTERCOOLER
Upper, With Intercooler / From: HA369751 		$1,807.39 1
9450A LR011585
GASKET - INTAKE MANIFOLD
RH, Manifold To Cylinder Head
IN STOCK 		$12.21 1
9450B LR011586
GASKET - INTAKE MANIFOLD
LH, Manifold To Cylinder Head
IN STOCK 		$12.61 1
9450C LR011343
GASKET - INTAKE MANIFOLD
Intercooler To Manifold
IN STOCK 		$108.94 1
