Instrument Panel (Upper, External) ((V) Toea152799)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] - Instrument Panel (Upper, External) ((V) TOEA152799)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR044894 CLIP $1.45 IN STOCK
Photo Part No Description Price (each) Stock
LR007312 SCREW 4.2 X 19 $0.75 IN STOCK
Photo Part No Description Price (each) Stock
RYP500770 SCREW $0.63 To Order
RYP500770 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
LR036723 SCREW - OVAL HEAD $2.58 To Order
Photo Part No Description Price (each) Stock
LR035217 BEZEL - INSTRUMENT CLUSTER $304.13 To Order
LR035216 BEZEL - INSTRUMENT CLUSTER $304.13 To Order
Photo Part No Description Price (each) Stock
LR035507 DUCT - AIR VENT $82.90 To Order
LR035506 DUCT - AIR VENT $78.38 To Order
Photo Part No Description Price (each) Stock
LR035436 PANEL - INSTRUMENT - UPPER $2,590.90 To Order
LR035437 PANEL - INSTRUMENT - UPPER $2,590.90 To Order
LR035438 PANEL - INSTRUMENT - UPPER $2,092.37 To Order
...and 13 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR035170 GRILLE - INSTRUMENT PANEL SPEAKER $68.85 To Order
LR035171 GRILLE - INSTRUMENT PANEL SPEAKER $68.85 To Order
LR035172 GRILLE - INSTRUMENT PANEL SPEAKER $68.85 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR035429 DUCT - HEATER - WINDSCREEN $34.06 To Order
LR035430 DUCT - HEATER - WINDSCREEN $34.65 To Order
Photo Part No Description Price (each) Stock
LR026088 CAP - SCREW $4.74 To Order
Photo Part No Description Price (each) Stock
LR035426 COVER - WINDSCREEN DEFROST $271.91 To Order
Photo Part No Description Price (each) Stock
LR035427 COVER - WINDSCREEN DEFROST $150.69 To Order
Photo Part No Description Price (each) Stock
LR035428 COVER - WINDSCREEN DEFROST $271.91 To Order
Photo Part No Description Price (each) Stock
LR035404 COVER - INSTRUMENT CLUSTER $463.05 To Order
LR035407 COVER - INSTRUMENT CLUSTER $463.05 To Order
LR035410 COVER - INSTRUMENT CLUSTER $400.91 To Order
...and 13 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR035174 FILLER - STEERING COLUMN $63.63 To Order
LR038228 FILLER - STEERING COLUMN $63.63 To Order
View All

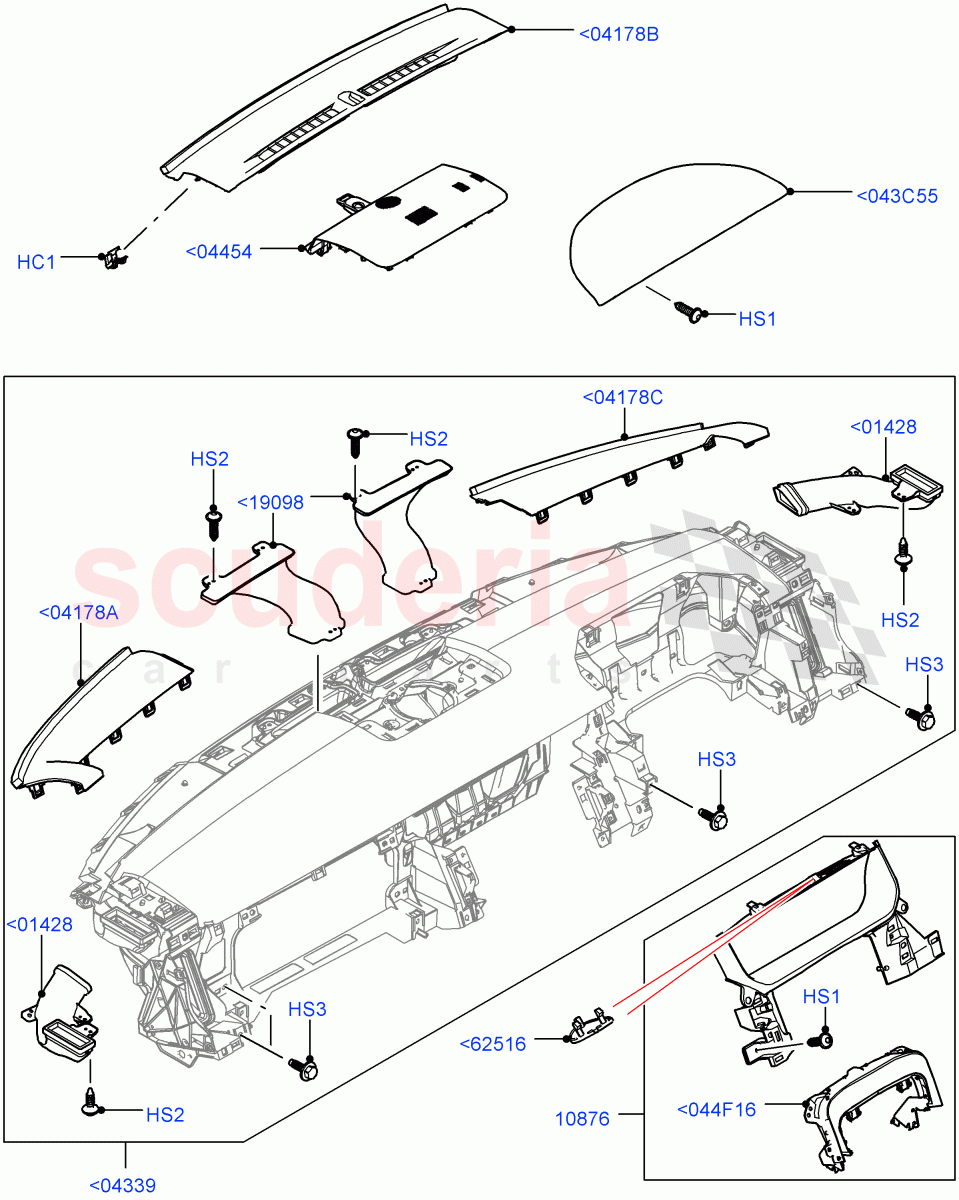

Instrument Panel (Upper, External) ((V) TOEA152799) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<043C55 LR035404
COVER - INSTRUMENT CLUSTER
I/P Facia Contrast-Espresso/Almond, Less Head Up Display, RHD, With PVC Facia 		$463.05 1
<043C55 LR035407
COVER - INSTRUMENT CLUSTER
I/P Facia Contrast - Navy/Cirrus, Less Head Up Display, RHD, With PVC Facia 		$463.05 1
<043C55 LR035410
COVER - INSTRUMENT CLUSTER
I/P Facia Contrast - Ebony Black, Less Head Up Display, RHD, With PVC Facia 		$400.91 1
<043C55 LR035413
COVER - INSTRUMENT CLUSTER
I/P Facia Contrast-Espresso/Ivory, LHD, Less Head Up Display, With PVC Facia 		$463.05 1
<043C55 LR035414
COVER - INSTRUMENT CLUSTER
I/P Facia Contrast - Navy/Cirrus, LHD, Less Head Up Display, With Mid Leather Facia 		$463.05 1
<043C55 LR035415
COVER - INSTRUMENT CLUSTER
I/P Facia Contrast - Ebony/Ivory, LHD, Less Head Up Display, With Mid Leather Facia 		$463.05 1
<043C55 LR035416
COVER - INSTRUMENT CLUSTER
I/P Facia Cntrast-DarkCherry/Ivory, Less Head Up Display, RHD, With Leather Facia 		$608.62 1
<043C55 LR035417
COVER - INSTRUMENT CLUSTER
I/P Facia Contrast-Espresso/Ivory, Less Head Up Display, RHD, With Leather Facia 		$608.62 1
<043C55 LR035418
COVER - INSTRUMENT CLUSTER
I/P Facia Contrast - Brogue/Ivory, Less Head Up Display, RHD, With Leather Facia 		$608.62 1
<043C55 LR035419
COVER - INSTRUMENT CLUSTER
I/P Facia Contrast - Navy/Cirrus, Less Head Up Display, RHD, With Leather Facia 		$608.62 1
<043C55 LR035420
COVER - INSTRUMENT CLUSTER
I/P Facia Contrast - Ebony/Lunar, Less Head Up Display, RHD, With Leather Facia 		$608.62 1
<043C55 LR035421
COVER - INSTRUMENT CLUSTER
I/P Facia Cntrast-DarkCherry/Ivory, LHD, Less Head Up Display, With Leather Facia 		$608.62 1
<043C55 LR035422
COVER - INSTRUMENT CLUSTER
I/P Facia Contrast-Espresso/Almond, LHD, Less Head Up Display, With Leather Facia 		$553.28 1
<043C55 LR035423
COVER - INSTRUMENT CLUSTER
I/P Facia Contrast - Brogue/Ivory, LHD, Less Head Up Display, With Leather Facia 		$608.62 1
<043C55 LR035424
COVER - INSTRUMENT CLUSTER
I/P Facia Contrast - Navy/Cirrus, LHD, Less Head Up Display, With Leather Facia 		$608.62 1
<043C55 LR035425
COVER - INSTRUMENT CLUSTER
I/P Facia Contrast - Ebony/Ivory, LHD, Less Head Up Display, With Leather Facia 		$543.88 1
<044F16 LR035174
FILLER - STEERING COLUMN
LHD / Steering Column 		$63.63 1
<044F16 LR038228
FILLER - STEERING COLUMN
RHD / Steering Column 		$63.63 1
<01428 LR035507
DUCT - AIR VENT
LH, Side Window Demist Duct 		$82.90 1
<01428 LR035506
DUCT - AIR VENT
RH, Side Window Demist Duct 		$78.38 1
<04178A LR035426
COVER - WINDSCREEN DEFROST
LH / To: EA152920 		$271.91 1
<04178B LR035427
COVER - WINDSCREEN DEFROST
Centre 		$150.69 1
<04178C LR035428
COVER - WINDSCREEN DEFROST
RH / To: EA152920 		$271.91 1
<04339 LR035436
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast-Espresso/Ivory, RHD, With PVC Facia / To: EA152799 		$2,590.90 1
<04339 LR035437
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Navy/Cirrus, RHD, With Mid Leather Facia / To: EA152799 		$2,590.90 1
<04339 LR035438
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Ebony Black, RHD, With PVC Facia / To: EA152799 		$2,092.37 1
<04339 LR035440
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast-Espresso/Almond, LHD, With PVC Facia / To: EA152799 		$2,092.37 1
<04339 LR035441
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Navy/Cirrus, LHD, With PVC Facia / To: EA152799 		$2,590.90 1
<04339 LR035442
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Ebony/Cirrus, LHD, With PVC Facia / To: EA152799 		$2,590.90 1
<04339 LR039408
PANEL - INSTRUMENT - UPPER
I/P Facia Cntrast-DarkCherry/Ivory, RHD, With Leather Facia / To: EA152799 		$4,086.37 1
<04339 LR039409
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast-Espresso/Almond, RHD, With Leather Facia / To: EA152799 		$4,086.37 1
<04339 LR039410
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Brogue/Ivory, RHD, With Leather Facia / To: EA152799 		$4,086.37 1
<04339 LR039411
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Navy/Cirrus, RHD, With Leather Facia / To: EA152799 		$4,086.37 1
<04339 LR039412
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Ebony/Tan, RHD, With Leather Facia / To: EA152799 		$4,086.37 1
<04339 LR039413
PANEL - INSTRUMENT - UPPER
I/P Facia Cntrast-DarkCherry/Ivory, LHD, With Leather Facia / To: EA152799 		$4,375.04 1
<04339 LR039414
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast-Espresso/Ivory, LHD, With Leather Facia / To: EA152799 		$4,375.04 1
<04339 LR039415
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Brogue/Ivory, LHD, With Leather Facia / To: EA152799 		$4,086.37 1
<04339 LR039416
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Navy/Cirrus, LHD, With Leather Facia / To: EA152799 		$4,375.04 1
<04339 LR039417
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Ebony/Pimento, LHD, With Leather Facia / To: EA152799 		$4,375.04 1
<04454 LR035170
GRILLE - INSTRUMENT PANEL SPEAKER
I/P Facia Cntrast-DarkCherry/Ivory / To: GA999999 		$68.85 1
<04454 LR035171
GRILLE - INSTRUMENT PANEL SPEAKER
I/P Facia Contrast - Tan/Espresso / To: GA999999 		$68.85 1
<04454 LR035172
GRILLE - INSTRUMENT PANEL SPEAKER
I/P Facia Contrast - Navy/Ivory / To: GA999999 		$68.85 1
<04454 LR035173
GRILLE - INSTRUMENT PANEL SPEAKER
I/P Facia Contrast - Ebony / To: GA999999 		$93.79 1
<04454 LR041973
GRILLE - INSTRUMENT PANEL SPEAKER
I/P Facia Contrast - Brogue/Ivory / To: GA999999 		$98.94 1
<19098 LR035429
DUCT - HEATER - WINDSCREEN
RH 		$34.06 1
<19098 LR035430
DUCT - HEATER - WINDSCREEN
LH 		$34.65 1
<62516 LR026088
CAP - SCREW 		$4.74 1
HC1 LR044894
CLIP
0.8 - 2.5, Centre, Cover - Windscreen Defrost
IN STOCK 		$1.45 2
HS1 LR007312
SCREW 4.2 X 19
4.2 X 19MM, Attaches Instrument Cluster Cover To Instrument Panel
IN STOCK 		$0.75 4
HS2 RYP500770
SCREW
5 X 16MM, Side Window Demist Duct, Torx 		$0.63 6
HS2 RYP500770
SCREW
5 X 16MM, Duct - Windscreen, Heater, Torx 		$0.63 4
HS3 LR036723
SCREW - OVAL HEAD
6 X 1.42 X 16, Instrument Panel, Upper 		$2.58 9
10876 LR035217
BEZEL - INSTRUMENT CLUSTER
LHD 		$304.13 1
10876 LR035216
BEZEL - INSTRUMENT CLUSTER
RHD 		$304.13 1
