Timing Gear (Timing Chains, Tensioners) (5.0L Ohc Sgdi Na V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] - Timing Gear (Timing Chains, Tensioners) (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR011522 SCREW $2.88 IN STOCK
Photo Part No Description Price (each) Stock
LR011272 SCREW $1.38 To Order
Photo Part No Description Price (each) Stock
LR011064 SCREW M6 X 38 $2.59 IN STOCK
Photo Part No Description Price (each) Stock
LR010904 SCREW $1.25 To Order
Photo Part No Description Price (each) Stock
LR032048 CHAIN - TIMING $90.92 IN STOCK
Photo Part No Description Price (each) Stock
LR095472 TENSIONER - TIMING CHAIN $149.12 ARRIVING SOON
LR095472 TENSIONER - TIMING CHAIN $149.12 ARRIVING SOON
LR095472 TENSIONER - TIMING CHAIN $149.12 ARRIVING SOON
Photo Part No Description Price (each) Stock
LR051013 BLADE - TENSIONER $66.62 IN STOCK
LR051013 BLADE - TENSIONER $66.62 IN STOCK
Photo Part No Description Price (each) Stock
LR051013 BLADE - TENSIONER $66.62 IN STOCK
LR051011 GUIDE - TIMING CHAIN $48.74 IN STOCK
Photo Part No Description Price (each) Stock
LR051012 GUIDE - TIMING CHAIN $48.74 IN STOCK
LR051012 GUIDE - TIMING CHAIN $48.74 IN STOCK
Photo Part No Description Price (each) Stock
LR032714 JET - CHAIN LUBRICATING $52.05 IN STOCK
Photo Part No Description Price (each) Stock
LR042667 JET - CHAIN LUBRICATING $25.22 To Order
LR059161 JET - CHAIN LUBRICATING $19.05 IN STOCK
View All

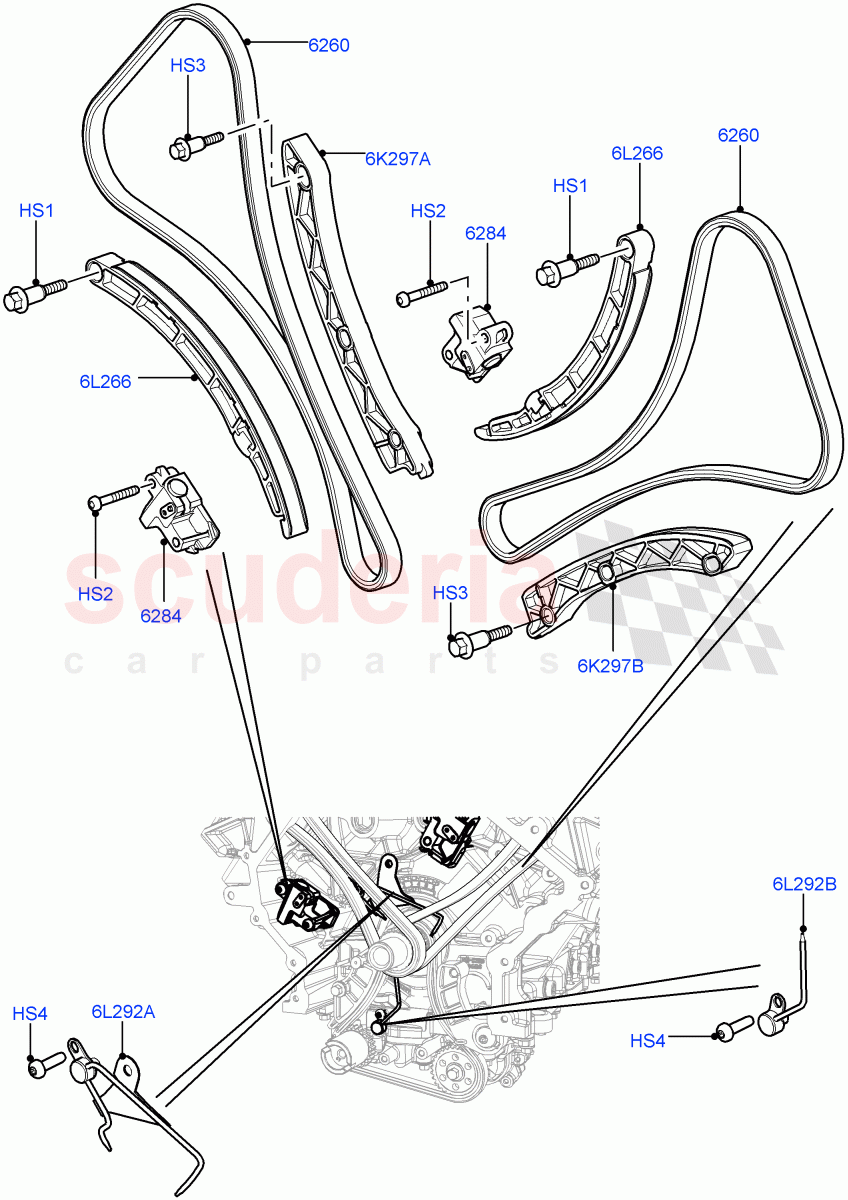

Timing Gear (Timing Chains, Tensioners) (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR011522
SCREW
M8 X 45MM, Tensioner
IN STOCK 		$2.88 2
HS2 LR011272
SCREW
M6 X 40MM, Torx 		$1.38 4
HS3 LR011064
SCREW M6 X 38
Chain Guide, M6 X 38MM
IN STOCK 		$2.59 6
HS4 LR010904
SCREW
M6 X 20MM, Washer Nozzle 		$1.25 2
6K297A LR051013
BLADE - TENSIONER
RH, Timing Chain / To: EA140967
IN STOCK 		$66.62 1
6K297A LR051011
GUIDE - TIMING CHAIN
RH, Timing Chain / From: EA140968
IN STOCK 		$48.74 1
6K297B LR051012
GUIDE - TIMING CHAIN
LH, Timing Chain / To: EA140967
IN STOCK 		$48.74 1
6K297B LR051012
GUIDE - TIMING CHAIN
LH, Timing Chain / From: EA140968
IN STOCK 		$48.74 1
6L266 LR051013
BLADE - TENSIONER
Blade, If you change LR040977 and order a part after s/s, you will receive a kit contains new blade and tensioner., The old and the new parts cannot be mixed. / To: EA140967
IN STOCK 		$66.62 2
6L266 LR051013
BLADE - TENSIONER
Blade / From: EA140968
IN STOCK 		$66.62 2
6L292A LR032714
JET - CHAIN LUBRICATING
Chain Lubricating, Upper
IN STOCK 		$52.05 1
6L292B LR042667
JET - CHAIN LUBRICATING
Chain Lubricating, Lower / To: EA173150 		$25.22 1
6L292B LR059161
JET - CHAIN LUBRICATING
Chain Lubricating, Lower / From: EA173151
IN STOCK 		$19.05 1
6260 LR032048
CHAIN - TIMING
IN STOCK 		$90.92 2
6284 LR095472
TENSIONER - TIMING CHAIN
If you change LR032088 and order a part after s/s, you will receive a kit containing new blade and tensioner., The old and the new parts cannot be mixed. / To: EA140967
ARRIVING SOON 		$149.12 2
6284 LR095472
TENSIONER - TIMING CHAIN
From: EA140968 / To: HA322891
ARRIVING SOON 		$149.12 2
6284 LR095472
TENSIONER - TIMING CHAIN
From: HA322892
ARRIVING SOON 		$149.12 2
