Fuel Lines (Front) (5.0L Ohc Sgdi Na V8 Petrol - Aj133, (+) "Cdn/Usa", Flex Fuel - E100, (+) "Kor")...

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] - Fuel Lines (Front) (5.0L OHC SGDI NA V8 Petrol - AJ133, (+) "CDN/USA", Flex Fuel - E100, (+) "KOR")...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR034354 BOLT - PAN - TORX $1.07 To Order
Photo Part No Description Price (each) Stock
LR014474 CLIP $1.15 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
LR010806 VALVE - FUEL VAPOUR $117.09 To Order
Photo Part No Description Price (each) Stock
LR042488 SENSOR - FUEL QUALITY $304.65 To Order
Photo Part No Description Price (each) Stock
LR042509 BRACKET - FUEL COOLER $20.67 To Order
Photo Part No Description Price (each) Stock
LR011563 BRACKET - FUEL VAPOUR VALVE $12.75 To Order
Photo Part No Description Price (each) Stock
LR042476 TUBE - FUEL FEED $129.55 To Order
Photo Part No Description Price (each) Stock
LR048110 TUBE - FUEL SUPPLY AND VAPOUR $98.52 To Order
LR055691 TUBE - FUEL SUPPLY AND VAPOUR $103.41 To Order
LR053247 TUBE - FUEL SUPPLY AND VAPOUR $290.31 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR044591 GROMMET - ADAPTOR TO BRACKET $10.20 To Order
Photo Part No Description Price (each) Stock
LR044464 PAD - FOAM $29.44 To Order
View All

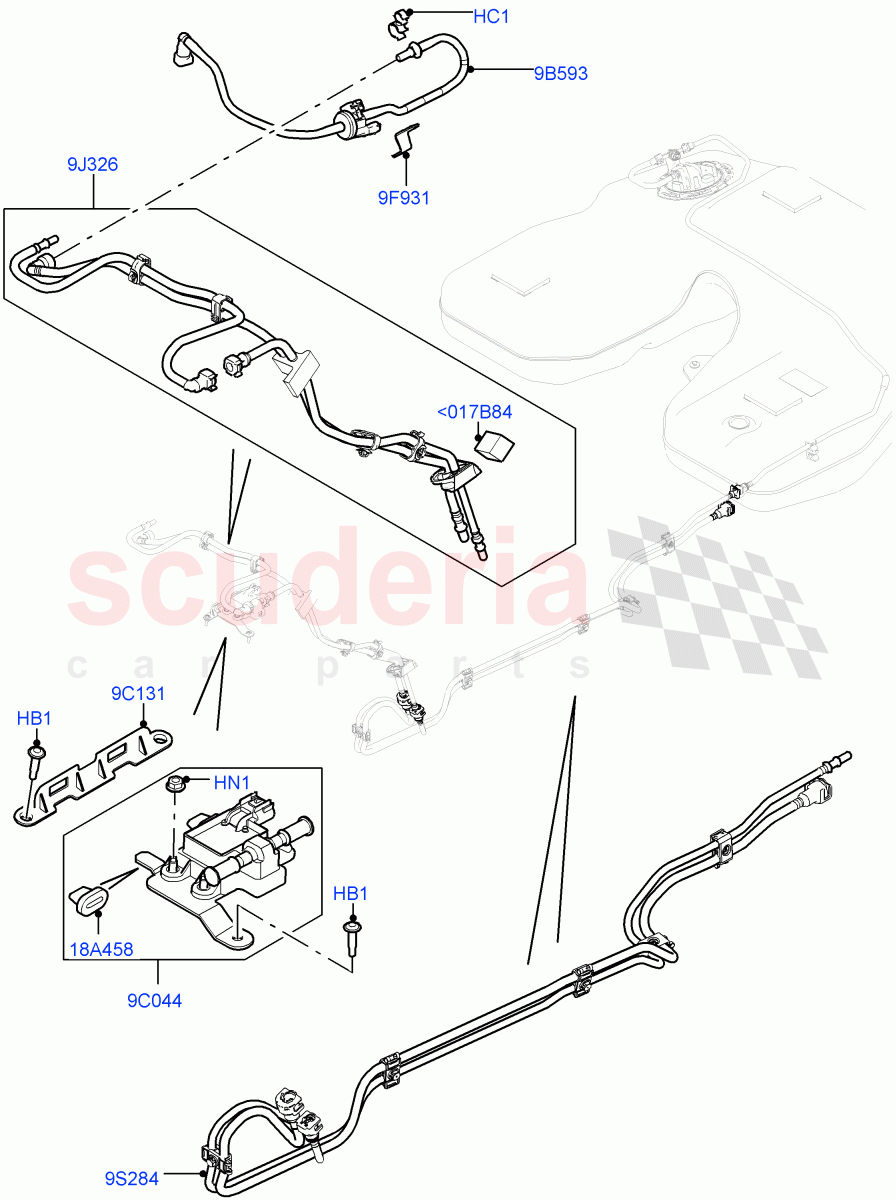

Fuel Lines (Front) (5.0L OHC SGDI NA V8 Petrol - AJ133, (+) "CDN/USA", Flex Fuel - E100, (+) "KOR") ((V) FROMEA000001) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<017B84 LR044464
PAD - FOAM
From: EA000001 		$29.44 1
HB1 LR034354
BOLT - PAN - TORX
M6 x 19MM, Torx / From: EA000001 		$1.07 3
HC1 LR014474
CLIP
Double / From: EA000001 		$1.15 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: EA000001
IN STOCK 		$1.47 3
9B593 LR010806
VALVE - FUEL VAPOUR
From: EA000001 		$117.09 1
9C044 LR042488
SENSOR - FUEL QUALITY
Sensor - Fuel Quality / From: EA000001 		$304.65 1
9C131 LR042509
BRACKET - FUEL COOLER
Sensor - Fuel Quality / From: EA000001 		$20.67 1
9F931 LR011563
BRACKET - FUEL VAPOUR VALVE
Fuel Vapour Valve / From: EA000001 		$12.75 1
9J326 LR042476
TUBE - FUEL FEED
Return, Set Of 2 Pieces, Supply / From: EA000001 		$129.55 1
9S284 LR048110
TUBE - FUEL SUPPLY AND VAPOUR
Standard Wheelbase / Rear, Set Of 2 Pieces / From: EA000001 / To: EA137631 		$98.52 1
9S284 LR055691
TUBE - FUEL SUPPLY AND VAPOUR
Standard Wheelbase / Rear, Set Of 2 Pieces / From: EA137632 / To: GA293868 		$103.41 1
9S284 LR053247
TUBE - FUEL SUPPLY AND VAPOUR
Long Wheelbase / Rear, Set Of 2 Pieces / From: EA000001 / To: GA287638 		$290.31 1
9S284 LR086376
TUBE - FUEL SUPPLY AND VAPOUR
Long Wheelbase / Rear, Set Of 2 Pieces / From: GA287639 / To: GA999999 		$285.05 1
9S284 LR086376
TUBE - FUEL SUPPLY AND VAPOUR
Long Wheelbase / Rear, Set Of 2 Pieces / From: HA000001 		$285.05 1
9S284 LR086375
TUBE - FUEL SUPPLY AND VAPOUR
Standard Wheelbase / Rear, Set Of 2 Pieces / From: GA293869 		$134.53 1
18A458 LR044591
GROMMET - ADAPTOR TO BRACKET
Sensor - Fuel Quality / From: EA000001 		$10.20 1
