Radiator/Coolant Overflow Container parts for Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Radiator/Coolant Overflow Container (5.0L OHC SGDI NA V8 Petrol - AJ133) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] - Radiator/Coolant Overflow Container (5.0L OHC SGDI NA V8 Petrol - AJ133)

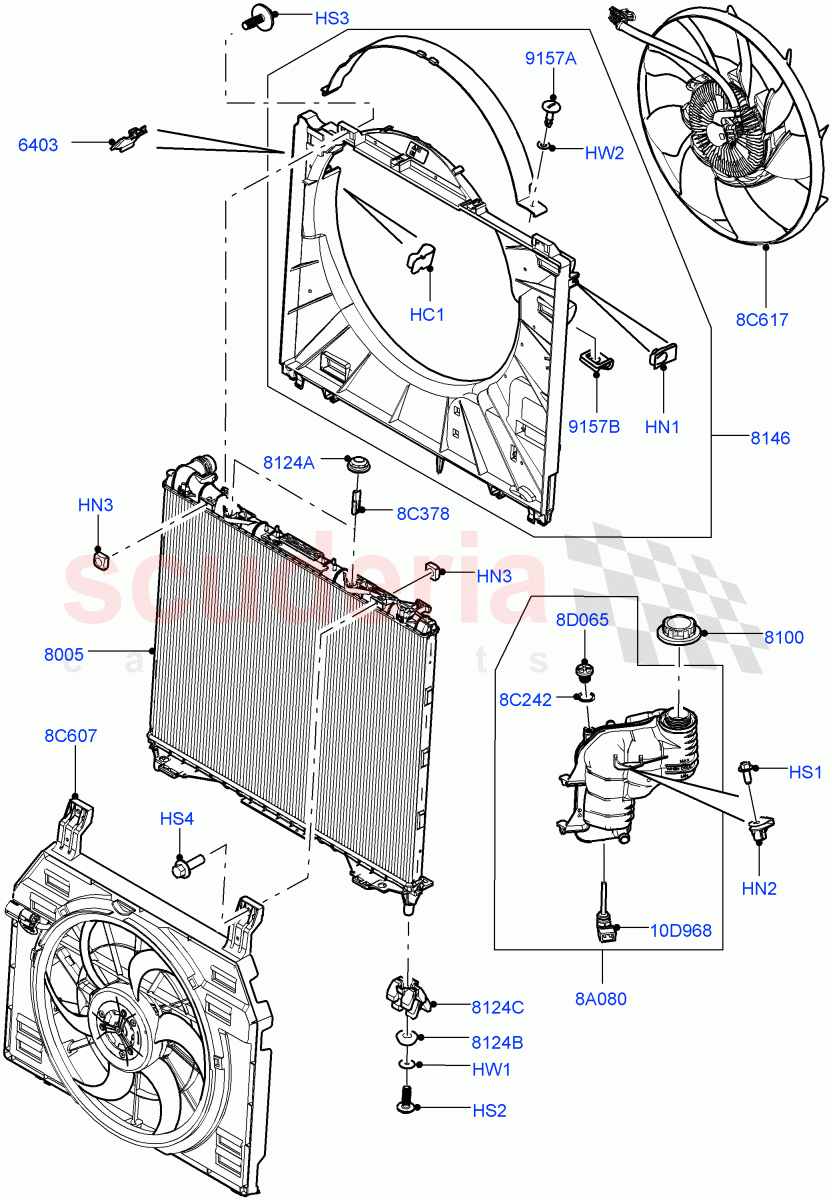

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN

IN STOCK

AS

ARRIVING SOON

TO

To Order

PE

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR053660	CLIP - RETAINING	$2.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	$1.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR038068	NUT - SPECIAL	$1.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040736	NUT - SQUARE	$1.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	BYP500170	SCREW	$1.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR038052	SCREW	$2.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR033039	SCREW AND WASHER - HEX HEAD	$1.68	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	$0.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	VYF500090	WASHER	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	PYF100830	WASHER - PLASTIC	$0.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039009	PLUG	$20.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR162110	RADIATOR	$572.22	To Order
	LR162110	RADIATOR	$572.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR176861	CAP - OVERFLOW CONTAINER	$17.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036525	SHROUD - RADIATOR FAN	$242.71	To Order
	LR057118	SHROUD - RADIATOR FAN	$234.48	To Order

Photo	Part No	Description	Price (each)	Stock
	PDI500012	INSULATOR - RADIATOR MOUNTING	$2.73	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR034569	INSULATOR - RADIATOR SUPPORT	$6.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034565	INSULATOR - RADIATOR SUPPORT	$6.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR181676	TANK - RADIATOR OVERFLOW	$138.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR007315	SEAL	$2.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR034571	PIN - RADIATOR MOUNTING	$4.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036523	MOTOR AND FAN - ENGINE COOLING	$1,035.54	To Order
	LR069901	MOTOR AND FAN - ENGINE COOLING	$726.55	To Order
	LR084438	MOTOR AND FAN - ENGINE COOLING	$1,035.54	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR012645	FAN AND MOTOR	$776.29	To Order
	LR095536	FAN AND MOTOR	$591.64	To Order
	LR112861	FAN AND MOTOR	$638.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007314	VALVE - BLEEDER SCREW	$4.78	To Order
	LR055301	VALVE - BLEEDER SCREW	$9.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	ANR6461	FASTENER - SCREW TYPE	$2.49	To Order

Photo	Part No	Description	Price (each)	Stock
	EZM000110	FASTENER - COVER	$4.38	To Order

Photo	Part No	Description	Price (each)	Stock
	PCJ500030	SENSOR - COOLANT LEVEL	$25.01	IN STOCK

View All

Radiator/Coolant Overflow Container (5.0L OHC SGDI NA V8 Petrol - AJ133) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Order Qty	Add to Cart
	HC1	LR053660	CLIP - RETAINING	LR053660 CLIP - RETAINING Retainer	$2.12	1
	HN1	LR000053	NUT - FLANGED IN STOCK	LR000053 NUT - FLANGED M6 IN STOCK	$1.62	3
	HN2	LR038068	NUT - SPECIAL	LR038068 NUT - SPECIAL Expansion Tank, Nut U Spring M6 Push On	$1.74	1
	HN3	LR040736	NUT - SQUARE IN STOCK	LR040736 NUT - SQUARE M6, Square IN STOCK	$1.29	4
	HS1	BYP500170	SCREW IN STOCK	BYP500170 SCREW Hexagonal Head, M6 x 14MM IN STOCK	$1.24	1
	HS2	LR038052	SCREW IN STOCK	LR038052 SCREW 8 x 24MM, Torx IN STOCK	$2.49	2
	HS3	LR033039	SCREW AND WASHER - HEX HEAD	LR033039 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 x 19MM	$1.68	2
	HS4	FS106206	SCREW IN STOCK	FS106206 SCREW HEX Flange, Hexagonal Head, M6 X 20MM IN STOCK	$0.96	2
	HW1	VYF500090	WASHER	VYF500090 WASHER 8.4 X 31 X 1.6	$0.81	2
	HW2	PYF100830	WASHER - PLASTIC	PYF100830 WASHER - PLASTIC Plastic	$0.77	1
	8A080	LR181676	TANK - RADIATOR OVERFLOW IN STOCK	LR181676 TANK - RADIATOR OVERFLOW IN STOCK	$138.63	1
	8C242	LR007315	SEAL IN STOCK	LR007315 SEAL Bleeder Screw IN STOCK	$2.25	1
	8C378	LR034571	PIN - RADIATOR MOUNTING	LR034571 PIN - RADIATOR MOUNTING Radiator Mounting, Upper	$4.86	2
	8C607	LR036523	MOTOR AND FAN - ENGINE COOLING	LR036523 MOTOR AND FAN - ENGINE COOLING Air Conditioning Condenser / To: EA181622	$1,035.54	1
	8C607	LR069901	MOTOR AND FAN - ENGINE COOLING	LR069901 MOTOR AND FAN - ENGINE COOLING Viscous Cooling Fan With Condenser / Air Conditioning Condenser / From: EA181623 / To: GA271462	$726.55	1
	8C607	LR084438	MOTOR AND FAN - ENGINE COOLING	LR084438 MOTOR AND FAN - ENGINE COOLING Viscous Cooling Fan With Condenser / Air Conditioning Condenser / From: GA271463 / To: GA999999	$1,035.54	1
	8C607	LR081688	MOTOR AND FAN - ENGINE COOLING	LR081688 MOTOR AND FAN - ENGINE COOLING Viscous Cooling Fan With Condenser / Air Conditioning Condenser / From: HA000001 / To: KA549509	$1,035.54	1
	8C607	LR125203	MOTOR AND FAN - ENGINE COOLING	LR125203 MOTOR AND FAN - ENGINE COOLING Viscous Cooling Fan With Condenser / Air Conditioning Condenser / From: KA549510 / To: MA420644	$1,035.54	1
	8C607	LR146883	MOTOR AND FAN - ENGINE COOLING	LR146883 MOTOR AND FAN - ENGINE COOLING Viscous Cooling Fan With Condenser / Air Conditioning Condenser / From: MA420645	$1,035.54	1
	8C617	LR012645	FAN AND MOTOR	LR012645 FAN AND MOTOR To: HA337882	$776.29	1
	8C617	LR095536	FAN AND MOTOR	LR095536 FAN AND MOTOR From: HA337883 / To: HA380054	$591.64	1
	8C617	LR112861	FAN AND MOTOR	LR112861 FAN AND MOTOR From: HA380055	$638.97	1
	8D065	LR007314	VALVE - BLEEDER SCREW	LR007314 VALVE - BLEEDER SCREW Bleeder Screw / To: EA139999	$4.78	1
	8D065	LR055301	VALVE - BLEEDER SCREW IN STOCK	LR055301 VALVE - BLEEDER SCREW Bleeder Screw / From: EA140000 IN STOCK	$9.03	1
	10D968	PCJ500030	SENSOR - COOLANT LEVEL IN STOCK	PCJ500030 SENSOR - COOLANT LEVEL IN STOCK	$25.01	1
	6403	LR039009	PLUG	LR039009 PLUG Located At Fan Shroud	$20.31	1
	8005	LR162110	RADIATOR	LR162110 RADIATOR To: MA453053	$572.22	1
	8005	LR162110	RADIATOR	LR162110 RADIATOR From: MA453054	$572.22	1
	8100	LR176861	CAP - OVERFLOW CONTAINER	LR176861 CAP - OVERFLOW CONTAINER	$17.13	1
	8124A	PDI500012	INSULATOR - RADIATOR MOUNTING IN STOCK	PDI500012 INSULATOR - RADIATOR MOUNTING Radiator Mounting, Top IN STOCK	$2.73	2
	8124B	LR034569	INSULATOR - RADIATOR SUPPORT	LR034569 INSULATOR - RADIATOR SUPPORT Lower	$6.39	2
	8124C	LR034565	INSULATOR - RADIATOR SUPPORT	LR034565 INSULATOR - RADIATOR SUPPORT Radiator Support	$6.21	2
	8146	LR036525	SHROUD - RADIATOR FAN	LR036525 SHROUD - RADIATOR FAN Upper And Lower / To: EA136920	$242.71	1
	8146	LR057118	SHROUD - RADIATOR FAN	LR057118 SHROUD - RADIATOR FAN Upper And Lower / From: EA136921	$234.48	1
	9157A	ANR6461	FASTENER - SCREW TYPE	ANR6461 FASTENER - SCREW TYPE Screw Type	$2.49	1
	9157B	EZM000110	FASTENER - COVER	EZM000110 FASTENER - COVER Retainer	$4.38	1
