Inlet Manifold (5.0L Ohc Sgdi Na V8 Petrol - Aj133)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] - Inlet Manifold (5.0L OHC SGDI NA V8 Petrol - AJ133)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126 BOLT $0.52 IN STOCK
Photo Part No Description Price (each) Stock
LR011067 SCREW $1.32 IN STOCK
Photo Part No Description Price (each) Stock
LR008868 SCREW $1.37 To Order
Photo Part No Description Price (each) Stock
LR000815 SCREW $4.26 To Order
Photo Part No Description Price (each) Stock
LR011956 MANIFOLD - INLET $1,453.74 To Order
Photo Part No Description Price (each) Stock
LR010881 GASKET - INTAKE MANIFOLD $14.25 To Order
Photo Part No Description Price (each) Stock
LR035595 COVER - ENGINE TOP $181.23 To Order
LR062497 COVER - ENGINE TOP $437.98 To Order
Photo Part No Description Price (each) Stock
LR010871 STUD - BALL $7.09 To Order
Photo Part No Description Price (each) Stock
LR011564 BRACKET - ENGINE COVER $24.63 To Order
Photo Part No Description Price (each) Stock
LR011999 SEAL - THROTTLE $11.34 To Order
Photo Part No Description Price (each) Stock
LR037684 CONNECTOR - VACUUM HOSE $18.73 To Order
Photo Part No Description Price (each) Stock
LR011982 VALVE - VACUUM CONTROL $166.49 To Order
Photo Part No Description Price (each) Stock
LR012284 HOSE - VACUUM $54.63 To Order
Photo Part No Description Price (each) Stock
LR008881 SENSOR - MANIFOLD ABSOLUTE PRESSURE $143.05 To Order
Photo Part No Description Price (each) Stock
LR010877 ACTUATOR - VARIABLE INTAKE SYSTEM $219.73 To Order
Photo Part No Description Price (each) Stock
LR010878 ACTUATOR - VARIABLE INTAKE SYSTEM $384.90 To Order
View All

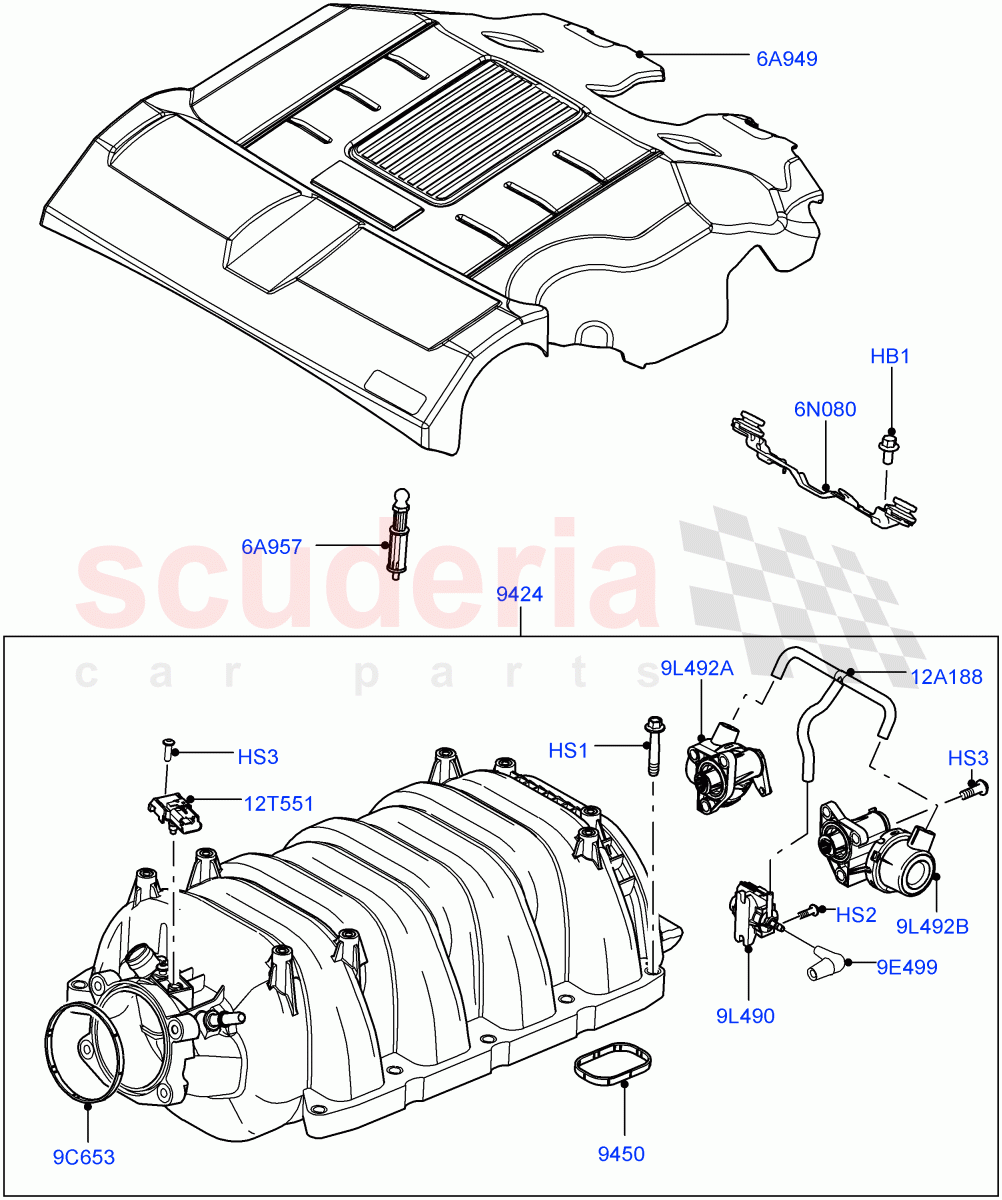

Inlet Manifold (5.0L OHC SGDI NA V8 Petrol - AJ133) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106126
BOLT
Bracket, Hexagonal Head, M6 x 12MM
IN STOCK 		$0.52 2
HS1 LR011067
SCREW
M8 X 45MM, Manifold To Cylinder Head
IN STOCK 		$1.32 10
HS2 LR008868
SCREW
5 X 16MM, Valve - Vacuum Control 		$1.37 2
HS3 LR000815
SCREW
M6 X 20MM 		$4.26 7
6A949 LR035595
COVER - ENGINE TOP
Engine, Range Rover Logo / To: EA999999 		$181.23 1
6A949 LR062497
COVER - ENGINE TOP
Engine, Land Rover Logo / From: FA000001 		$437.98 1
6A957 LR010871
STUD - BALL
Engine Cover 		$7.09 2
6N080 LR011564
BRACKET - ENGINE COVER
Engine Cover 		$24.63 1
9C653 LR011999
SEAL - THROTTLE
Attaches to intake manifold, Throttle Body To Intake 		$11.34 1
9E499 LR037684
CONNECTOR - VACUUM HOSE 		$18.73 1
9L490 LR011982
VALVE - VACUUM CONTROL
Vacuum Control, Variable Intake System 		$166.49 1
9L492A LR010877
ACTUATOR - VARIABLE INTAKE SYSTEM
RH, Variable Intake System 		$219.73 1
9L492B LR010878
ACTUATOR - VARIABLE INTAKE SYSTEM
LH, Variable Intake System 		$384.90 1
12A188 LR012284
HOSE - VACUUM
Variable Intake System 		$54.63 1
12T551 LR008881
SENSOR - MANIFOLD ABSOLUTE PRESSURE
Sensor - Manifold Absolute Pressure (MAP) / To: EA196785 		$143.05 1
9424 LR011956
MANIFOLD - INLET 		$1,453.74 1
9450 LR010881
GASKET - INTAKE MANIFOLD
Attaches to intake manifold 		$14.25 8
