Name: Rear Brake Discs And Calipers (Front Disc And Caliper Size 20, Disc And Caliper Size-Frt 20/RR 20) ((V) FROMGA285153)
Rating: 4.8 (1 reviews)

Rear Brake Discs And Calipers (Front Disc And Caliper Size 20, Disc And Caliper Size-Frt 20/RR 20) ((V) FROMGA285153) of Land Rover Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] - Rear Brake Discs And Calipers (Front Disc And Caliper Size 20, Disc And Caliper Size-Frt 20/RR 20)...

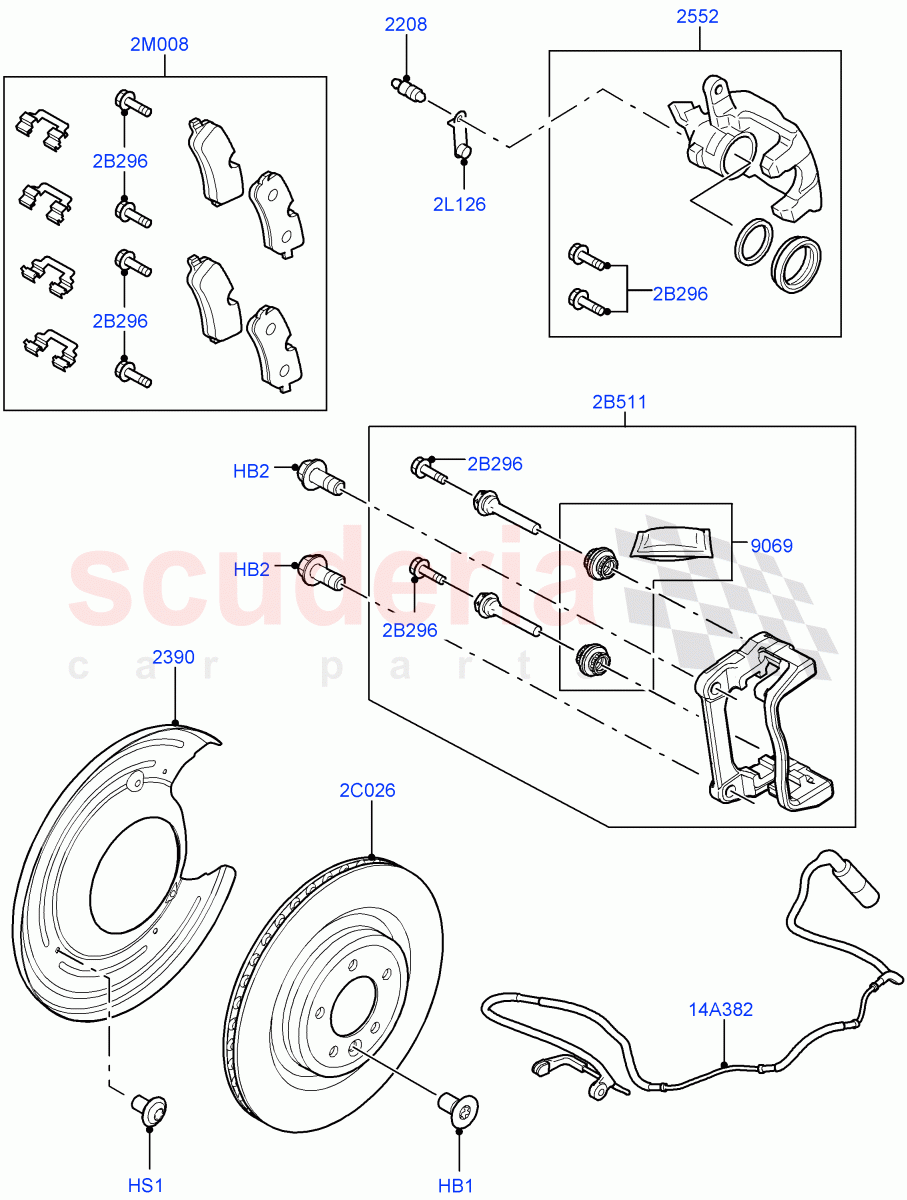

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR002080	BOLT	$3.22	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	SYG000013	BOLT	$3.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR018509	SCREW	$1.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR015523	SCREW - BLEED	$6.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR082225	SHIELD - BRAKE DISC SPLASH	$97.70	To Order
	LR082553	SHIELD - BRAKE DISC SPLASH	$95.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036567	CALIPER - BRAKE	$387.78	To Order
	LR036568	CALIPER - BRAKE	$387.78	To Order
	LR050775	CALIPER - BRAKE	$452.12	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR015525	COVER - DUST	$24.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031319	BOLT	$3.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR036570	BRACKET - BRAKE CALIPER	$319.14	To Order
	LR036572	BRACKET - BRAKE CALIPER	$329.14	To Order
	LR050777	BRACKET - BRAKE CALIPER	$322.96	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR033303	DISC - BRAKE	$171.99	To Order
	LR099038	DISC - BRAKE	$193.20	To Order
	LR161899	DISC - BRAKE	$219.18	To Order

Photo	Part No	Description	Price (each)	Stock
	STC1913	CAP - BLEED SCREW	$6.25	IN STOCK
	LR084117	CAP - BLEED SCREW	$11.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR147981	KIT - BRAKE LINING	$165.71	IN STOCK
	LR162042	KIT - BRAKE LINING	$166.18	IN STOCK
	LR162042	KIT - BRAKE LINING	$166.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR033295	WIRE - BRAKE PAD WEAR WARNING	$38.38	IN STOCK
	LR084071	WIRE - BRAKE PAD WEAR WARNING	$36.69	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR002080	BOLT IN STOCK	LR002080 BOLT M10 X 20MM, Torx / From: GA285153 IN STOCK	$3.22	2
HB2	SYG000013	BOLT IN STOCK	SYG000013 BOLT External Torx Head, M12 X 35MM / From: GA285153 IN STOCK	$3.42	4
HS1	LR018509	SCREW IN STOCK	LR018509 SCREW M6 X 10MM, Torx / From: GA285153 IN STOCK	$1.25	6
2B296	LR031319	BOLT IN STOCK	LR031319 BOLT Pin - Guide / From: GA285153 IN STOCK	$3.34	4
2B511	LR036570	BRACKET - BRAKE CALIPER	LR036570 BRACKET - BRAKE CALIPER With Non Painted Brake Calipers / RH / From: GA285153 / To: HA999999	$319.14	1
2B511	LR036572	BRACKET - BRAKE CALIPER	LR036572 BRACKET - BRAKE CALIPER With Non Painted Brake Calipers / LH / From: GA285153 / To: HA999999	$329.14	1
2B511	LR050777	BRACKET - BRAKE CALIPER	LR050777 BRACKET - BRAKE CALIPER Brake Calipers - Red / RH / From: GA285153 / To: HA999999	$322.96	1
2B511	LR050778	BRACKET - BRAKE CALIPER	LR050778 BRACKET - BRAKE CALIPER Brake Calipers - Red / LH / From: GA285153 / To: HA999999	$380.03	1
2B511	LR102240	BRACKET - BRAKE CALIPER	LR102240 BRACKET - BRAKE CALIPER Brake Calipers - Red / LH / From: JA000001	$346.43	1
2B511	LR102238	BRACKET - BRAKE CALIPER	LR102238 BRACKET - BRAKE CALIPER Brake Calipers - Red / RH / From: JA000001	$322.96	1
2B511	LR110403	BRACKET - BRAKE CALIPER	LR110403 BRACKET - BRAKE CALIPER With Non Painted Brake Calipers / RH / From: JA000001	$334.46	1
2B511	LR110404	BRACKET - BRAKE CALIPER	LR110404 BRACKET - BRAKE CALIPER With Non Painted Brake Calipers / LH / From: JA000001	$344.96	1
2B511	LR104079	BRACKET - BRAKE CALIPER	LR104079 BRACKET - BRAKE CALIPER Brake Calipers - Black / RH / From: JA000001	$163.87	1
2B511	LR104078	BRACKET - BRAKE CALIPER	LR104078 BRACKET - BRAKE CALIPER Brake Calipers - Black / LH / From: JA000001	$170.53	1
2C026	LR033303	DISC - BRAKE	LR033303 DISC - BRAKE From: GA285153 / To: HA999999	$171.99	2
2C026	LR099038	DISC - BRAKE	LR099038 DISC - BRAKE 365mm / From: JA000001 / To: NA453371	$193.20	2
2C026	LR161899	DISC - BRAKE	LR161899 DISC - BRAKE 365mm / From: NA453372	$219.18	2
2L126	STC1913	CAP - BLEED SCREW IN STOCK	STC1913 CAP - BLEED SCREW From: GA285153 / To: HA999999 IN STOCK	$6.25	2
2L126	LR084117	CAP - BLEED SCREW	LR084117 CAP - BLEED SCREW From: JA000001	$11.94	2
2M008	LR147981	KIT - BRAKE LINING IN STOCK	LR147981 KIT - BRAKE LINING Axle Set, With Clips / From: GA285153 / To: HA999999 IN STOCK	$165.71	1
2M008	LR162042	KIT - BRAKE LINING IN STOCK	LR162042 KIT - BRAKE LINING Axle Set, With Clips / From: JA000001 / To: MA452333 IN STOCK	$166.18	1
2M008	LR162042	KIT - BRAKE LINING IN STOCK	LR162042 KIT - BRAKE LINING Axle Set, With Clips / From: MA452334 IN STOCK	$166.18	1
14A382	LR033295	WIRE - BRAKE PAD WEAR WARNING IN STOCK	LR033295 WIRE - BRAKE PAD WEAR WARNING From: GA285153 / To: HA999999 IN STOCK	$38.38	1
14A382	LR084071	WIRE - BRAKE PAD WEAR WARNING IN STOCK	LR084071 WIRE - BRAKE PAD WEAR WARNING From: JA000001 IN STOCK	$36.69	1
2208	LR015523	SCREW - BLEED IN STOCK	LR015523 SCREW - BLEED From: GA285153 IN STOCK	$6.77	2
2390	LR082225	SHIELD - BRAKE DISC SPLASH	LR082225 SHIELD - BRAKE DISC SPLASH RH / From: GA285153	$97.70	1
2390	LR082553	SHIELD - BRAKE DISC SPLASH	LR082553 SHIELD - BRAKE DISC SPLASH LH / From: GA285153	$95.89	1
2552	LR036567	CALIPER - BRAKE	LR036567 CALIPER - BRAKE With Non Painted Brake Calipers / RH / From: GA285153 / To: GA999999	$387.78	1
2552	LR036568	CALIPER - BRAKE	LR036568 CALIPER - BRAKE With Non Painted Brake Calipers / LH / From: GA285153 / To: GA999999	$387.78	1
2552	LR050775	CALIPER - BRAKE	LR050775 CALIPER - BRAKE Brake Calipers - Red / RH / From: GA285153 / To: GA999999	$452.12	1
2552	LR050776	CALIPER - BRAKE	LR050776 CALIPER - BRAKE Brake Calipers - Red / LH / From: GA285153 / To: GA999999	$452.12	1
2552	LR084114	CALIPER - BRAKE	LR084114 CALIPER - BRAKE With Non Painted Brake Calipers / RH / From: HA000001 / To: HA999999	$387.78	1
2552	LR084120	CALIPER - BRAKE	LR084120 CALIPER - BRAKE With Non Painted Brake Calipers / LH / From: HA000001 / To: HA999999	$387.78	1
2552	LR101972	CALIPER - BRAKE	LR101972 CALIPER - BRAKE Brake Calipers - Red / RH / From: HA000001 / To: HA999999	$470.23	1
2552	LR101973	CALIPER - BRAKE	LR101973 CALIPER - BRAKE Brake Calipers - Red / LH / From: HA000001 / To: HA999999	$470.23	1
2552	LR102243	CALIPER - BRAKE	LR102243 CALIPER - BRAKE With Non Painted Brake Calipers / RH / From: JA000001	$282.31	1
2552	LR102244	CALIPER - BRAKE	LR102244 CALIPER - BRAKE Brake Calipers - Red / RH / From: JA000001	$322.11	1
2552	LR102246	CALIPER - BRAKE	LR102246 CALIPER - BRAKE With Non Painted Brake Calipers / LH / From: JA000001	$282.31	1
2552	LR102247	CALIPER - BRAKE	LR102247 CALIPER - BRAKE Brake Calipers - Red / LH / From: JA000001	$282.31	1
2552	LR104022	CALIPER - BRAKE	LR104022 CALIPER - BRAKE Brake Calipers - Black / RH / From: JA000001	$322.11	1
2552	LR104023	CALIPER - BRAKE	LR104023 CALIPER - BRAKE Brake Calipers - Black / LH / From: JA000001	$322.11	1
9069	LR015525	COVER - DUST	LR015525 COVER - DUST Boot / From: GA285153	$24.44	2

Rear Brake Discs And Calipers (Front Disc And Caliper Size 20, Disc And Caliper Size-Frt 20/Rr 20)...

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC]

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] - Rear Brake Discs And Calipers (Front Disc And Caliper Size 20, Disc And Caliper Size-Frt 20/RR 20)...
