Front Axle Case (With Petrol Engines)

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] - Front Axle Case (With Petrol Engines)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB110186 BOLT - HEX.HEAD $1.25 To Order
Photo Part No Description Price (each) Stock
FS110256 BOLT - FLANGED HEX. $1.81 To Order
Photo Part No Description Price (each) Stock
FB110106 BOLT $1.68 IN STOCK
Photo Part No Description Price (each) Stock
LR038977 BOLT $4.89 To Order
Photo Part No Description Price (each) Stock
LR039049 BOLT $5.45 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.48 IN STOCK
Photo Part No Description Price (each) Stock
TYP500100 SCREW $1.18 To Order
Photo Part No Description Price (each) Stock
LR033208 SCREW $6.78 To Order
LR085630 SCREW $4.32 To Order
Photo Part No Description Price (each) Stock
LR050513 SCREW $1.42 To Order
Photo Part No Description Price (each) Stock
LR050515 SCREW $1.22 To Order
Photo Part No Description Price (each) Stock
LR158113 SEAL - OIL $23.05 To Order
LR158113 SEAL - OIL $23.05 To Order
Photo Part No Description Price (each) Stock
LR039595 DIFFERENTIAL - FRONT $5,283.50 To Order
LR039596 DIFFERENTIAL - FRONT $5,494.83 To Order
LR044436 DIFFERENTIAL - FRONT $4,383.95 To Order
...and 23 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
TYB500110 PLUG - OIL DRAIN $4.59 To Order
Photo Part No Description Price (each) Stock
LR039394 HOSE - VENT $15.39 To Order
LR039394 HOSE - VENT $15.39 To Order
LR125891 TUBE - BREATHER $28.63 To Order
Photo Part No Description Price (each) Stock
LR062295 DAMPER - DAMPING MASS $87.65 To Order
Photo Part No Description Price (each) Stock
LR039128 KIT - FDU TUBE $233.90 To Order
LR052323 KIT - FDU TUBE $237.70 To Order
Photo Part No Description Price (each) Stock
LR038842 BRACKET - FDU TUBE SUPPORT $54.21 To Order
Photo Part No Description Price (each) Stock
LR057675 Hose $32.52 To Order
LR100856 HOSE - VENT $41.18 To Order
LR121135 HOSE - VENT $25.06 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR067897 KIT - PINION REPAIR $174.61 To Order
LR158114 KIT - PINION REPAIR $197.11 To Order
Photo Part No Description Price (each) Stock
LR033264 INSULATOR - BUSH TYPE $5.13 To Order
LR060048 INSULATOR - BUSH TYPE $39.93 To Order
Photo Part No Description Price (each) Stock
LR033265 INSULATOR - BUSH TYPE $11.01 To Order
LR056079 INSULATOR - BUSH TYPE $73.62 To Order
LR056079 INSULATOR - BUSH TYPE $73.62 To Order
Photo Part No Description Price (each) Stock
TYB500060 PLUG - FILLER $3.49 To Order
Photo Part No Description Price (each) Stock
LR033205 WASHER - DIFFERENTIAL MOUNTING $16.02 To Order
LR059939 WASHER - DIFFERENTIAL MOUNTING $108.12 To Order
LR087163 WASHER - DIFFERENTIAL MOUNTING $32.60 To Order
Photo Part No Description Price (each) Stock
LR033206 WASHER - DIFFERENTIAL MOUNTING $7.16 To Order
LR059940 WASHER - DIFFERENTIAL MOUNTING $33.23 To Order
LR056077 WASHER - DIFFERENTIAL MOUNTING $54.81 To Order
Photo Part No Description Price (each) Stock
LR033207 WASHER - DIFFERENTIAL MOUNTING $18.11 To Order
LR056078 WASHER - DIFFERENTIAL MOUNTING $41.34 To Order
Photo Part No Description Price (each) Stock
LR019019 SEAL - SPECIAL $19.28 To Order
View All

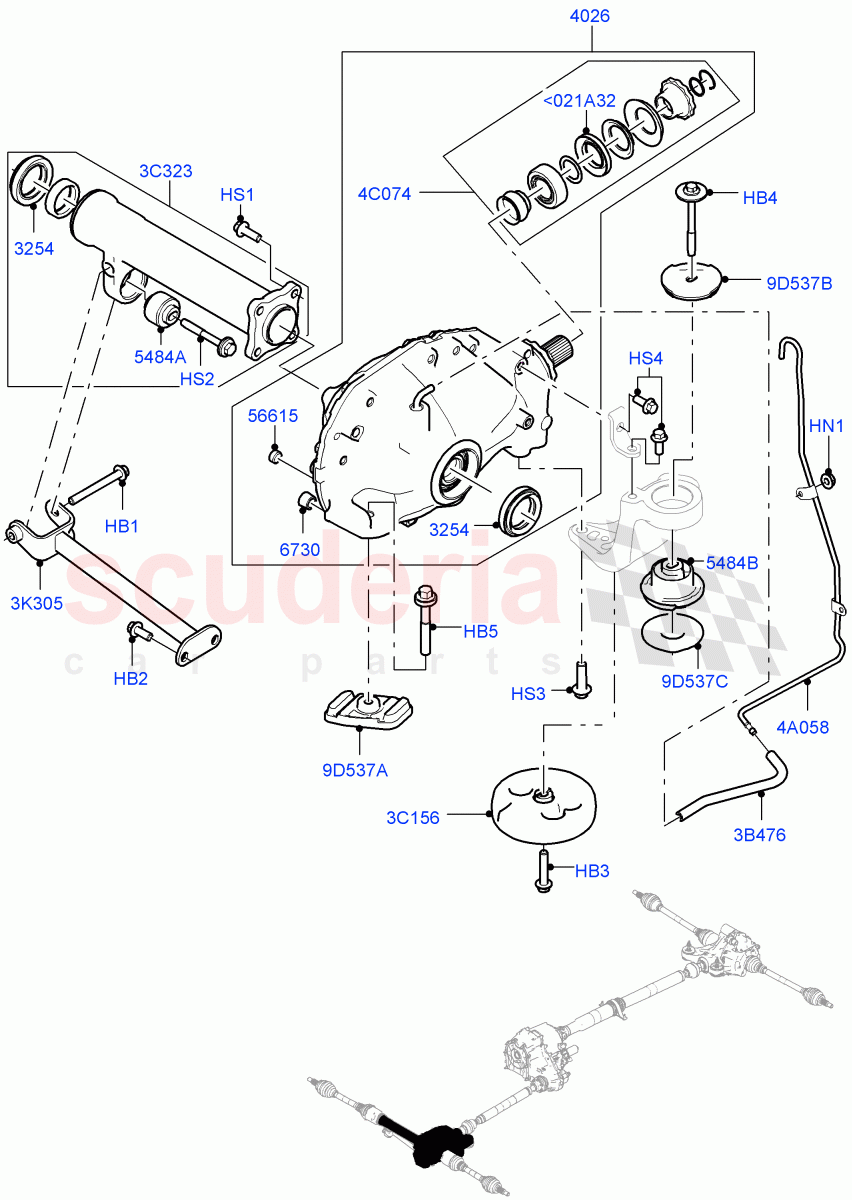

Front Axle Case (With Petrol Engines) of Land Rover Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<021A32 LR019019
SEAL - SPECIAL
Oil 		$19.28 1
HB1 FB110186
BOLT - HEX.HEAD
5.0L OHC SGDI SC V8 Petrol - AJ133 / HEX Flange, M10 X 90MM 		$1.25 1
HB2 FS110256
BOLT - FLANGED HEX.
5.0L OHC SGDI SC V8 Petrol - AJ133 / HEX Flange, M10 X 25MM 		$1.81 2
HB3 FB110106
BOLT
Hexagonal Head, M10 X 50MM
IN STOCK 		$1.68 1
HB4 LR038977
BOLT
Hexagonal Head, M10 X 100 		$4.89 1
HB5 LR039049
BOLT
Hexagonal Head, M12 x 85MM 		$5.45 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.48 2
HS1 TYP500100
SCREW
Hexagonal Head, M10 X 30MM 		$1.18 4
HS2 LR033208
SCREW
M10 X 80MM, Screw And Washer / To: GA999999 		$6.78 1
HS2 LR085630
SCREW
M10 x 75MM, Screw And Washer / From: HA000001 		$4.32 1
HS3 LR050513
SCREW
Hexagonal Head, M12 x 40MM 		$1.42 3
HS4 LR050515
SCREW
Hexagonal Head, M10 x 26MM 		$1.22 2
3B476 LR039394
HOSE - VENT
To: JA999999 		$15.39 1
3B476 LR039394
HOSE - VENT
5.0 Petrol AJ133 DOHC CDA / From: KA000001 		$15.39 1
3B476 LR125891
TUBE - BREATHER
3.0L AJ20P6 Petrol High / From: KA000001 		$28.63 1
3C156 LR062295
DAMPER - DAMPING MASS 		$87.65 1
3C323 LR039128
KIT - FDU TUBE
Front Drive Unit Tube, Includes Tube, Bearing, Seal, Bush And Screw / To: DA122675 		$233.90 1
3C323 LR052323
KIT - FDU TUBE
Front Drive Unit Tube, Includes Tube, Bearing, Seal, Bush And Screw / From: DA122676 		$237.70 1
3K305 LR038842
BRACKET - FDU TUBE SUPPORT
5.0L OHC SGDI SC V8 Petrol - AJ133 		$54.21 1
4A058 LR057675
Hose
2.0L 16V TIVCT T/C 240PS Petrol / Breather Pipe / From: FA000001 		$32.52 1
4A058 LR100856
HOSE - VENT
2.0L AJ200P Hi PHEV / Breather Pipe / From: JA000001 		$41.18 1
4A058 LR121135
HOSE - VENT
3.0L AJ20P6 Petrol High / Breather Pipe / From: KA000001 		$25.06 1
4A058 LR038826
HOSE - VENT
5.0L P AJ133 DOHC CDA S/C Enhanced 		$35.82 1
4C074 LR067897
KIT - PINION REPAIR
Includes Seal / To: LA999999 		$174.61 1
4C074 LR158114
KIT - PINION REPAIR
Includes Seal / From: MA000001 		$197.11 1
9D537A LR033205
WASHER - DIFFERENTIAL MOUNTING
5.0L OHC SGDI NA V8 Petrol - AJ133 / Front 		$16.02 1
9D537A LR059939
WASHER - DIFFERENTIAL MOUNTING
2.0L 16V TIVCT T/C 240PS Petrol / Front / From: FA000001 		$108.12 1
9D537A LR087163
WASHER - DIFFERENTIAL MOUNTING
2.0L AJ200P Hi PHEV / Front / From: JA000001 		$32.60 1
9D537B LR033206
WASHER - DIFFERENTIAL MOUNTING
5.0L OHC SGDI NA V8 Petrol - AJ133 / Rear, Upper 		$7.16 1
9D537B LR059940
WASHER - DIFFERENTIAL MOUNTING
2.0L 16V TIVCT T/C 240PS Petrol / Rear, Upper / From: FA000001 		$33.23 1
9D537B LR056077
WASHER - DIFFERENTIAL MOUNTING
2.0L AJ200P Hi PHEV / Rear, Upper / From: JA000001 		$54.81 1
9D537C LR033207
WASHER - DIFFERENTIAL MOUNTING
5.0L OHC SGDI SC V8 Petrol - AJ133 / Lower, Rear 		$18.11 1
9D537C LR056078
WASHER - DIFFERENTIAL MOUNTING
2.0L AJ200P Hi PHEV / Lower, Rear / From: JA000001 		$41.34 1
3254 LR158113
SEAL - OIL
Driveshaft / To: LA999999 		$23.05 2
3254 LR158113
SEAL - OIL
Driveshaft / From: MA000001 		$23.05 2
4026 LR039595
DIFFERENTIAL - FRONT
5.0L OHC SGDI NA V8 Petrol - AJ133 / To: EA167395 		$5,283.50 1
4026 LR039596
DIFFERENTIAL - FRONT
5.0L OHC SGDI SC V8 Petrol - AJ133 / To: EA167395 		$5,494.83 1
4026 LR044436
DIFFERENTIAL - FRONT
3.0L DOHC GDI SC V6 PETROL / From: EA000001 / To: EA167395 		$4,383.95 1
4026 LR059058
DIFFERENTIAL - FRONT
3.0L DOHC GDI SC V6 PETROL / From: EA167396 / To: EA999999 		$4,470.75 1
4026 LR059047
DIFFERENTIAL - FRONT
5.0L OHC SGDI SC V8 Petrol - AJ133 / From: EA167396 / To: FA210880 		$3,645.02 1
4026 LR059048
DIFFERENTIAL - FRONT
5.0L OHC SGDI NA V8 Petrol - AJ133 / From: EA167396 / To: FA210880 		$3,335.90 1
4026 LR066510
DIFFERENTIAL - FRONT
5.0L OHC SGDI SC V8 Petrol - AJ133 / From: FA210881 / To: GA999999 		$5,711.16 1
4026 LR066509
DIFFERENTIAL - FRONT
5.0L OHC SGDI NA V8 Petrol - AJ133 / From: FA210881 / To: GA298486 		$3,335.90 1
4026 LR058300
Differential
2.0L 16V TIVCT T/C 240PS Petrol 		$2,511.83 1
4026 LR070133
DIFFERENTIAL - FRONT
5.0L OHC SGDI NA V8 Petrol - AJ133 / New Part-Please Check For Reman Version / From: GA298487 		$4,358.16 1
4026 LR089557
DIFFERENTIAL - FRONT
3.0L DOHC GDI SC V6 PETROL / New Part-Please Check For Reman Version / From: HA000001 		$3,931.10 1
4026 LR066508
DIFFERENTIAL - FRONT
3.0L DOHC GDI SC V6 PETROL / New Part-Please Check For Reman Version / From: FA000001 / To: GA999999 		$4,443.96 1
4026 LR089553
DIFFERENTIAL - FRONT
5.0L OHC SGDI SC V8 Petrol - AJ133 / New Part-Please Check For Reman Version / From: HA000001 / To: HA999999 		$3,931.10 1
4026 LR108815
DIFFERENTIAL - FRONT
2.0L AJ200P Hi PHEV / New Part-Please Check For Reman Version / From: JA000001 / To: LA999999 		$3,715.26 1
4026 LR089553
DIFFERENTIAL - FRONT
5.0 Petrol AJ133 DOHC CDA / New Part-Please Check For Reman Version / From: JA000001 / To: LA410148 		$3,931.10 1
4026 LR125192
DIFFERENTIAL - FRONT
3.0L AJ20P6 Petrol High / From: KA000001 / To: LA999999 		$5,019.14 1
4026 LR139177
DIFFERENTIAL - FRONT
5.0L P AJ133 DOHC CDA S/C Enhanced / From: LA410149 / To: LA999999 		$5,437.51 1
4026 LR142553
DIFFERENTIAL - FRONT
5.0 Petrol AJ133 DOHC CDA / From: MA000001 		$3,288.85 1
4026 LR141947
DIFFERENTIAL - FRONT
3.0L AJ20P6 Petrol High / From: MA000001 		$3,610.23 1
4026 LR141951
DIFFERENTIAL - FRONT
2.0L AJ200P Hi PHEV / From: MA000001 		$3,094.22 1
4026 LR070134
DIFFERENTIAL - FRONT
5.0L OHC SGDI NA V8 Petrol - AJ133 / Remanufactured Part / From: GA298487 		$2,369.61 1
4026 LR124991
DIFFERENTIAL - FRONT
5.0L OHC SGDI SC V8 Petrol - AJ133 / Remanufactured Part / From: HA000001 / To: HA999999 		$2,496.21 1
4026 LR124991
DIFFERENTIAL - FRONT
5.0L P AJ133 DOHC CDA S/C Enhanced / Remanufactured Part / From: JA000001 / To: LA410148 		$2,496.21 1
4026 LR124993
DIFFERENTIAL - FRONT
3.0L DOHC GDI SC V6 PETROL / Remanufactured Part / From: HA000001 		$1,999.13 1
4026 LR125038
DIFFERENTIAL - FRONT
2.0L AJ200P Hi PHEV / Remanufactured Part / From: JA000001 / To: LA999999 		$2,209.03 1
4026 LR142671
DIFFERENTIAL - FRONT
3.0L DOHC GDI SC V6 PETROL / Remanufactured Part / From: FA000001 / To: GA999999 		$2,259.05 1
5484A LR033264
INSULATOR - BUSH TYPE
Front Drive Unit Tube / To: EA143866 		$5.13 1
5484A LR060048
INSULATOR - BUSH TYPE
Front Drive Unit Tube / From: EA143867 		$39.93 1
5484B LR033265
INSULATOR - BUSH TYPE
5.0L OHC SGDI NA V8 Petrol - AJ133 / Differential / To: LA999999 		$11.01 1
5484B LR056079
INSULATOR - BUSH TYPE
Differential / From: MA000001 		$73.62 1
5484B LR056079
INSULATOR - BUSH TYPE
2.0L AJ200P Hi PHEV / From: JA000001 / To: LA999999 		$73.62 1
6730 TYB500110
PLUG - OIL DRAIN
Drain Plug, Plug - Oil Drain 		$4.59 1
56615 TYB500060
PLUG - FILLER
Filler Plug 		$3.49 1
