Fuel Lines (Rear) (4.4L Dohc Ditc V8 Diesel)

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] - Fuel Lines (Rear) (4.4L DOHC DITC V8 Diesel)

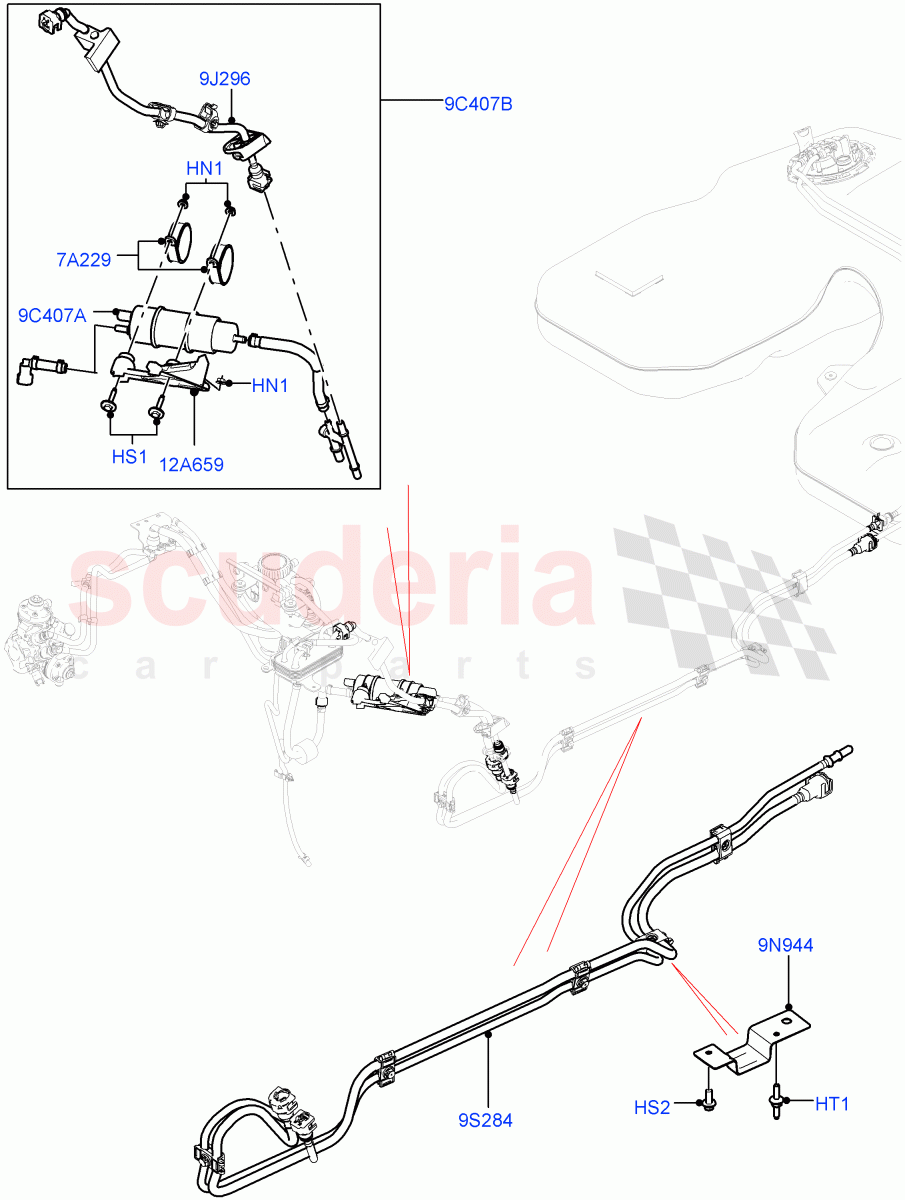

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
RYG500900 SCREW $4.20 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR023066 BRACKET - FUEL PUMP $7.02 To Order
Photo Part No Description Price (each) Stock
LR036780 TUBE - FUEL RETURN $79.13 To Order
Photo Part No Description Price (each) Stock
LR068074 BRACKET - FUEL TUBE SUPPORT $31.76 To Order
LR082760 BRACKET - FUEL TUBE SUPPORT $11.16 To Order
Photo Part No Description Price (each) Stock
LR044705 TUBE - FUEL SUPPLY AND VAPOUR $126.38 To Order
LR055689 TUBE - FUEL SUPPLY AND VAPOUR $280.62 To Order
LR052076 TUBE - FUEL SUPPLY AND VAPOUR $289.80 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR138403 BRACKET - CONTROL MODULE $10.62 To Order
Photo Part No Description Price (each) Stock
LR023043 PUMP - FUEL $371.51 To Order
Photo Part No Description Price (each) Stock
LR038431 PUMP - FUEL $656.71 To Order
View All
Fuel Lines (Rear) (4.4L DOHC DITC V8 Diesel) of Land Rover Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.46 2
HS1 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 		$4.20 2
HS2 FS106166
SCREW
Hexagonal Head, M6 X 16MM
IN STOCK 		$1.24 2
7A229 LR023066
BRACKET - FUEL PUMP
For Fuel Pump 		$7.02 2
9C407A LR023043
PUMP - FUEL 		$371.51 1
9C407B LR038431
PUMP - FUEL
With Connection Tubes And Fixings 		$656.71 1
9J296 LR036780
TUBE - FUEL RETURN
From Fuel Cooler To Fuel Tank 		$79.13 1
9N944 LR068074
BRACKET - FUEL TUBE SUPPORT
To: GA999999 		$31.76 1
9N944 LR082760
BRACKET - FUEL TUBE SUPPORT
From: HA000001 		$11.16 1
9S284 LR044705
TUBE - FUEL SUPPLY AND VAPOUR
Standard Wheelbase / Rear, Set Of 2 Pieces / To: EA137631 		$126.38 1
9S284 LR055689
TUBE - FUEL SUPPLY AND VAPOUR
Standard Wheelbase / Rear, Set Of 2 Pieces / From: EA137632 / To: EA166166 		$280.62 1
9S284 LR052076
TUBE - FUEL SUPPLY AND VAPOUR
Long Wheelbase / Rear, Set Of 2 Pieces / From: EA000001 / To: GA287639 		$289.80 1
9S284 LR062453
TUBE - FUEL SUPPLY AND VAPOUR
Standard Wheelbase / Rear, Set Of 2 Pieces / From: EA166167 / To: GA274028 		$401.18 1
9S284 LR072676
TUBE - FUEL SUPPLY AND VAPOUR
Standard Wheelbase / Rear, Set Of 2 Pieces / From: GA274029 / To: HA351986 		$332.13 1
9S284 LR086378
TUBE - FUEL SUPPLY AND VAPOUR
Long Wheelbase / Rear, Set Of 2 Pieces / From: GA287640 / To: GA999999 		$284.38 1
9S284 LR086378
TUBE - FUEL SUPPLY AND VAPOUR
Long Wheelbase / Rear, Set Of 2 Pieces / From: HA000001 		$284.38 1
9S284 LR086377
TUBE - FUEL SUPPLY AND VAPOUR
Standard Wheelbase / Rear, Set Of 2 Pieces / From: HA351987 		$213.12 1
12A659 LR138403
BRACKET - CONTROL MODULE
To Body 		$10.62 1
