Fuel Injectors And Pipes (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] - Fuel Injectors And Pipes (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000628 BOLT $4.61 To Order
Photo Part No Description Price (each) Stock
1387730 BOLT $1.48 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR022992 O-RING $4.82 IN STOCK
Photo Part No Description Price (each) Stock
LR022994 O-RING $4.99 To Order
Photo Part No Description Price (each) Stock
LR000621 SCREW $0.65 To Order
Photo Part No Description Price (each) Stock
RYG500190 SCREW $0.73 IN STOCK
Photo Part No Description Price (each) Stock
LR022774 SHIELD - FUEL INJECTORS $19.27 To Order
LR022776 SHIELD - FUEL INJECTORS $19.27 IN STOCK
Photo Part No Description Price (each) Stock
LR022984 WIRE - GLOW PLUG $126.70 To Order
LR022986 WIRE - GLOW PLUG $140.73 To Order
LR093137 WIRE - GLOW PLUG $118.72 IN STOCK
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR022807 BRACKET - FUEL TUBE SUPPORT $448.07 To Order
Photo Part No Description Price (each) Stock
LR022584 PIPE - FUEL $123.75 To Order
Photo Part No Description Price (each) Stock
LR032817 CLAMP - FUEL INJECTION $35.65 To Order
Photo Part No Description Price (each) Stock
LR020692 REGULATOR - FUEL PRESSURE $342.74 To Order
Photo Part No Description Price (each) Stock
LR022972 TUBE - FUEL $53.84 To Order
LR022973 TUBE - FUEL $54.59 To Order
LR022974 TUBE - FUEL $59.33 To Order
...and 13 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR112662 WIRE - FUEL PRESSURE SENSOR $78.00 To Order
LR085463 WIRE - FUEL PRESSURE SENSOR $78.00 To Order
LR112662 WIRE - FUEL PRESSURE SENSOR $78.00 To Order
Photo Part No Description Price (each) Stock
LR032818 WASHER - SEALING $3.13 IN STOCK
Photo Part No Description Price (each) Stock
LR054298 INJECTOR - FUEL $869.71 To Order
LR066229 INJECTOR - FUEL $908.36 To Order
LR054296 INJECTOR - FUEL $643.82 To Order
Photo Part No Description Price (each) Stock
LR020693 SENSOR - FUEL PRESSURE $112.36 To Order
LR164042 SENSOR - FUEL PRESSURE $161.57 To Order
Photo Part No Description Price (each) Stock
LR022590 TUBE - LEAK OFF $221.74 To Order
Photo Part No Description Price (each) Stock
LR022587 TUBE - FUEL FEED $55.56 To Order
Photo Part No Description Price (each) Stock
LR033074 KIT - INJECTOR REFIT $129.51 To Order
LR033075 KIT - INJECTOR REFIT $133.79 To Order
LR033076 KIT - INJECTOR REFIT $134.73 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR013275 GLOW PLUG $84.69 To Order
Photo Part No Description Price (each) Stock
LR002456 CLIP $10.49 To Order
Photo Part No Description Price (each) Stock
LR002751 CLIP $1.82 To Order
Photo Part No Description Price (each) Stock
LR022763 PIPE - FUEL $61.06 To Order
LR052507 PIPE - FUEL $32.00 To Order
Photo Part No Description Price (each) Stock
LR022764 PIPE - FUEL $68.00 To Order
LR052508 PIPE - FUEL $33.77 To Order
Photo Part No Description Price (each) Stock
LR023247 PIPE - FUEL $74.16 To Order
LR052505 PIPE - FUEL $48.61 To Order
Photo Part No Description Price (each) Stock
LR022982 MANIFOLD - FUEL SUPPLY $452.89 To Order
LR164040 MANIFOLD - FUEL SUPPLY $459.73 To Order
Photo Part No Description Price (each) Stock
LR022983 MANIFOLD - FUEL SUPPLY $466.54 To Order
Photo Part No Description Price (each) Stock
LR022923 INSULATOR - FUEL INJECTORS $41.67 To Order
LR022925 INSULATOR - FUEL INJECTORS $44.83 IN STOCK
Photo Part No Description Price (each) Stock
LR022930 INSULATOR - FUEL INJECTORS $67.13 IN STOCK
LR035620 INSULATOR - FUEL INJECTORS $84.38 To Order
View All

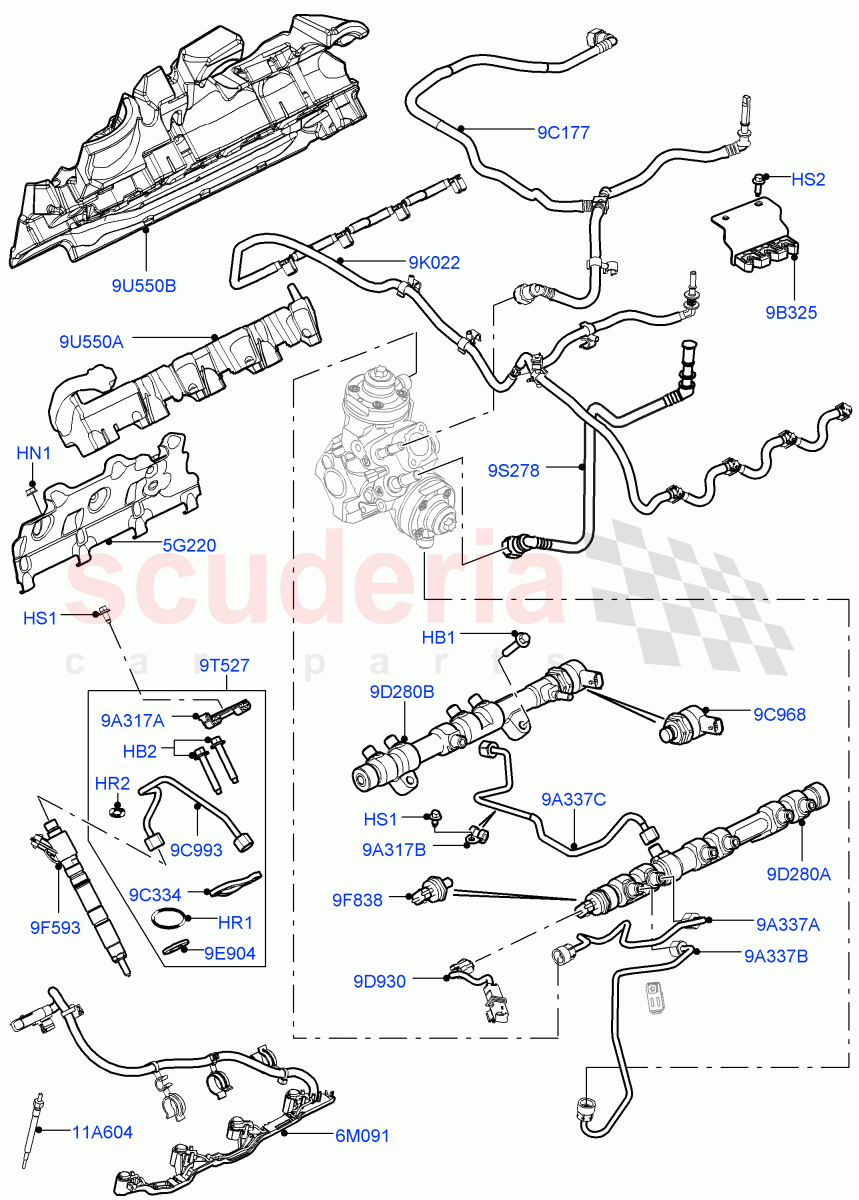

Fuel Injectors And Pipes (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR000628
BOLT
Fuel Rail, Hexagonal Head, M8 x 40MM 		$4.61 5
HB2 1387730
BOLT
Fuel Injector, M6 x 35MM 		$1.48 16
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6, Shield
IN STOCK 		$1.46 10
HR1 LR022992
O-RING
Lower
IN STOCK 		$4.82 8
HR2 LR022994
O-RING
Upper 		$4.99 8
HS1 LR000621
SCREW
Clip, For Fuel Tube, M6 X 10MM 		$0.65 5
HS2 RYG500190
SCREW
Hexagonal Head, M6 X 16MM, Oil Tube Bracket
IN STOCK 		$0.73 2
5G220 LR022774
SHIELD - FUEL INJECTORS
LH, Fuel Injectors 		$19.27 1
5G220 LR022776
SHIELD - FUEL INJECTORS
RH, Fuel Injectors
IN STOCK 		$19.27 1
6M091 LR022984
WIRE - GLOW PLUG
LH / To: FA229874 		$126.70 1
6M091 LR022986
WIRE - GLOW PLUG
RH / To: FA229875 		$140.73 1
6M091 LR093137
WIRE - GLOW PLUG
From: GA000001 / To: GA310714
IN STOCK 		$118.72 2
6M091 LR093137
WIRE - GLOW PLUG
From: GA310715
IN STOCK 		$118.72 2
6M091 LR085464
WIRE - GLOW PLUG
LH / From: FA229875 / To: FA999999 		$193.40 1
6M091 LR085465
WIRE - GLOW PLUG
RH / From: FA229876 / To: FA999999 		$190.52 1
9A317A LR002456
CLIP
Clip-Fuel Tube(Dual Latch) 		$10.49 4
9A317B LR002751
CLIP
Balance Pipe, For Fuel Tube 		$1.82 1
9A337A LR022763
PIPE - FUEL
Fuel Lines To Fuel Rail, Supply From Pump, Upper / To: DA100500 		$61.06 1
9A337A LR052507
PIPE - FUEL
Fuel Lines To Fuel Rail, Supply From Pump, Upper / From: DA100501 		$32.00 1
9A337B LR022764
PIPE - FUEL
Fuel Lines To Fuel Rail, Lower, Supply From Pump / To: DA100500 		$68.00 1
9A337B LR052508
PIPE - FUEL
Fuel Lines To Fuel Rail, Lower, Supply From Pump / From: DA100501 		$33.77 1
9A337C LR023247
PIPE - FUEL
Balance Pipe / To: DA100500 		$74.16 1
9A337C LR052505
PIPE - FUEL
Balance Pipe / From: DA100501 		$48.61 1
9B325 LR022807
BRACKET - FUEL TUBE SUPPORT 		$448.07 1
9C177 LR022584
PIPE - FUEL 		$123.75 1
9C334 LR032817
CLAMP - FUEL INJECTION
Fuel Injector 		$35.65 8
9C968 LR020692
REGULATOR - FUEL PRESSURE 		$342.74 1
9C993 LR022972
TUBE - FUEL
Cylinder No. 8, Fuel Rail To Injector / To: DA100500 		$53.84 1
9C993 LR022973
TUBE - FUEL
Cylinder No. 7, Fuel Rail To Injector / To: DA100500 		$54.59 1
9C993 LR022974
TUBE - FUEL
Cylinder No.6, Fuel Rail To Injector / To: DA100500 		$59.33 1
9C993 LR022975
TUBE - FUEL
Cylinder No.5, Fuel Rail To Injector / To: DA100500 		$59.33 1
9C993 LR022976
TUBE - FUEL
Cylinder No.4, Fuel Rail To Injector / To: DA100500 		$54.95 1
9C993 LR022977
TUBE - FUEL
Cylinder No.3, Fuel Rail To Injector / To: DA100500 		$54.95 1
9C993 LR022978
TUBE - FUEL
Cylinder No.2, Fuel Rail To Injector / To: DA100500 		$59.33 1
9C993 LR022979
TUBE - FUEL
Cylinder No.1, Fuel Rail To Injector / To: DA100500 		$59.33 1
9C993 LR052495
TUBE - FUEL
Cylinder No. 8, Fuel Rail To Injector / From: DA100501 		$31.95 1
9C993 LR052496
TUBE - FUEL
Cylinder No. 7, Fuel Rail To Injector / From: DA100501 		$37.97 1
9C993 LR052497
TUBE - FUEL
Cylinder No.6, Fuel Rail To Injector / From: DA100501 		$26.25 1
9C993 LR052498
TUBE - FUEL
Cylinder No.5, Fuel Rail To Injector / From: DA100501 		$27.13 1
9C993 LR052499
TUBE - FUEL
Cylinder No.4, Fuel Rail To Injector / From: DA100501 		$29.67 1
9C993 LR052500
TUBE - FUEL
Cylinder No.3, Fuel Rail To Injector / From: DA100501 		$29.51 1
9C993 LR052501
TUBE - FUEL
Cylinder No.2, Fuel Rail To Injector / From: DA100501 		$27.86 1
9C993 LR052502
TUBE - FUEL
Cylinder No.1, Fuel Rail To Injector / From: DA100501 		$27.86 1
9D280A LR022982
MANIFOLD - FUEL SUPPLY
LH, Includes Fuel Pressure Sensor / To: MA456532 		$452.89 1
9D280A LR164040
MANIFOLD - FUEL SUPPLY
LH, Includes Fuel Pressure Sensor / From: MA456533 		$459.73 1
9D280B LR022983
MANIFOLD - FUEL SUPPLY
RH, With Valve 		$466.54 1
9D930 LR112662
WIRE - FUEL PRESSURE SENSOR
Fuel Pressure Sensor / To: FA999999 		$78.00 1
9D930 LR085463
WIRE - FUEL PRESSURE SENSOR
Fuel Pressure Sensor / From: GA000001 / To: HA378722 		$78.00 1
9D930 LR112662
WIRE - FUEL PRESSURE SENSOR
Fuel Pressure Sensor / From: HA378723 		$78.00 1
9E904 LR032818
WASHER - SEALING
To Fuel Injectors
IN STOCK 		$3.13 8
9F593 LR054298
INJECTOR - FUEL
New Part-Please Check For Reman Version / To: EA172844 		$869.71 8
9F593 LR066229
INJECTOR - FUEL
New Part-Please Check For Reman Version / From: EA172845 		$908.36 8
9F593 LR054296
INJECTOR - FUEL
Remanufactured Part 		$643.82 8
9F838 LR020693
SENSOR - FUEL PRESSURE
Sensor - Fuel Rail Pressure / To: MA456532 		$112.36 1
9F838 LR164042
SENSOR - FUEL PRESSURE
Sensor - Fuel Rail Pressure / From: MA456533 		$161.57 1
9K022 LR022590
TUBE - LEAK OFF
Leak Off, To Fuel Injectors 		$221.74 1
9S278 LR022587
TUBE - FUEL FEED
Feed 		$55.56 1
9T527 LR033074
KIT - INJECTOR REFIT
Cylinder No. 8 		$129.51 1
9T527 LR033075
KIT - INJECTOR REFIT
Cylinder No. 7 		$133.79 1
9T527 LR033076
KIT - INJECTOR REFIT
Cylinder No.6 		$134.73 1
9T527 LR033077
KIT - INJECTOR REFIT
Cylinder No.5 		$134.73 1
9T527 LR033078
KIT - INJECTOR REFIT
Cylinder No.4 		$106.63 1
9T527 LR033079
KIT - INJECTOR REFIT
Cylinder No.3 		$106.63 1
9T527 LR033080
KIT - INJECTOR REFIT
Cylinder No.2 		$106.63 1
9T527 LR033081
KIT - INJECTOR REFIT
Cylinder No.1 		$105.93 1
9U550A LR022923
INSULATOR - FUEL INJECTORS
Fuel Injectors, LH Lower 		$41.67 1
9U550A LR022925
INSULATOR - FUEL INJECTORS
Fuel Injectors, RH Lower
IN STOCK 		$44.83 1
9U550B LR022930
INSULATOR - FUEL INJECTORS
Fuel Injectors, RH Upper
IN STOCK 		$67.13 1
9U550B LR035620
INSULATOR - FUEL INJECTORS
Fuel Injectors, LH Upper 		$84.38 1
11A604 LR013275
GLOW PLUG 		$84.69 8
