Name: Emission Control - Crankcase (4.4L DOHC DITC V8 Diesel)
Rating: 4.7 (1 reviews)

View All

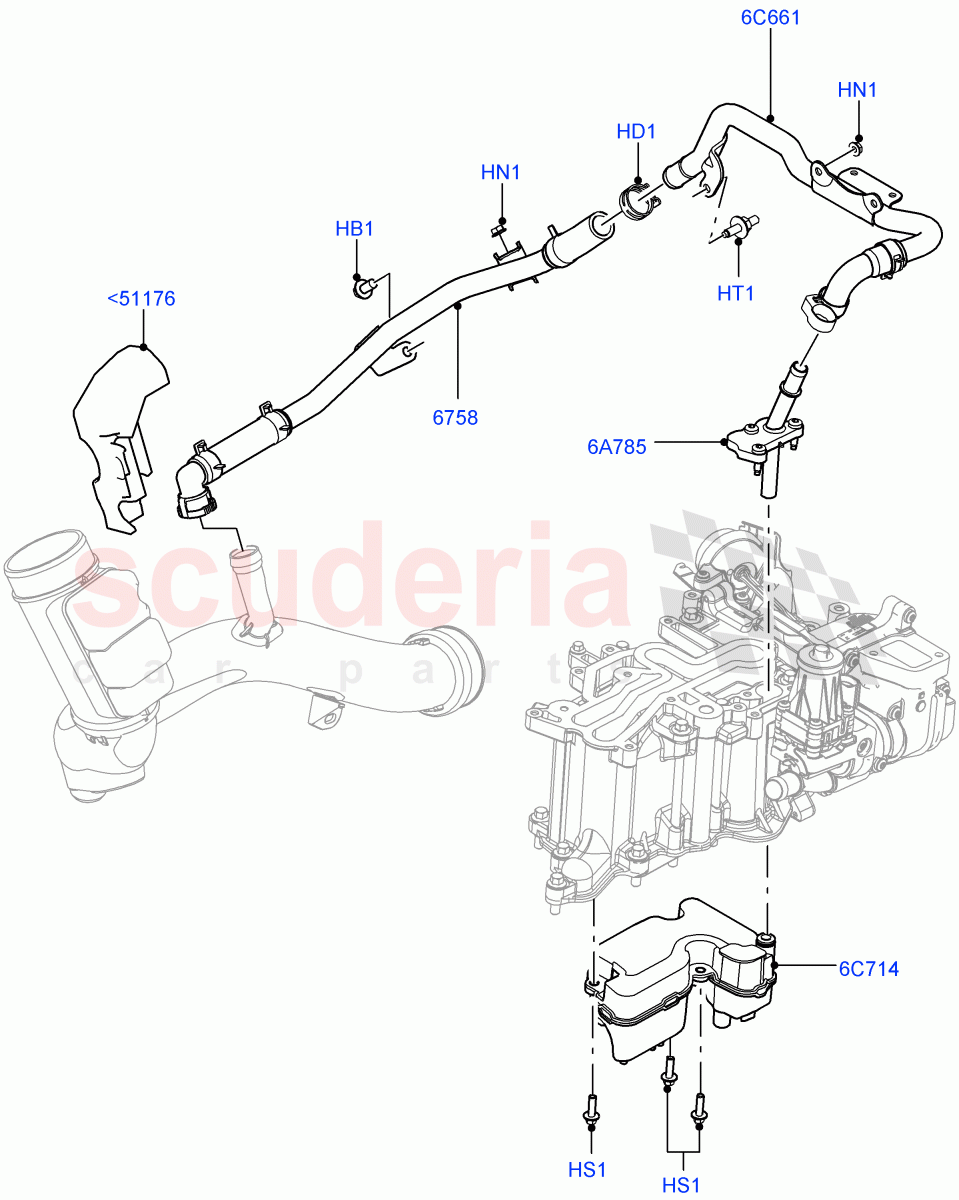

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR023103	CLAMP - HOSE	$5.49	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	$1.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4558527	SCREW	$0.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023353	STUD	$3.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022907	SEPARATOR - OIL	$71.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043719	HOSE - OIL SEPARATOR	$95.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022761	RESERVOIR - OIL SEPARATOR	$71.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042450	COVER - INSULATOR	$46.01	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<51176	LR042450	COVER - INSULATOR	LR042450 COVER - INSULATOR Engine Vent Hose - Insulated Extrem	$46.01	1
HB1	FS108166	BOLT IN STOCK	FS108166 BOLT Hexagonal Head, M8 X 16MM, Ventilation Tube IN STOCK	$0.68	1
HD1	LR023103	CLAMP - HOSE	LR023103 CLAMP - HOSE Ventilation Tube	$5.49	1
HN1	FN106042	NUT IN STOCK	FN106042 NUT Hexagonal Head, M6, Ventilation Tube IN STOCK	$1.03	3
HS1	4558527	SCREW	4558527 SCREW M6 X 20MM, Reservoir	$0.80	3
HT1	LR023353	STUD	LR023353 STUD Ventilation Tube	$3.72	1
6A785	LR022907	SEPARATOR - OIL	LR022907 SEPARATOR - OIL Outlet Tube, With Fixing Parts, With Gasket	$71.82	1
6C661	LR043719	HOSE - OIL SEPARATOR	LR043719 HOSE - OIL SEPARATOR Engine Ventilation, From Separator To Inlet Hose	$95.39	1
6C714	LR022761	RESERVOIR - OIL SEPARATOR	LR022761 RESERVOIR - OIL SEPARATOR Oil Separator	$71.37	1
6758	LR042466	TUBE - CRANKCASE VENTILATION	LR042466 TUBE - CRANKCASE VENTILATION Engine Vent Hose - Insulated Extrem / Engine Ventilation, To Turbocharger Inlet Hose	$122.76	1
6758	LR037749	TUBE - CRANKCASE VENTILATION	LR037749 TUBE - CRANKCASE VENTILATION Engine Vent Hose / Engine Ventilation, To Turbocharger Inlet Hose	$117.14	1

Emission Control - Crankcase (4.4L Dohc Ditc V8 Diesel)

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC]
