Intercooler/Air Ducts And Hoses (Air Ducts And Hoses) (4.4L Dohc Ditc V8 Diesel)

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] - Intercooler/Air Ducts And Hoses (Air Ducts And Hoses) (4.4L DOHC DITC V8 Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106106 BOLT $0.92 To Order
Photo Part No Description Price (each) Stock
LR016628 CLAMP - TUBE $2.77 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
RYP500200 SCREW $0.95 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR018508 SCREW $0.96 To Order
Photo Part No Description Price (each) Stock
LR035755 TUBE - SCOP SENSOR $37.56 To Order
Photo Part No Description Price (each) Stock
LR036508 CONNECTOR - HOSE $160.88 To Order
LR057899 CONNECTOR - HOSE $81.61 To Order
LR062675 CONNECTOR - HOSE $123.38 To Order
Photo Part No Description Price (each) Stock
LR035759 PIPE - TURBO BOOST $87.50 To Order
Photo Part No Description Price (each) Stock
LR036490 BRACKET - TUBE $10.54 To Order
Photo Part No Description Price (each) Stock
C2D47313 SENSOR - AIR CHARGE Enquire To Order
Photo Part No Description Price (each) Stock
LR036485 HOSE - COMPRESSED AIR $105.12 To Order
LR060680 HOSE - COMPRESSED AIR $221.38 To Order
Photo Part No Description Price (each) Stock
LR036500 HOSE - COMPRESSED AIR $125.07 To Order
LR060674 HOSE - COMPRESSED AIR $151.91 To Order
Photo Part No Description Price (each) Stock
LR036483 HOSE - COMPRESSED AIR $120.38 To Order
LR056337 HOSE - COMPRESSED AIR $158.96 To Order
Photo Part No Description Price (each) Stock
LR036488 HOSE - COMPRESSED AIR $111.70 To Order
LR054617 HOSE - COMPRESSED AIR $182.09 To Order
LR056253 HOSE - COMPRESSED AIR $124.58 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR036476 HOSE - COMPRESSED AIR $200.96 To Order
Photo Part No Description Price (each) Stock
LR036477 HOSE - COMPRESSED AIR $131.29 To Order
Photo Part No Description Price (each) Stock
LR036484 HOSE - COMPRESSED AIR $221.07 To Order
Photo Part No Description Price (each) Stock
LR036482 TUBE - OUTLET $145.86 To Order
LR056329 TUBE - OUTLET $140.37 To Order
Photo Part No Description Price (each) Stock
LR036487 TUBE - OUTLET $197.89 To Order
LR048455 TUBE - OUTLET $150.18 To Order
LR056348 TUBE - OUTLET $276.14 To Order
Photo Part No Description Price (each) Stock
LR036414 SEAL - H-PIECE - HP AIR DUCTS $35.35 To Order
View All

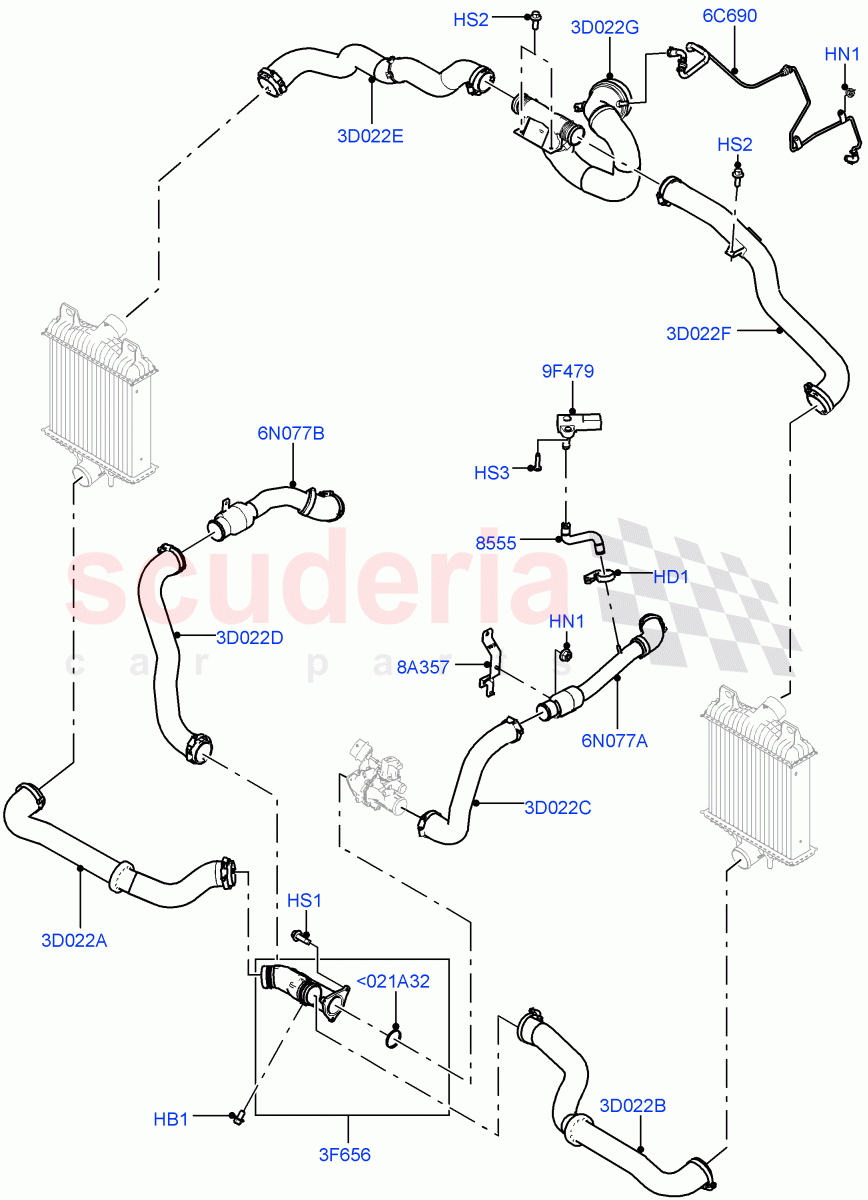

Intercooler/Air Ducts And Hoses (Air Ducts And Hoses) (4.4L DOHC DITC V8 Diesel) of Land Rover Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<021A32 LR036414
SEAL - H-PIECE - HP AIR DUCTS
H-Connector 		$35.35 1
HB1 FS106106
BOLT
Hexagonal Head, M6 X 10MM 		$0.92 1
HD1 LR016628
CLAMP - TUBE
Hose Clamp, Secondary Compressor Outlet Pressure Sensor, Tube 		$2.77 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.47 3
HS1 RYP500200
SCREW
HEX Flange, Hexagonal Head, M6 X 20MM 		$0.95 3
HS2 FS106166
SCREW
Hexagonal Head, M6 X 16MM
IN STOCK 		$1.24 3
HS3 LR018508
SCREW
M5 x 20MM, Torx 		$0.96 1
3D022A LR036485
HOSE - COMPRESSED AIR
RH, Intercooler Inlet, With Clamps / To: EA152724 		$105.12 1
3D022A LR060680
HOSE - COMPRESSED AIR
RH, Intercooler Inlet, With Clamps / From: EA152725 		$221.38 1
3D022B LR036500
HOSE - COMPRESSED AIR
LH, Intercooler Inlet, With Clamps / To: EA152724 		$125.07 1
3D022B LR060674
HOSE - COMPRESSED AIR
LH, Intercooler Inlet, With Clamps / From: EA152725 		$151.91 1
3D022C LR036483
HOSE - COMPRESSED AIR
Inlet, Shut Off Valve, With Clamps / To: EA134487 		$120.38 1
3D022C LR056337
HOSE - COMPRESSED AIR
Inlet, Shut Off Valve, With Clamps / From: EA134488 		$158.96 1
3D022D LR036488
HOSE - COMPRESSED AIR
H-Connector, Inlet, With Clamps / To: DA099999 		$111.70 1
3D022D LR054617
HOSE - COMPRESSED AIR
H-Connector, Inlet, Please Refer To SSM (Special Service Message) - 65517, With Clamps / From: DA100000 / To: EA127475 		$182.09 1
3D022D LR056253
HOSE - COMPRESSED AIR
H-Connector, Inlet, With Clamps / From: EA127476 / To: EA152724 		$124.58 1
3D022D LR060649
HOSE - COMPRESSED AIR
H-Connector, Inlet, With Clamps / From: EA152725 		$126.40 1
3D022E LR036476
HOSE - COMPRESSED AIR
RH, Intercooler Outlet, With Clamps 		$200.96 1
3D022F LR036477
HOSE - COMPRESSED AIR
LH, Intercooler Outlet, With Clamps 		$131.29 1
3D022G LR036484
HOSE - COMPRESSED AIR
Intercooler To Throttle Body, With Clamps 		$221.07 1
3F656 LR036508
CONNECTOR - HOSE
H-Connector / To: EA130978 		$160.88 1
3F656 LR057899
CONNECTOR - HOSE
H-Connector / From: EA130979 / To: EA177525 		$81.61 1
3F656 LR062675
CONNECTOR - HOSE
H-Connector / From: EA177526 		$123.38 1
6C690 LR035759
PIPE - TURBO BOOST 		$87.50 1
6N077A LR036482
TUBE - OUTLET
LH, Turbocharger Outlet, With Clamps / To: EA134487 		$145.86 1
6N077A LR056329
TUBE - OUTLET
LH, Turbocharger Outlet, With Clamps / From: EA134488 		$140.37 1
6N077B LR036487
TUBE - OUTLET
RH, Turbocharger Outlet, With Clamps / To: DA119471 		$197.89 1
6N077B LR048455
TUBE - OUTLET
RH, Turbocharger Outlet, With Clamps / From: DA119472 / To: EA134487 		$150.18 1
6N077B LR056348
TUBE - OUTLET
RH, Turbocharger Outlet, With Clamps / From: EA134488 		$276.14 1
8A357 LR036490
BRACKET - TUBE
Tube, Turbocharger Outlet 		$10.54 1
9F479 C2D47313
SENSOR - AIR CHARGE
Secondary Compressor Outlet Pressure Sensor 		- 1 Enquire
8555 LR035755
TUBE - SCOP SENSOR
Secondary Compressor Outlet Pressure Sensor 		$37.56 1
