Console - Floor (Front, For Carrier Assy, Internal Components) (Standard Wheelbase)

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] - Console - Floor (Front, For Carrier Assy, Internal Components) (Standard Wheelbase)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.95 IN STOCK
AYP500110 SCREW $0.95 IN STOCK
Photo Part No Description Price (each) Stock
LR036723 SCREW - OVAL HEAD $2.57 To Order
Photo Part No Description Price (each) Stock
LR008793 SCREW $0.98 To Order
LR008793 SCREW $0.98 To Order
Photo Part No Description Price (each) Stock
LR065743 WASHER $35.55 To Order
Photo Part No Description Price (each) Stock
LR099850 MOULDING - FLOOR CONSOLE $46.67 To Order
Photo Part No Description Price (each) Stock
AZB000020 SEAL - FLOOR - BLANKING $1.10 To Order
LR077375 SEAL - SPECIAL $2.45 To Order
Photo Part No Description Price (each) Stock
LR099684 PANEL - CONSOLE $249.25 To Order
LR099684 PANEL - CONSOLE $249.25 To Order
Photo Part No Description Price (each) Stock
LR037621 CONSOLE - CENTRE FLOOR $638.44 To Order
LR037622 CONSOLE - CENTRE FLOOR $618.75 To Order
LR079155 CONSOLE - CENTRE FLOOR $601.73 To Order
...and 11 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR099847 MAT - CONSOLE STOWAGE $33.88 To Order
Photo Part No Description Price (each) Stock
LR039857 BRACKET - CONSOLE $136.90 To Order
LR039857 BRACKET - CONSOLE $136.90 To Order
Photo Part No Description Price (each) Stock
LR099682 BRACKET - CONSOLE $64.94 To Order
LR117604 BRACKET - CONSOLE $61.24 To Order
View All

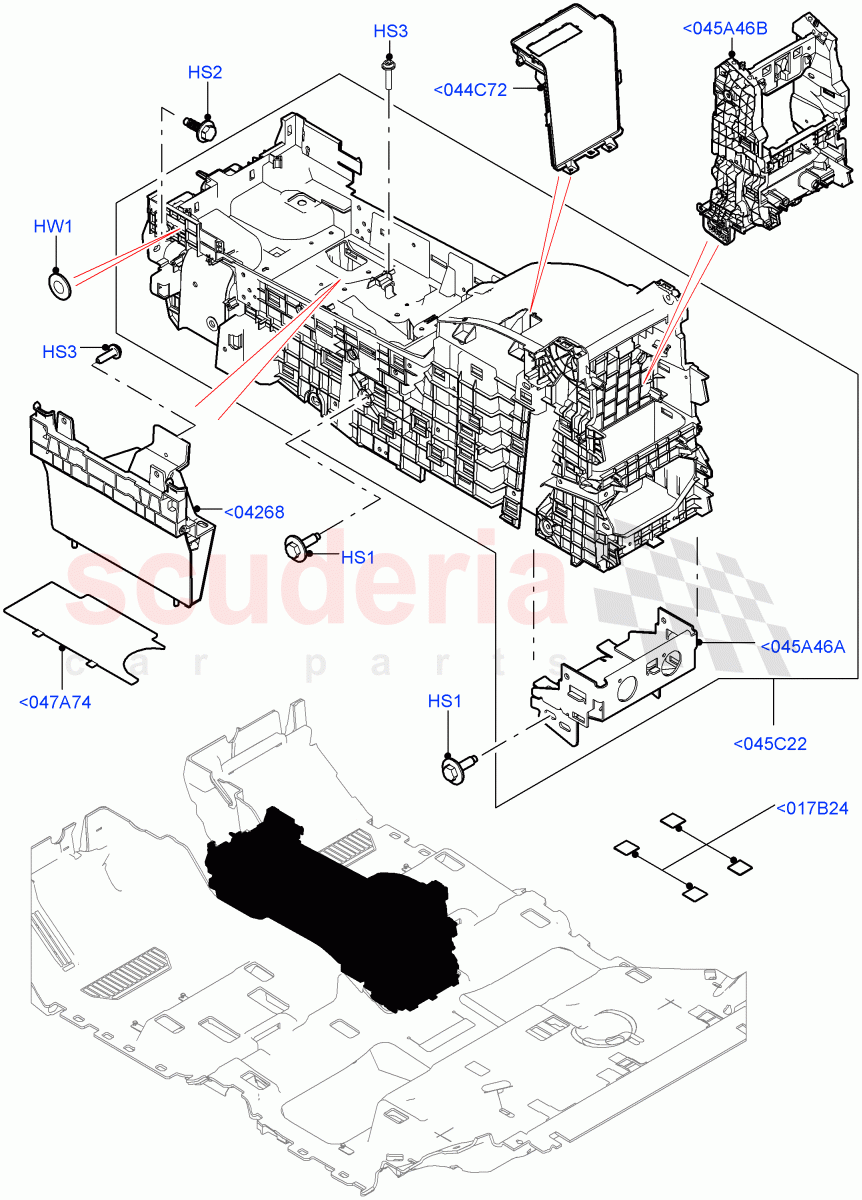

Console - Floor (Front, For Carrier Assy, Internal Components) (Standard Wheelbase) of Land Rover Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<017B24 AZB000020
SEAL - FLOOR - BLANKING
With 60/40 Manual Fold Thru Rr Seat / Blanking, Floor / To: MA436330 		$1.10 4
<017B24 LR077375
SEAL - SPECIAL
With 60/40 Power Fold Thru Rr Seat / Blanking, Floor / From: MA436331 		$2.45 4
<044C72 LR099684
PANEL - CONSOLE
Less Front Cooler Box / From: JA000001 / To: JA999999 		$249.25 1
<044C72 LR099684
PANEL - CONSOLE
Full Floor Console With Armrest / From: KA000001 		$249.25 1
<045A46A LR039857
BRACKET - CONSOLE
To: GA999999 		$136.90 1
<045A46A LR039857
BRACKET - CONSOLE
From: HA000001 		$136.90 1
<045A46B LR099682
BRACKET - CONSOLE
From: JA000001 / To: JA506611 		$64.94 1
<045A46B LR117604
BRACKET - CONSOLE
From: JA506612 		$61.24 1
<045C22 LR037621
CONSOLE - CENTRE FLOOR
With Front Cooler Box / To: FA231246 		$638.44 1
<045C22 LR037622
CONSOLE - CENTRE FLOOR
Less Front Cooler Box / To: FA231246 		$618.75 1
<045C22 LR079155
CONSOLE - CENTRE FLOOR
With Front Cooler Box / From: FA231247 / To: GA999999 		$601.73 1
<045C22 LR079156
CONSOLE - CENTRE FLOOR
Less Front Cooler Box / From: FA231247 / To: GA999999 		$579.24 1
<045C22 LR079155
CONSOLE - CENTRE FLOOR
With Front Cooler Box / From: HA000001 / To: HA999999 		$601.73 1
<045C22 LR079156
CONSOLE - CENTRE FLOOR
Less Front Cooler Box / From: HA000001 / To: HA999999 		$579.24 1
<045C22 LR099685
CONSOLE - CENTRE FLOOR
Integrated ROW 1 Fridge, Less Smokers Package / From: JA000001 / To: JA999999 		$528.01 1
<045C22 LR099686
CONSOLE - CENTRE FLOOR
Less Front Cooler Box, Less Smokers Package / From: JA000001 / To: JA999999 		$493.55 1
<045C22 LR101678
CONSOLE - CENTRE FLOOR
Less Front Cooler Box, With Smokers Package / From: JA000001 / To: JA999999 		$528.59 1
<045C22 LR099685
CONSOLE - CENTRE FLOOR
Console-W/Armrest + Fridge, Less Smokers Package / From: KA000001 		$528.01 1
<045C22 LR099686
CONSOLE - CENTRE FLOOR
Full Floor Console With Armrest, Less Smokers Package / From: KA000001 		$493.55 1
<045C22 LR101678
CONSOLE - CENTRE FLOOR
Full Floor Console With Armrest, Rows 1 & 2 Smokers Package / From: KA000001 		$528.59 1
<045C22 LR101677
CONSOLE - CENTRE FLOOR
Rows 1 & 2 Smokers Package, With Front Cooler Box / From: JA000001 / To: JA999999 		$493.55 1
<045C22 LR101677
CONSOLE - CENTRE FLOOR
Console-w/Armrest + Cooler Box, With Smokers Package / From: KA000001 		$493.55 1
<047A74 LR099847
MAT - CONSOLE STOWAGE
From: JA000001 		$33.88 1
<04268 LR099850
MOULDING - FLOOR CONSOLE
Divider / From: JA000001 		$46.67 1
HS1 AYP500110
SCREW
Bolt And Washer, Bracket To Floor, Hexagonal Head, M6 X 20MM
IN STOCK 		$0.95 4
HS1 AYP500110
SCREW
Bolt And Washer, Bracket To Console, Hexagonal Head, M6 X 20MM
IN STOCK 		$0.95 2
HS2 LR036723
SCREW - OVAL HEAD
6 X 1.42 X 16, Console, Front 		$2.57 2
HS3 LR008793
SCREW
Console, M5 X 16MM, Torx 		$0.98 10
HS3 LR008793
SCREW
Divider, M5 X 16MM, Torx / From: JA000001 		$0.98 5
HW1 LR065743
WASHER
Center Console / To: DA164549 		$35.55 1
