Timing Gear (Solihull Plant Build, Auxiliary Drive) (3.0L Dohc Gdi Sc V6 Petrol) ((V) Fromea000001)

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] - Timing Gear (Solihull Plant Build, Auxiliary Drive) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR011522 SCREW $2.89 IN STOCK
Photo Part No Description Price (each) Stock
LR010904 SCREW $1.24 To Order
Photo Part No Description Price (each) Stock
LR010696 WASHER - CRANKSHAFT SPROCKET $27.47 To Order
Photo Part No Description Price (each) Stock
LR041674 TENSIONER - DRIVE CHAIN $18.26 To Order
LR052911 TENSIONER - DRIVE CHAIN $27.59 To Order
Photo Part No Description Price (each) Stock
LR037021 SHAFT - FUEL PUMP DRIVE $631.89 To Order
LR067417 SHAFT - FUEL PUMP DRIVE $289.46 To Order
Photo Part No Description Price (each) Stock
LR032087 CHAIN - AUXILIARY DRIVE $52.42 IN STOCK
Photo Part No Description Price (each) Stock
LR010691 KEY - WOODRUFF $3.05 To Order
Photo Part No Description Price (each) Stock
LR072611 SPROCKET - CRANKSHAFT $56.11 To Order
LR072611 SPROCKET - CRANKSHAFT $56.11 To Order
Photo Part No Description Price (each) Stock
LR041774 JET - CHAIN LUBRICATING $78.05 To Order
Photo Part No Description Price (each) Stock
LR042667 JET - CHAIN LUBRICATING $27.26 To Order
LR059161 JET - CHAIN LUBRICATING $18.94 IN STOCK
View All

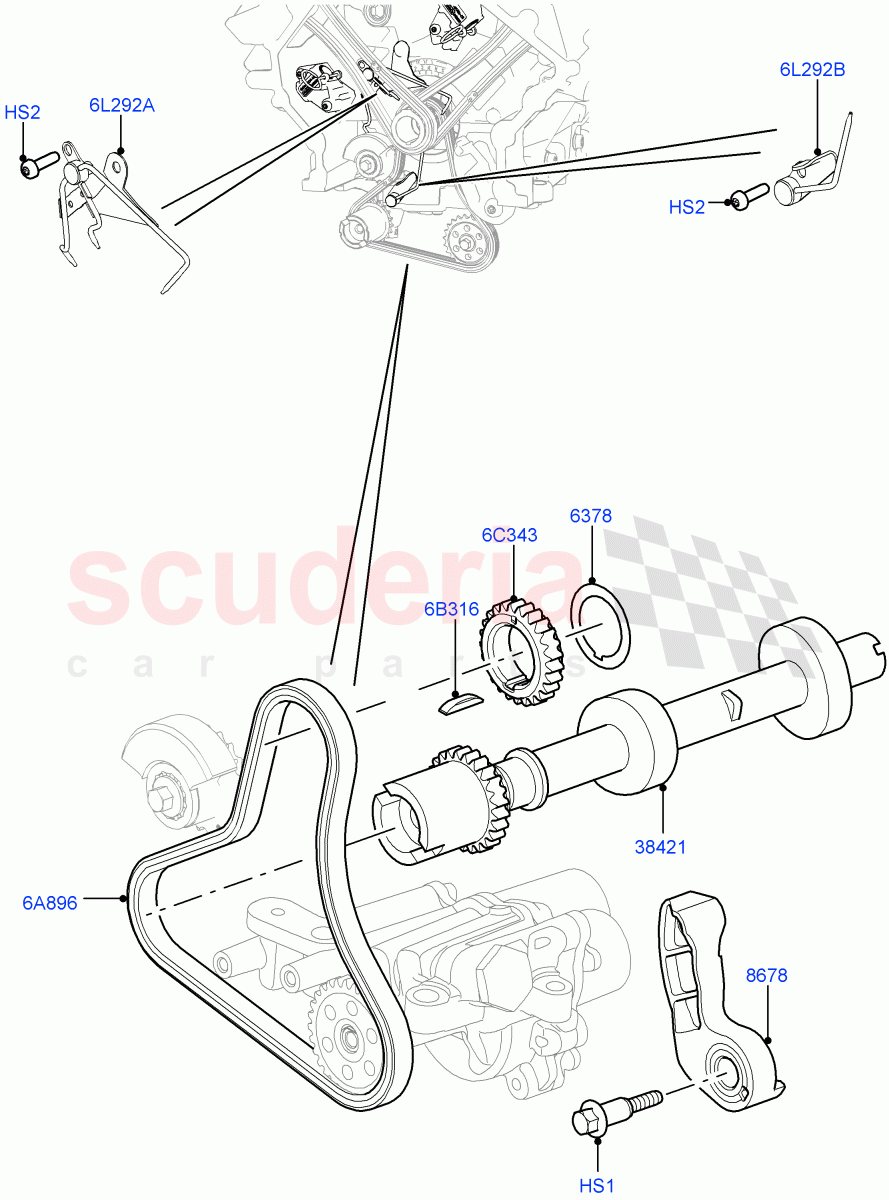

Timing Gear (Solihull Plant Build, Auxiliary Drive) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR011522
SCREW
Auxiliary Drive, M8 X 45MM, Tensioner / From: EA000001
IN STOCK 		$2.89 1
HS2 LR010904
SCREW
M6 X 20MM, Washer Nozzle / From: EA000001 		$1.24 2
6A896 LR032087
CHAIN - AUXILIARY DRIVE
From: EA000001
IN STOCK 		$52.42 1
6B316 LR010691
KEY - WOODRUFF
From: EA000001 		$3.05 1
6C343 LR072611
SPROCKET - CRANKSHAFT
Auxiliary Drive, Crankshaft / From: EA000001 / To: FA999999 		$56.11 1
6C343 LR072611
SPROCKET - CRANKSHAFT
Auxiliary Drive, Crankshaft / From: GA000001 		$56.11 1
6L292A LR041774
JET - CHAIN LUBRICATING
Chain Lubricating, Upper / From: EA000001 		$78.05 1
6L292B LR042667
JET - CHAIN LUBRICATING
Chain Lubricating, Lower / From: EA000001 / To: EA173150 		$27.26 1
6L292B LR059161
JET - CHAIN LUBRICATING
Chain Lubricating, Lower / From: EA173151
IN STOCK 		$18.94 1
6378 LR010696
WASHER - CRANKSHAFT SPROCKET
Crankshaft, Sprocket - Drive / From: EA000001 		$27.47 1
8678 LR041674
TENSIONER - DRIVE CHAIN
Auxiliary Drive Chain / From: EA000001 / To: EA125071 		$18.26 1
8678 LR052911
TENSIONER - DRIVE CHAIN
Auxiliary Drive Chain / From: EA125072 		$27.59 1
38421 LR037021
SHAFT - FUEL PUMP DRIVE
With Sprocket / From: EA000001 / To: FA197718 		$631.89 1
38421 LR067417
SHAFT - FUEL PUMP DRIVE
With Sprocket / From: FA197719 		$289.46 1
