Name: Starter Motor (3.0L DOHC GDI SC V6 PETROL, Starter - Stop/Start System) ((V) FROMEA000001, (V) TOHA999999)
Rating: 5.0 (1 reviews)

View All

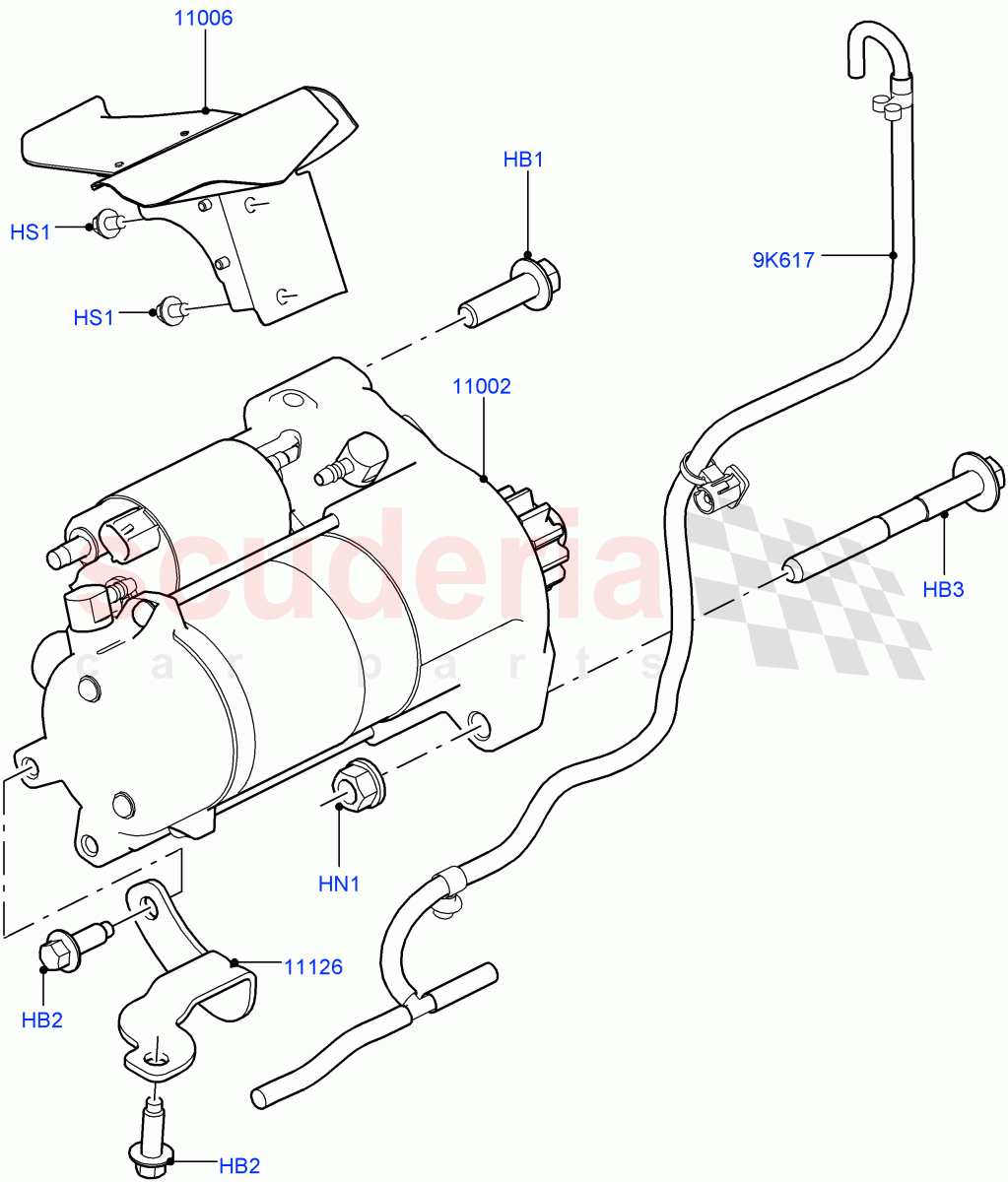

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS110356	SCREW	$0.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500230	BOLT - HEX.HEAD	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR050974	BOLT	$4.33	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500390	NUT AND WASHER - HEX.	$1.71	To Order

Photo	Part No	Description	Price (each)	Stock
	FS105082	SCREW	$0.52	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR042272	SHIELD - STARTER MOTOR HEAT	$17.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044972	BRACKET - STARTER MOTOR	$12.50	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS110356	SCREW IN STOCK	FS110356 SCREW Hexagonal Head, M10 x 35MM, Starter / From: EA000001 IN STOCK	$0.77	1
HB2	RYG500230	BOLT - HEX.HEAD IN STOCK	RYG500230 BOLT - HEX.HEAD Bracket, Hexagonal Head, M8 X 20MM / From: EA000001 IN STOCK	$1.43	3
HB3	LR050974	BOLT	LR050974 BOLT M10 x 98MM / From: EA000001	$4.33	1
HN1	RYH500390	NUT AND WASHER - HEX.	RYH500390 NUT AND WASHER - HEX. M10, Nut And Washer / From: EA000001	$1.71	1
HS1	FS105082	SCREW	FS105082 SCREW Heat Shield, M5 x 8MM / From: EA000001	$0.52	2
9K617	LR052682	Tube - Breather	LR052682 Tube - Breather Complete / From: EA000001 / To: EA137729	$54.85	1
9K617	LR056502	TUBE - BREATHER	LR056502 TUBE - BREATHER Complete / From: EA137730 / To: FA222998	$69.35	1
9K617	LR077370	TUBE - BREATHER	LR077370 TUBE - BREATHER Complete / From: FA222999	$57.36	1
11002	LR041976	STARTER MOTOR	LR041976 STARTER MOTOR From: EA000001 / To: EA178045	$715.39	1
11002	LR061893	STARTER MOTOR	LR061893 STARTER MOTOR From: FA000001 / To: GA280210	$762.08	1
11002	LR080307	STARTER MOTOR	LR080307 STARTER MOTOR From: EA178046 / To: EA999999	$715.39	1
11002	LR079918	STARTER MOTOR	LR079918 STARTER MOTOR From: GA280211	$840.08	1
11006	LR042272	SHIELD - STARTER MOTOR HEAT	LR042272 SHIELD - STARTER MOTOR HEAT From: EA000001	$17.22	1
11126	LR044972	BRACKET - STARTER MOTOR	LR044972 BRACKET - STARTER MOTOR Starter / From: EA000001	$12.50	1

Starter Motor (3.0L Dohc Gdi Sc V6 Petrol, Starter - Stop/Start System) ((V) Fromea000001, (V)...

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol]
