Name: Exhaust System (Rear Section) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001, (V) TOEA134600)
Rating: 4.5 (1 reviews)

View All

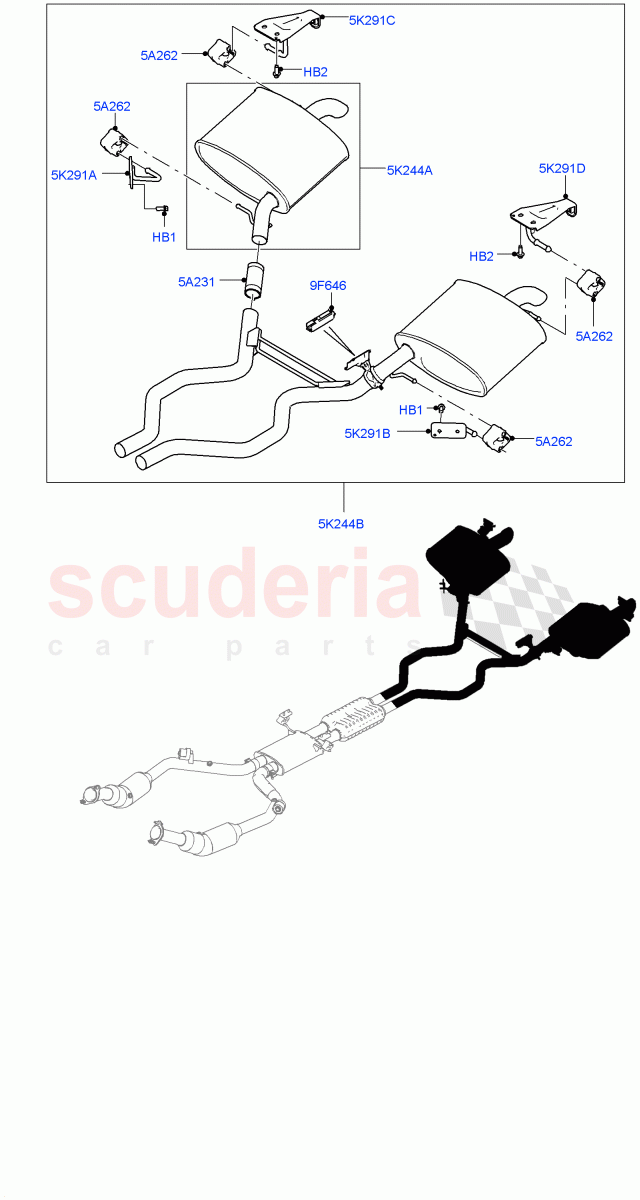

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500020	CLAMP - EXHAUST	$80.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025064	INSULATOR - RUBBER	$29.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049200	ACTUATOR - ELECTRONIC EXHAUST VALVE	$443.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051303	MUFFLER - REAR	$800.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051302	MUFFLER AND PIPE - REAR	$1,531.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035769	BRACKET - EXHAUST PIPE MOUNTING	$32.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035772	BRACKET - EXHAUST PIPE MOUNTING	$32.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035777	BRACKET - REAR MUFFLER	$41.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035781	BRACKET - REAR MUFFLER	$41.85	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: EA000001 IN STOCK	$2.29	4
HB2	RYG500440	BOLT	RYG500440 BOLT Hexagonal Head, M8 X 20MM / From: EA000001	$1.03	4
5A231	WCL500020	CLAMP - EXHAUST	WCL500020 CLAMP - EXHAUST 50MM, Muffler / From: EA000001	$80.07	1
5A262	LR025064	INSULATOR - RUBBER	LR025064 INSULATOR - RUBBER From: EA000001	$29.70	2
5K244A	LR051303	MUFFLER - REAR	LR051303 MUFFLER - REAR RH Rear / From: EA000001	$800.34	1
5K244B	LR051302	MUFFLER AND PIPE - REAR	LR051302 MUFFLER AND PIPE - REAR Assembly, Superseded To LR167013, Retailers Refer To TopiX Reference In Section 309: Exhaust System / From: EA000001	$1,531.14	1
5K291A	LR035769	BRACKET - EXHAUST PIPE MOUNTING	LR035769 BRACKET - EXHAUST PIPE MOUNTING Front RH, Muffler / From: EA000001	$32.90	1
5K291B	LR035772	BRACKET - EXHAUST PIPE MOUNTING	LR035772 BRACKET - EXHAUST PIPE MOUNTING LH Front, Muffler / From: EA000001	$32.90	1
5K291C	LR035777	BRACKET - REAR MUFFLER	LR035777 BRACKET - REAR MUFFLER Muffler, RH Rear / From: EA000001	$41.85	1
5K291D	LR035781	BRACKET - REAR MUFFLER	LR035781 BRACKET - REAR MUFFLER LH Rear, Muffler / From: EA000001	$41.85	1
9F646	LR049200	ACTUATOR - ELECTRONIC EXHAUST VALVE	LR049200 ACTUATOR - ELECTRONIC EXHAUST VALVE From: EA000001	$443.01	1

Exhaust System (Rear Section) (3.0L Dohc Gdi Sc V6 Petrol) ((V) Fromea000001, (V) Toea134600)

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol]
