Cylinder Head (Solihull Plant Build) (3.0L Dohc Gdi Sc V6 Petrol) ((V) Fromea000001)

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] - Cylinder Head (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR010903 BOLT $3.12 To Order
Photo Part No Description Price (each) Stock
LR000505 DOWEL $0.46 To Order
Photo Part No Description Price (each) Stock
LR011700 SCREW $1.39 IN STOCK
Photo Part No Description Price (each) Stock
LR010905 SCREW $1.15 IN STOCK
Photo Part No Description Price (each) Stock
LR011271 SCREW $1.23 IN STOCK
Photo Part No Description Price (each) Stock
LR041642 CYLINDER HEAD $3,263.01 To Order
LR041643 CYLINDER HEAD $3,263.01 To Order
LR054846 CYLINDER HEAD $2,232.57 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR041640 GASKET-CYLINDER HEAD $72.84 To Order
LR041641 GASKET-CYLINDER HEAD $65.71 To Order
LR105300 GASKET-CYLINDER HEAD $72.84 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR026143 BOLT - HEX.HEAD $6.40 To Order
Photo Part No Description Price (each) Stock
LR037205 TAPPET - VALVE $12.13 To Order
LR037211 TAPPET - VALVE $11.43 To Order
LR037229 TAPPET - VALVE $10.95 To Order
...and 47 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR041677 VALVE - EXHAUST $30.27 To Order
LR054852 VALVE - EXHAUST $27.97 To Order
Photo Part No Description Price (each) Stock
LR041678 VALVE - INLET $31.70 To Order
Photo Part No Description Price (each) Stock
LR038167 SPRING - VALVE $60.07 To Order
LR094042 SPRING - VALVE $2.88 To Order
Photo Part No Description Price (each) Stock
LR010702 RETAINER - VALVE SPRING $4.55 To Order
Photo Part No Description Price (each) Stock
LR008878 COLLET - VALVE SPRING RETAINER $1.37 IN STOCK
Photo Part No Description Price (each) Stock
LR038164 Seat - Spring Enquire To Order
LR054369 SEAT - SPRING $5.28 To Order
LR078819 SEAT - SPRING $5.24 To Order
Photo Part No Description Price (each) Stock
LR077674 VALVE - CHECK $9.62 To Order
Photo Part No Description Price (each) Stock
LR011996 TUBE - DRAIN $7.05 To Order
Photo Part No Description Price (each) Stock
LR008877 SENSOR - ENGINE KNOCK $112.07 To Order
View All

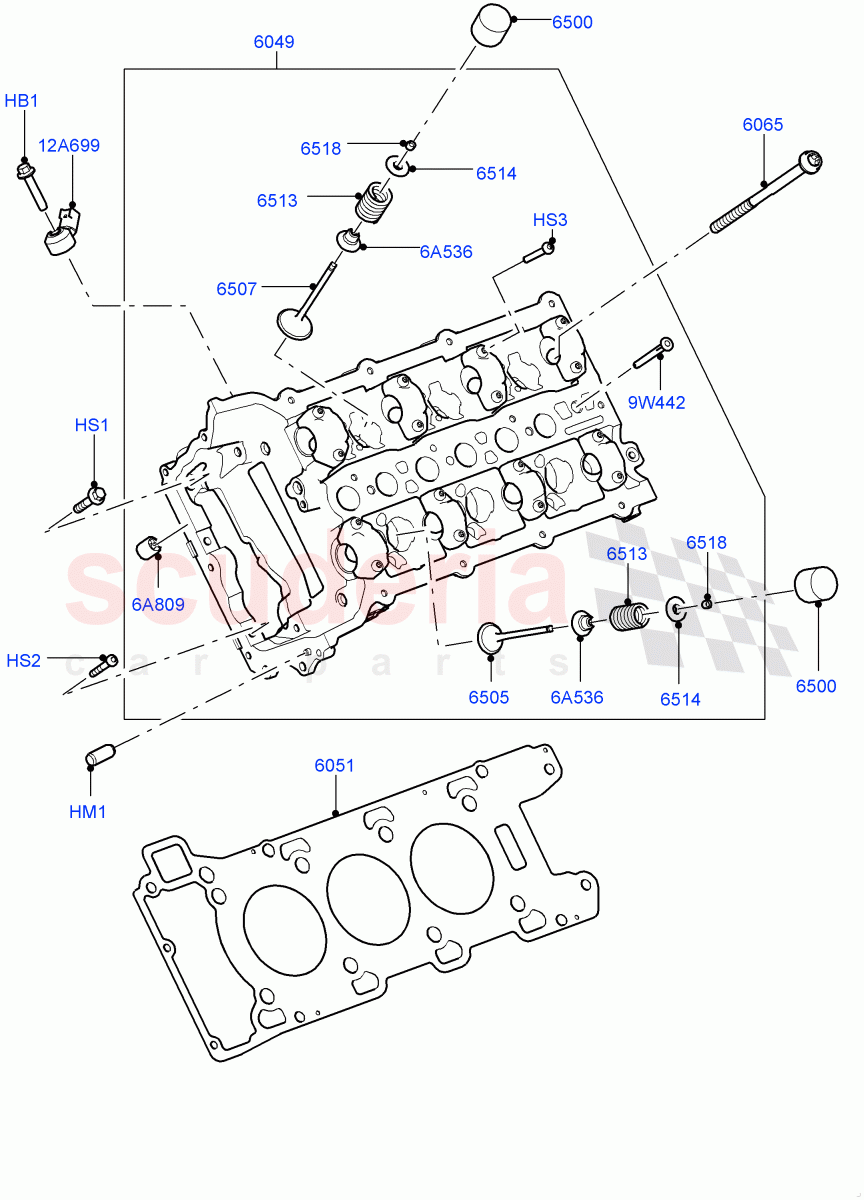

Cylinder Head (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR010903
BOLT
knock sensor, M8 x 40MM / From: EA000001 		$3.12 2
HM1 LR000505
DOWEL
6 x 14MM, Pin - Dowell / From: EA000001 		$0.46 4
HS1 LR011700
SCREW
M8 X 35MM / From: EA000001
IN STOCK 		$1.39 4
HS2 LR010905
SCREW
M6 x 35MM / From: EA000001
IN STOCK 		$1.15 4
HS3 LR011271
SCREW
M6 x 30MM / From: EA000001
IN STOCK 		$1.23 32
6A536 LR038164
Seat - Spring
From: EA000001 / To: EA127647 		- 24 Enquire
6A536 LR054369
SEAT - SPRING
From: EA127648 / To: GA251058 		$5.28 24
6A536 LR078819
SEAT - SPRING
From: GA251059 		$5.24 24
6A809 LR077674
VALVE - CHECK 		$9.62 1
9W442 LR011996
TUBE - DRAIN
Drain / From: EA000001 		$7.05 2
12A699 LR008877
SENSOR - ENGINE KNOCK
From: EA000001 		$112.07 2
6049 LR041642
CYLINDER HEAD
RH / From: EA000001 / To: EA143193 		$3,263.01 1
6049 LR041643
CYLINDER HEAD
LH / From: EA000001 / To: EA143193 		$3,263.01 1
6049 LR054846
CYLINDER HEAD
RH, New Part-Please Check For Reman Version / From: EA143194 / To: GA999999 		$2,232.57 1
6049 LR054847
CYLINDER HEAD
LH, New Part-Please Check For Reman Version / From: EA143194 / To: GA999999 		$2,277.25 1
6049 LR057357
Cylinder Head
RH, Remanufactured Part / From: EA143194 		- 1 Enquire
6049 LR057358
Cylinder Head
LH, Remanufactured Part / From: EA143194 		- 1 Enquire
6049 LR094041
CYLINDER HEAD
RH, New Part-Please Check For Reman Version / From: HA000001 		$2,497.51 1
6049 LR094040
CYLINDER HEAD
LH, New Part-Please Check For Reman Version / From: HA000001 		$2,665.28 1
6051 LR041640
GASKET-CYLINDER HEAD
RH / From: EA000001 / To: GA999999 		$72.84 1
6051 LR041641
GASKET-CYLINDER HEAD
LH / From: EA000001 / To: GA999999 		$65.71 1
6051 LR105300
GASKET-CYLINDER HEAD
RH / From: HA000001 		$72.84 1
6051 LR105301
GASKET-CYLINDER HEAD
LH / From: HA000001 		$72.84 1
6065 LR026143
BOLT - HEX.HEAD
M11 X 178 / From: EA000001 		$6.40 16
6500 LR037205
TAPPET - VALVE
2.950mm / From: EA000001 		$12.13 -
6500 LR037211
TAPPET - VALVE
2.965MM / From: EA000001 		$11.43 -
6500 LR037229
TAPPET - VALVE
2.98MM / From: EA000001 		$10.95 -
6500 LR037243
TAPPET - VALVE
2.995MM / From: EA000001 		$10.95 -
6500 LR037252
TAPPET - VALVE
3.010MM / From: EA000001 		$10.05 -
6500 LR037253
TAPPET - VALVE
3.025MM / From: EA000001 		$9.66 -
6500 LR037254
TAPPET - VALVE
3.040MM / From: EA000001 		$12.13 -
6500 LR037258
TAPPET - VALVE
3.055MM / From: EA000001 		$11.04 -
6500 LR037262
TAPPET - VALVE
3.070MM / From: EA000001 		$10.62 -
6500 LR037264
TAPPET - VALVE
3.085MM / From: EA000001 		$12.13 -
6500 LR037267
TAPPET - VALVE
3.100MM / From: EA000001 		$12.13 -
6500 LR037269
TAPPET - VALVE
3.115MM / From: EA000001 		$11.54 -
6500 LR037272
TAPPET - VALVE
3.130MM / From: EA000001 		$11.54 -
6500 LR037275
TAPPET - VALVE
3.145MM / From: EA000001 		$12.13 -
6500 LR037279
TAPPET - VALVE
3.160MM / From: EA000001 		$11.54 -
6500 LR037284
TAPPET - VALVE
3.175MM / From: EA000001 		$11.54 -
6500 LR037286
TAPPET - VALVE
3.190MM / From: EA000001 		$11.61 -
6500 LR037287
TAPPET - VALVE
3.205MM / From: EA000001 		$12.13 -
6500 LR037288
TAPPET - VALVE
3.220MM / From: EA000001 		$11.97 -
6500 LR037289
TAPPET - VALVE
3.235MM / From: EA000001 		$11.61 -
6500 LR037292
TAPPET - VALVE
3.250MM / From: EA000001 		$11.61 -
6500 LR037298
TAPPET - VALVE
3.265MM / From: EA000001 		$12.13 -
6500 LR037306
TAPPET - VALVE
3.280MM / From: EA000001 		$11.61 -
6500 LR037307
TAPPET - VALVE
3.295MM / From: EA000001 		$12.13 -
6500 LR037308
TAPPET - VALVE
3.310MM / From: EA000001
IN STOCK 		$12.13 -
6500 LR037309
TAPPET - VALVE
3.325MM / From: EA000001 		$12.13 -
6500 LR037310
TAPPET - VALVE
3.340MM / From: EA000001
IN STOCK 		$12.13 -
6500 LR037311
TAPPET - VALVE
3.355MM / From: EA000001
IN STOCK 		$11.61 -
6500 LR037312
TAPPET - VALVE
3.370MM / From: EA000001 		$11.97 -
6500 LR037313
TAPPET - VALVE
3.385MM / From: EA000001 		$12.13 -
6500 LR037314
TAPPET - VALVE
3.400MM / From: EA000001 		$12.13 -
6500 LR037315
TAPPET - VALVE
3.415MM / From: EA000001 		$12.13 -
6500 LR037316
TAPPET - VALVE
3.430MM / From: EA000001 		$11.97 -
6500 LR037317
TAPPET - VALVE
3.445MM / From: EA000001 		$12.13 -
6500 LR037318
TAPPET - VALVE
3.460MM / From: EA000001
IN STOCK 		$11.04 -
6500 LR037322
TAPPET - VALVE
3.475MM / From: EA000001
IN STOCK 		$12.13 -
6500 LR037328
TAPPET - VALVE
3.490MM / From: EA000001 		$12.13 -
6500 LR037329
TAPPET - VALVE
3.505MM / From: EA000001 		$11.61 -
6500 LR037330
TAPPET - VALVE
3.520MM / From: EA000001 		$11.97 -
6500 LR037331
TAPPET - VALVE
3.535MM / From: EA000001 		$11.04 -
6500 LR037332
TAPPET - VALVE
3.550MM / From: EA000001 		$11.54 -
6500 LR037333
TAPPET - VALVE
3.565MM / From: EA000001 		$12.13 -
6500 LR037334
TAPPET - VALVE
3.580MM / From: EA000001 		$11.61 -
6500 LR037335
TAPPET - VALVE
3.595MM / From: EA000001 		$11.54 -
6500 LR037336
TAPPET - VALVE
3.610MM / From: EA000001 		$12.18 -
6500 LR037343
TAPPET - VALVE
3.625MM / From: EA000001 		$12.13 -
6500 LR037344
TAPPET - VALVE
3.640MM / From: EA000001 		$11.90 -
6500 LR037345
TAPPET - VALVE
3.655MM / From: EA000001 		$12.13 -
6500 LR037346
TAPPET - VALVE
3.670MM / From: EA000001 		$11.04 -
6500 LR037347
TAPPET - VALVE
3.685MM / From: EA000001 		$12.13 -
6505 LR041677
VALVE - EXHAUST
From: EA000001 / To: EA143193 		$30.27 12
6505 LR054852
VALVE - EXHAUST
From: EA143194 		$27.97 12
6507 LR041678
VALVE - INLET
From: EA000001 		$31.70 12
6513 LR038167
SPRING - VALVE
From: EA000001 / To: GA314410 		$60.07 24
6513 LR094042
SPRING - VALVE
From: GA314411 		$2.88 24
6514 LR010702
RETAINER - VALVE SPRING
From: EA000001 		$4.55 24
6518 LR008878
COLLET - VALVE SPRING RETAINER
From: EA000001
IN STOCK 		$1.37 48
