Transfer Drive Components (Solihull Plant Build) (With 2 Spd Trans Case With Ctl Trac) ((V)...

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Transfer Drive Components (Solihull Plant Build) (With 2 Spd Trans Case With Ctl Trac) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR126162 BOLT - HEX.HEAD $3.85 To Order
Photo Part No Description Price (each) Stock
LR086041 SEAL - SPECIAL $19.26 To Order
Photo Part No Description Price (each) Stock
LR086042 SEAL - SPECIAL $23.80 To Order
Photo Part No Description Price (each) Stock
IYP500080 SCREW $2.76 To Order
Photo Part No Description Price (each) Stock
IYF500030 WASHER $1.04 To Order
Photo Part No Description Price (each) Stock
LR086473 UNIT - GROUNDING $113.44 To Order
LR086473 UNIT - GROUNDING $113.44 To Order
Photo Part No Description Price (each) Stock
LR082660 HEAT SHIELD - TRANSMISSION $21.52 To Order
Photo Part No Description Price (each) Stock
IYB500020 PLUG - OIL DRAIN $5.17 To Order
Photo Part No Description Price (each) Stock
IYX500050 KIT - GREASE AND ORING $25.32 To Order
Photo Part No Description Price (each) Stock
LR094511 DAMPER - VIBRATION $78.35 To Order
Photo Part No Description Price (each) Stock
LR087396 MODULE - TRANSFER BOX $480.94 To Order
LR117069 MODULE - TRANSFER BOX $550.99 To Order
Photo Part No Description Price (each) Stock
IGF500011 SOLENOID - ELECTRONIC PRESSURE CTL $187.97 To Order
Photo Part No Description Price (each) Stock
LR082661 HEAT SHIELD - TRANSFER CASE $29.81 To Order
Photo Part No Description Price (each) Stock
LR111510 SENSOR - TRIPMINDER $184.27 To Order
Photo Part No Description Price (each) Stock
LR101968 FLANGE - PROPSHAFT $395.94 To Order
Photo Part No Description Price (each) Stock
LR101969 KIT - FLANGE $484.27 To Order
View All

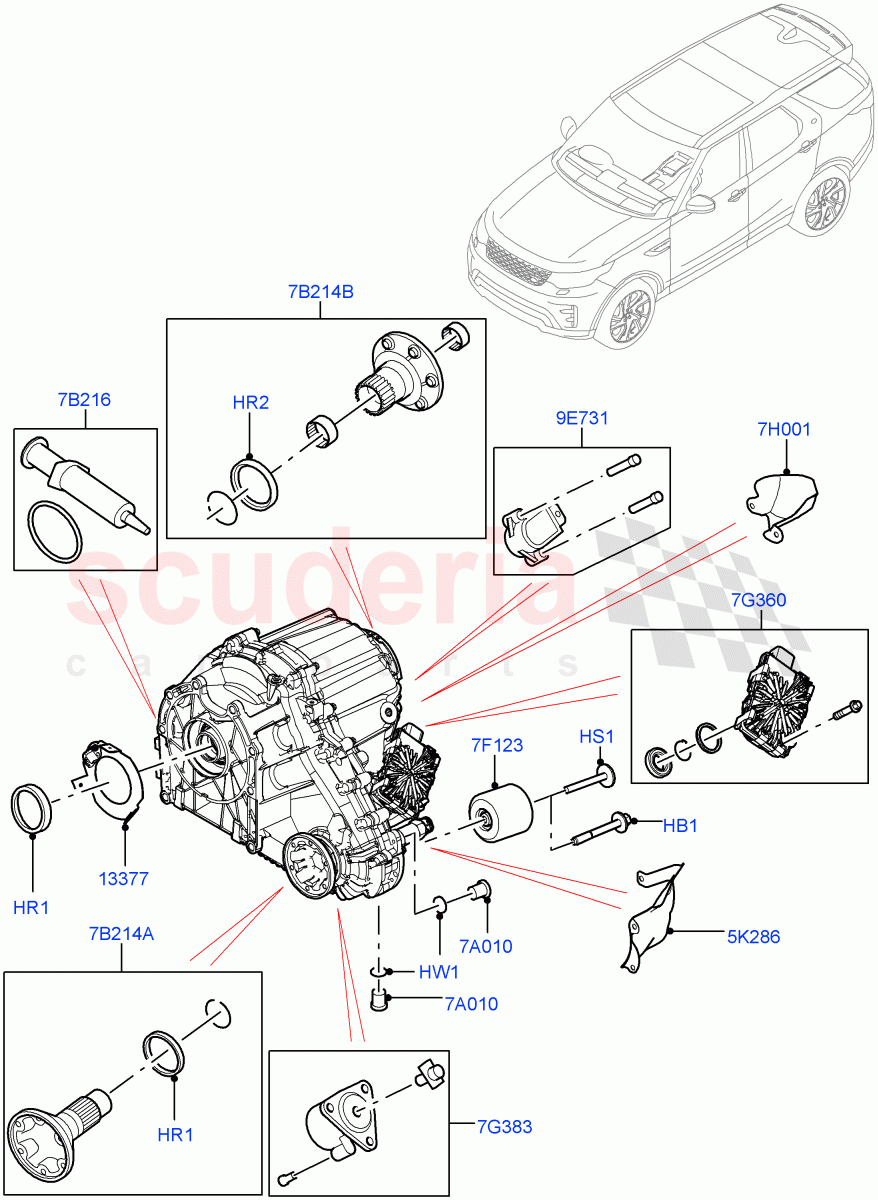

Transfer Drive Components (Solihull Plant Build) (With 2 Spd Trans Case With Ctl Trac) ((V) FROMHA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR126162
BOLT - HEX.HEAD
Bolt And Washer, M10 X 80MM / From: KA547260 		$3.85 1
HR1 LR086041
SEAL - SPECIAL
Seal / From: HA000001 		$19.26 1
HR2 LR086042
SEAL - SPECIAL
Seal, Oil - Rear Output Flange / From: HA000001 		$23.80 1
HS1 IYP500080
SCREW
Bolt And Washer, M10 X 80MM / From: HA000001 / To: KA547259 		$2.76 1
HW1 IYF500030
WASHER
M16, Plug - Oil Drain / From: HA000001 		$1.04 2
5K286 LR082660
HEAT SHIELD - TRANSMISSION
With 2 Spd Trans Case With Ctl Trac / From: HA000001 		$21.52 1
7A010 IYB500020
PLUG - OIL DRAIN
With 2 Spd Trans Case With Ctl Trac / Drain, FILLER, M16 / From: HA000001 		$5.17 2
7B214A LR101968
FLANGE - PROPSHAFT
With 2 Spd Trans Case With Ctl Trac / Front, Propshaft / From: HA000001 		$395.94 1
7B214B LR101969
KIT - FLANGE
With 2 Spd Trans Case With Ctl Trac / Propshaft, Rear / From: HA000001 		$484.27 1
7B216 IYX500050
KIT - GREASE AND ORING
From: HA000001 		$25.32 1
7F123 LR094511
DAMPER - VIBRATION
From: HA000001 		$78.35 1
7G360 LR087396
MODULE - TRANSFER BOX
From: HA000001 / To: JA399340 		$480.94 1
7G360 LR117069
MODULE - TRANSFER BOX
From: JA399341 		$550.99 1
7G383 IGF500011
SOLENOID - ELECTRONIC PRESSURE CTL
From: HA000001 		$187.97 1
7H001 LR082661
HEAT SHIELD - TRANSFER CASE
From: HA000001 		$29.81 1
9E731 LR111510
SENSOR - TRIPMINDER
High/Low Position Sensor / From: HA000001 		$184.27 1
13377 LR086473
UNIT - GROUNDING
3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD, With 2 Spd Trans Case With Ctl Trac / From: HA000001 		$113.44 1
13377 LR086473
UNIT - GROUNDING
2.0L AJ200P Hi PHEV / From: JA000001 		$113.44 1
