Back Door/Tailgate Trim Panels (Upper)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Back Door/Tailgate Trim Panels (Upper)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB106066 BOLT $0.67 IN STOCK
Photo Part No Description Price (each) Stock
LR006101 CLIP - TRIM $2.29 IN STOCK
LR006101 CLIP - TRIM $2.29 IN STOCK
Photo Part No Description Price (each) Stock
LR013135 CLIP - TRIM $1.77 IN STOCK
Photo Part No Description Price (each) Stock
LR038293 CLIP - CENTRE CONSOLE $1.11 To Order
Photo Part No Description Price (each) Stock
RZM500100 PIN - TRIM $3.78 To Order
Photo Part No Description Price (each) Stock
SGG000020 GROMMET - TRIM PANEL $1.06 To Order
Photo Part No Description Price (each) Stock
LR036745 COVER - TAILGATE HANDLE $23.15 To Order
LR036746 COVER - TAILGATE HANDLE $23.15 To Order
LR033657 COVER - TAILGATE HANDLE $10.95 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR036749 HANDLE - TAILGATE $23.15 To Order
LR036750 HANDLE - TAILGATE $23.15 To Order
LR033638 HANDLE - TAILGATE $10.57 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR086056 SEAL - COVER $0.68 IN STOCK
Photo Part No Description Price (each) Stock
LR036756 BRACKET - TAILGATE $5.33 To Order
LR036757 BRACKET - TAILGATE $5.20 To Order
LR036759 BRACKET - TAILGATE $5.33 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR036764 COVER - TAILGATE HINGE $22.19 To Order
LR036765 COVER - TAILGATE HINGE $22.19 To Order
LR036764 COVER - TAILGATE HINGE $22.19 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR043717 PIN - TRIM $0.46 To Order
Photo Part No Description Price (each) Stock
LR036753 PANEL - TAILGATE FINISH $373.87 To Order
LR036754 PANEL - TAILGATE FINISH $373.87 To Order
LR036755 PANEL - TAILGATE FINISH $373.87 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR034417 MOULDING - TAILGATE $426.35 To Order
LR034417 MOULDING - TAILGATE $426.35 To Order
LR034433 MOULDING - TAILGATE $96.34 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR036738 PANEL - TAILGATE TRIM $37.15 To Order
LR036738 PANEL - TAILGATE TRIM $37.15 To Order
Photo Part No Description Price (each) Stock
LR036737 PANEL - TAILGATE TRIM $39.13 To Order
LR036737 PANEL - TAILGATE TRIM $39.13 To Order
Photo Part No Description Price (each) Stock
LR036744 PANEL - TAILGATE TRIM $49.90 To Order
LR056775 PANEL - TAILGATE TRIM $50.68 To Order
LR056775 PANEL - TAILGATE TRIM $50.68 To Order
Photo Part No Description Price (each) Stock
LR038170 FINISHER - DRAIN CHANNEL $61.02 To Order
LR077620 FINISHER - DRAIN CHANNEL $61.02 To Order
Photo Part No Description Price (each) Stock
LR077621 FINISHER - DRAIN CHANNEL $61.02 To Order
LR077621 FINISHER - DRAIN CHANNEL $61.02 To Order
View All

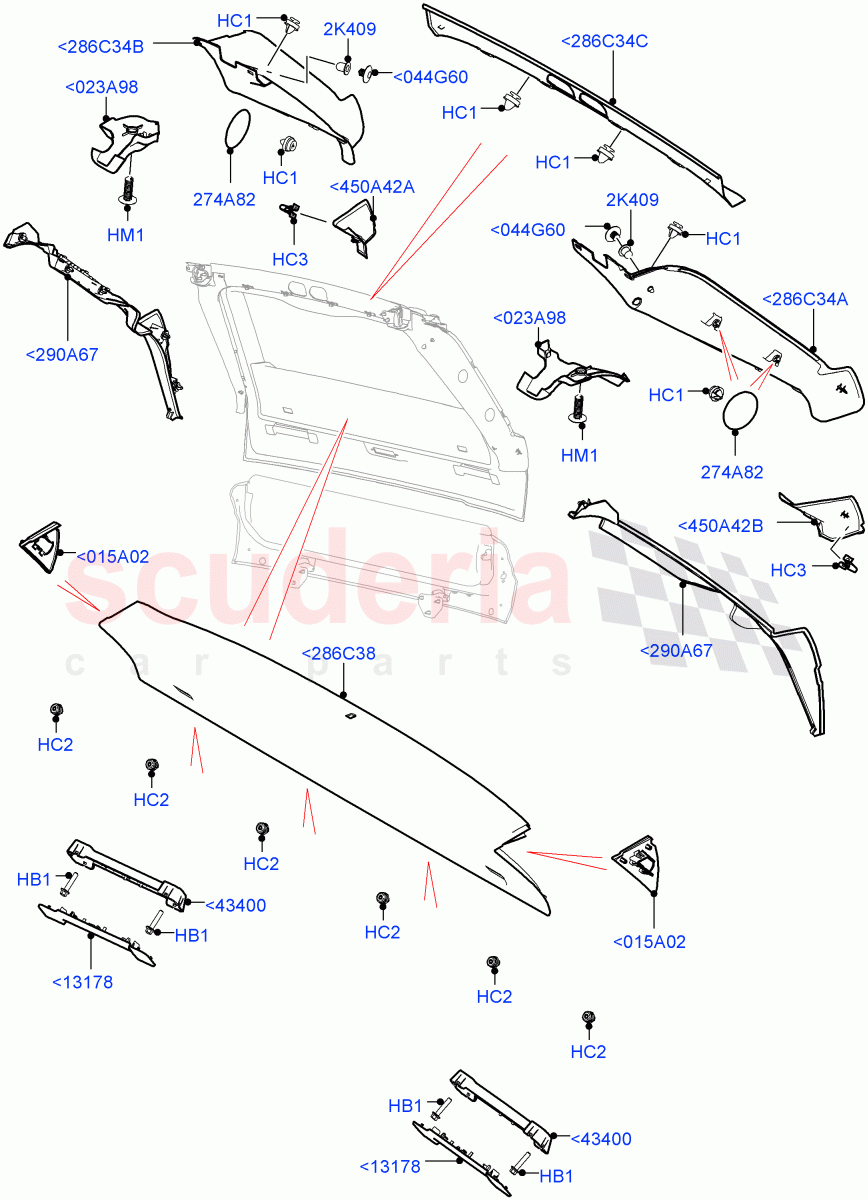

Back Door/Tailgate Trim Panels (Upper) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<015A02 LR036756
BRACKET - TAILGATE
Cirrus Headliner / RH / To: GA253552 		$5.33 1
<015A02 LR036757
BRACKET - TAILGATE
Ivory Headliner / RH / To: GA253552 		$5.20 1
<015A02 LR036759
BRACKET - TAILGATE
Ebony Headliner / RH / To: GA253552 		$5.33 1
<015A02 LR036760
BRACKET - TAILGATE
Cirrus Headliner / LH / To: GA253552 		$5.33 1
<015A02 LR036762
BRACKET - TAILGATE
Ivory Headliner / LH / To: GA253552 		$5.33 1
<015A02 LR036763
BRACKET - TAILGATE
Ebony Headliner / LH / To: GA253552 		$5.33 1
<015A02 LR078262
BRACKET - TAILGATE
Cirrus Headliner / RH / From: GA253553 		$18.18 1
<015A02 LR078265
BRACKET - TAILGATE
Ivory Headliner / RH / From: GA253553 		$77.52 1
<015A02 LR078266
BRACKET - TAILGATE
Ebony Headliner / RH / From: GA253553 		$18.71 1
<015A02 LR078267
BRACKET - TAILGATE
Cirrus Headliner / LH / From: GA253553 		$77.52 1
<015A02 LR078269
BRACKET - TAILGATE
Ivory Headliner / LH / From: GA253553 		$6.25 1
<015A02 LR078270
BRACKET - TAILGATE
Ebony Headliner / LH / From: GA253553 		$18.71 1
<023A98 LR036764
COVER - TAILGATE HINGE
RH / From: KA000001 		$22.19 1
<023A98 LR036765
COVER - TAILGATE HINGE
LH / From: KA000001 		$22.19 1
<023A98 LR036764
COVER - TAILGATE HINGE
RH / To: JA999999 		$22.19 1
<023A98 LR036765
COVER - TAILGATE HINGE
LH / To: JA999999 		$22.19 1
<044G60 LR043717
PIN - TRIM
8.2 - 7.8 x 2.5 - 10 Plastic, Panel - Tailgate Trim, RH And LH 		$0.46 2
<286C34A LR036738
PANEL - TAILGATE TRIM
LH / From: KA000001 		$37.15 1
<286C34A LR036738
PANEL - TAILGATE TRIM
LH / To: JA999999 		$37.15 1
<286C34B LR036737
PANEL - TAILGATE TRIM
RH / From: KA000001 		$39.13 1
<286C34B LR036737
PANEL - TAILGATE TRIM
RH / To: JA999999 		$39.13 1
<286C34C LR036744
PANEL - TAILGATE TRIM
Centre / To: EA142009 		$49.90 1
<286C34C LR056775
PANEL - TAILGATE TRIM
Centre / From: KA000001 		$50.68 1
<286C34C LR056775
PANEL - TAILGATE TRIM
Centre / From: EA142010 / To: JA999999 		$50.68 1
<286C38 LR036753
PANEL - TAILGATE FINISH
Cirrus Headliner / From: KA000001 		$373.87 1
<286C38 LR036754
PANEL - TAILGATE FINISH
Ivory Headliner / From: KA000001 		$373.87 1
<286C38 LR036755
PANEL - TAILGATE FINISH
Ebony Headliner / From: KA000001 		$373.87 1
<286C38 LR036753
PANEL - TAILGATE FINISH
Cirrus Headliner / To: JA999999 		$373.87 1
<286C38 LR036755
PANEL - TAILGATE FINISH
Ebony Headliner / To: JA999999 		$373.87 1
<286C38 LR036754
PANEL - TAILGATE FINISH
Ivory Headliner / To: JA999999 		$373.87 1
<290A67 LR034417
MOULDING - TAILGATE
Tailgate - Hands Free / RH, Contains Anti Trap Sensor / From: KA000001 / To: LA404091 		$426.35 1
<290A67 LR034417
MOULDING - TAILGATE
Tailgate - Power / RH, Contains Anti Trap Sensor / To: JA999999 		$426.35 1
<290A67 LR034433
MOULDING - TAILGATE
Tailgate - Manual / RH / To: LA402911 		$96.34 1
<290A67 LR034419
MOULDING - TAILGATE
Tailgate - Hands Free / LH, Contains Anti Trap Sensor / From: KA000001 / To: LA404091 		$426.35 1
<290A67 LR034419
MOULDING - TAILGATE
Tailgate - Power / LH, Contains Anti Trap Sensor / To: JA999999 		$426.35 1
<290A67 LR034435
MOULDING - TAILGATE
Tailgate - Manual / LH / To: LA402911 		$96.34 1
<290A67 LR139419
MOULDING - TAILGATE
Tailgate - Hands Free / RH, Contains Anti Trap Sensor / From: LA404092 		$426.35 1
<290A67 LR139427
MOULDING - TAILGATE
Tailgate - Hands Free / LH, Contains Anti Trap Sensor / From: LA404092 		$426.35 1
<290A67 LR139420
MOULDING - TAILGATE
Tailgate - Manual / RH / From: LA402912 		$89.19 1
<290A67 LR139426
MOULDING - TAILGATE
Tailgate - Manual / LH / From: LA402912 		$96.34 1
<450A42A LR038170
FINISHER - DRAIN CHANNEL
RH / To: FA215756 		$61.02 1
<450A42A LR077620
FINISHER - DRAIN CHANNEL
RH / From: FA215757 		$61.02 1
<450A42B LR077621
FINISHER - DRAIN CHANNEL
LH / To: FA215756 		$61.02 1
<450A42B LR077621
FINISHER - DRAIN CHANNEL
LH / From: FA215757 		$61.02 1
<13178 LR036745
COVER - TAILGATE HANDLE
Cirrus Headliner / Handle / To: FA229114 		$23.15 2
<13178 LR036746
COVER - TAILGATE HANDLE
Ivory Headliner / Handle / To: FA229114 		$23.15 2
<13178 LR033657
COVER - TAILGATE HANDLE
Ebony Headliner / Handle / To: FA229114 		$10.95 2
<13178 LR077197
COVER - TAILGATE HANDLE
Cirrus Headliner / Handle / From: FA229115 		$145.63 2
<13178 LR077190
COVER - TAILGATE HANDLE
Ivory Headliner / Handle / From: FA229115 		$145.63 2
<13178 LR075113
COVER - TAILGATE HANDLE
Ebony Headliner / Handle / From: FA229115 		$55.55 2
<43400 LR036749
HANDLE - TAILGATE
Cirrus Headliner / For Tailgate / To: FA229114 		$23.15 2
<43400 LR036750
HANDLE - TAILGATE
Ivory Headliner / For Tailgate / To: FA229114 		$23.15 2
<43400 LR033638
HANDLE - TAILGATE
Ebony Headliner / For Tailgate / To: FA229114 		$10.57 2
<43400 LR077203
HANDLE - TAILGATE
Cirrus Headliner / For Tailgate / From: FA229115 		$143.95 2
<43400 LR077202
HANDLE - TAILGATE
Ivory Headliner / For Tailgate / From: FA229115 		$143.95 2
<43400 LR075109
HANDLE - TAILGATE
Ebony Headliner / For Tailgate / From: FA229115 		$52.99 2
HB1 FB106066
BOLT
Handle, M6 x 30MM, Mounted To Tailgate
IN STOCK 		$0.67 4
HC1 LR006101
CLIP - TRIM
8.2 X 0.7-1.5, Panel - Tailgate Trim, RH And LH
IN STOCK 		$2.29 6
HC1 LR006101
CLIP - TRIM
8.2 X 0.7-1.5, Centre, Panel - Tailgate Trim
IN STOCK 		$2.29 2
HC2 LR013135
CLIP - TRIM
8.5 X 0.8 - 2.2, Panel - Tailgate Finisher
IN STOCK 		$1.77 6
HC3 LR038293
CLIP - CENTRE CONSOLE
1.35 X 6 X 22 X 0.7 - 1.2 		$1.11 2
HM1 RZM500100
PIN - TRIM
7.15 X 1.5 - 25 Plastic, Hinge Cover 		$3.78 2
2K409 SGG000020
GROMMET - TRIM PANEL
Panel - Tailgate Trim 		$1.06 2
274A82 LR086056
SEAL - COVER
50MM,
IN STOCK 		$0.68 4
