Transmission External Components (Solihull Plant Build) (8 Speed Auto Trans Zf 8Hp45) ((V)...

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Transmission External Components (Solihull Plant Build) (8 Speed Auto Trans ZF 8HP45) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR042472 SCREW $0.98 To Order
Photo Part No Description Price (each) Stock
KYP500260 SCREW $0.77 IN STOCK
Photo Part No Description Price (each) Stock
LR023293 SEAL - TRANSMISSION $7.22 To Order
Photo Part No Description Price (each) Stock
LR065238 PAN - TRANSMISSION OIL $392.18 To Order
Photo Part No Description Price (each) Stock
LR038249 SHIELD - TRANSMISSION $53.22 To Order
LR056259 SHIELD - TRANSMISSION $171.73 To Order
Photo Part No Description Price (each) Stock
LR057208 BRACKET - TRANSMISSION HEAT SHIELD $52.79 To Order
LR073535 BRACKET - TRANSMISSION HEAT SHIELD $177.04 To Order
LR073535 BRACKET - TRANSMISSION HEAT SHIELD $177.04 To Order
Photo Part No Description Price (each) Stock
LR008866 GROMMET $8.52 IN STOCK
Photo Part No Description Price (each) Stock
LR065237 PLUG $46.92 To Order
Photo Part No Description Price (each) Stock
LR123853 PLUG - TRANSMISSION $40.60 To Order
View All

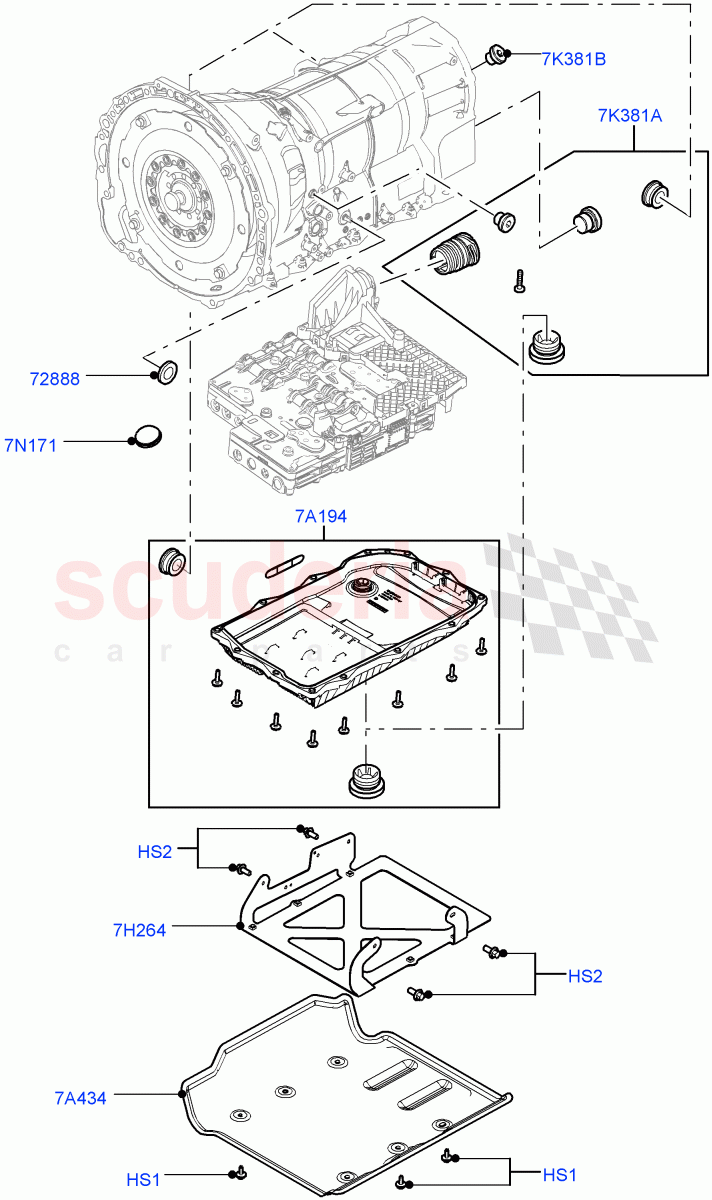

Transmission External Components (Solihull Plant Build) (8 Speed Auto Trans ZF 8HP45) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR042472
SCREW
Hexagonal Head, M6 X 16MM 		$0.98 6
HS2 KYP500260
SCREW
M6 X 14MM
IN STOCK 		$0.77 4
7A194 LR065238
PAN - TRANSMISSION OIL
Includes Oil Filter, Includes Sealing Gasket 		$392.18 1
7A434 LR038249
SHIELD - TRANSMISSION
To: EA141942 		$53.22 1
7A434 LR056259
SHIELD - TRANSMISSION
From: EA141943 		$171.73 1
7H264 LR057208
BRACKET - TRANSMISSION HEAT SHIELD
Retailers Are Advised To Read LTB01091v4 Prior To Ordering, Please Note LTB01091v4 Is Not Applicable To L319 / To: EA141941 		$52.79 1
7H264 LR073535
BRACKET - TRANSMISSION HEAT SHIELD
Retailers Are Advised To Read LTB01091v4 Prior To Ordering, Please Note LTB01091v4 Is Not Applicable To L319 / From: FA227021 		$177.04 1
7H264 LR073535
BRACKET - TRANSMISSION HEAT SHIELD
Retailers Are Advised To Read LTB01091v4 Prior To Ordering, Please Note LTB01091v4 Is Not Applicable To L319 / From: EA141942 / To: FA227020 		$177.04 1
7K381A LR065237
PLUG
Transmission 		$46.92 1
7K381B LR123853
PLUG - TRANSMISSION
Aluminium, Transmission / From: HA000001 		$40.60 1
7N171 LR008866
GROMMET
Converter Drain Access
IN STOCK 		$8.52 1
72888 LR023293
SEAL - TRANSMISSION 		$7.22 1
