Auto Trans Assy & Speedometer Drive (3.0L Aj20D6 Diesel High, 8 Speed Auto Trans Zf 8Hp76) ((V)...

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Auto Trans Assy & Speedometer Drive (3.0L AJ20D6 Diesel High, 8 Speed Auto Trans ZF 8HP76) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB110156 BOLT - HEX.HEAD $2.68 IN STOCK
Photo Part No Description Price (each) Stock
LR148891 CLIP $3.30 To Order
Photo Part No Description Price (each) Stock
LR078426 FASTENER - COVER $1.45 To Order
Photo Part No Description Price (each) Stock
LR005541 RIVET - PLASTIC $0.82 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR017279 STUD $2.20 To Order
Photo Part No Description Price (each) Stock
LR125283 AUTOMATIC TRANSMISSION $12,165.04 To Order
Photo Part No Description Price (each) Stock
LR135017 HEAT SHIELD - TRANSMISSION $25.19 To Order
Photo Part No Description Price (each) Stock
LR123854 GROMMET - CONVERTER ACCESS $7.35 To Order
Photo Part No Description Price (each) Stock
LR125278 TUBE - TRANSMISSION VENTILATION $115.95 To Order
Photo Part No Description Price (each) Stock
LR125279 TUBE - TRANSMISSION VENTILATION $75.97 To Order
Photo Part No Description Price (each) Stock
LR125280 INSULATOR - TRANSMISSION $182.75 To Order
Photo Part No Description Price (each) Stock
LR125281 INSULATOR - TRANSMISSION $182.75 To Order
View All

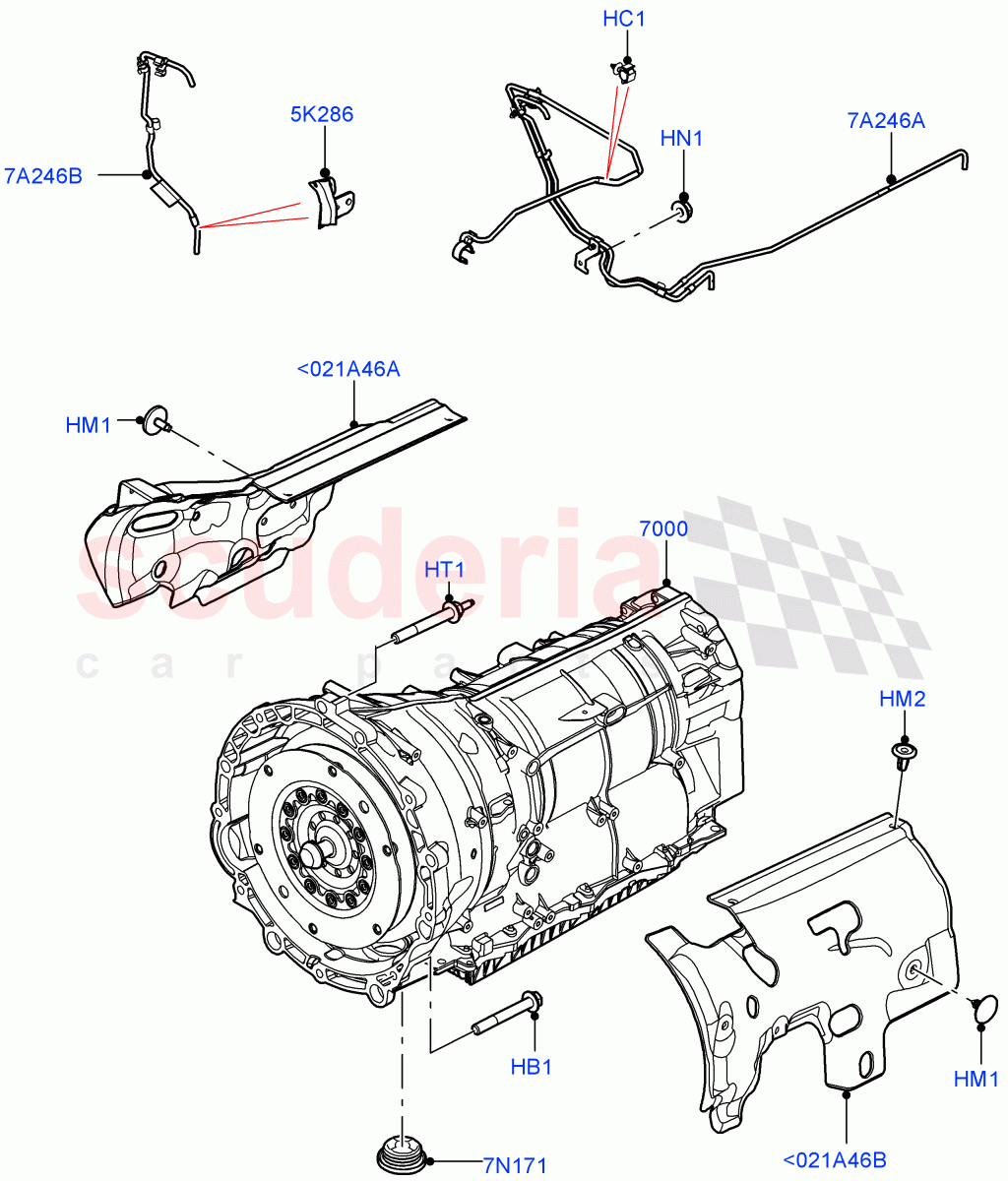

Auto Trans Assy & Speedometer Drive (3.0L AJ20D6 Diesel High, 8 Speed Auto Trans ZF 8HP76) ((V) FROMLA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<021A46A LR125280
INSULATOR - TRANSMISSION
Thermal Encapsulation Covers / RH / From: LA000001 		$182.75 1
<021A46B LR125281
INSULATOR - TRANSMISSION
Thermal Encapsulation Covers / LH / From: LA000001 		$182.75 1
HB1 FB110156
BOLT - HEX.HEAD
Hexagonal Head, M10 x 75MM, Transmission To Engine / From: LA000001
IN STOCK 		$2.68 2
HC1 LR148891
CLIP
Breather Pipe / From: LA000001 		$3.30 1
HM1 LR078426
FASTENER - COVER
Thermal Encapsulation Covers / 4.75 x 0.76 - 7.9 / From: LA000001 		$1.45 7
HM2 LR005541
RIVET - PLASTIC
Thermal Encapsulation Covers / Rivet Push Pin 7 X 3-4.5 / From: LA000001
IN STOCK 		$0.82 2
HN1 FN106046
NUT - HEX.
Breather, Hexagonal Head, M6 / From: LA000001
IN STOCK 		$1.46 1
HT1 LR017279
STUD
M10 x 75MM, M6 X 16MM, Transmission To Engine / From: LA000001 		$2.20 6
5K286 LR135017
HEAT SHIELD - TRANSMISSION
Breather Pipe / From: LA000001 		$25.19 1
7A246A LR125278
TUBE - TRANSMISSION VENTILATION
Assembly, Includes Bracket / From: LA000001 		$115.95 1
7A246B LR125279
TUBE - TRANSMISSION VENTILATION
Bell Housing / From: LA000001 		$75.97 1
7N171 LR123854
GROMMET - CONVERTER ACCESS
Converter Drain Access / From: LA000001 		$7.35 1
7000 LR125283
AUTOMATIC TRANSMISSION
Includes Converter / From: LA000001 		$12,165.04 1
