Timing Gear (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Timing Gear (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR123057 BOLT $2.52 IN STOCK
Photo Part No Description Price (each) Stock
110123456 BOLT $33.34 To Order
LR135872 BOLT $35.87 To Order
Photo Part No Description Price (each) Stock
LR148214 O-RING $6.49 IN STOCK
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.59 IN STOCK
Photo Part No Description Price (each) Stock
LR092106 SCREW $0.98 To Order
Photo Part No Description Price (each) Stock
LR073648 SCREW $2.65 IN STOCK
Photo Part No Description Price (each) Stock
LR121816 SPROCKET - CAMSHAFT $130.30 To Order
Photo Part No Description Price (each) Stock
LR121815 SPROCKET - CAMSHAFT $136.24 To Order
Photo Part No Description Price (each) Stock
LR121793 CHAIN - TIMING $141.89 To Order
Photo Part No Description Price (each) Stock
LR121792 CHAIN - TIMING $140.89 To Order
Photo Part No Description Price (each) Stock
LR121800 TENSIONER - TIMING CHAIN $145.81 IN STOCK
Photo Part No Description Price (each) Stock
LR121799 TENSIONER - TIMING CHAIN $163.50 IN STOCK
Photo Part No Description Price (each) Stock
LR121807 IDLER - DRIVE CHAIN $66.35 IN STOCK
Photo Part No Description Price (each) Stock
LR121741 SOLENOID - ENGINE VARIABLE TIMING $63.45 To Order
LR162954 SOLENOID - ENGINE VARIABLE TIMING $84.90 To Order
LR163188 SOLENOID - ENGINE VARIABLE TIMING $80.12 To Order
Photo Part No Description Price (each) Stock
LR121805 ARM - TIMING CHAIN TENSIONER $46.16 IN STOCK
Photo Part No Description Price (each) Stock
LR121803 GUIDE - TIMING CHAIN $44.67 IN STOCK
Photo Part No Description Price (each) Stock
LR121801 GUIDE - TIMING CHAIN $35.67 IN STOCK
Photo Part No Description Price (each) Stock
LR121804 ARM - TIMING CHAIN TENSIONER $43.04 IN STOCK
Photo Part No Description Price (each) Stock
LR121802 GUIDE - TIMING CHAIN $54.80 IN STOCK
Photo Part No Description Price (each) Stock
LR121385 JET - CHAIN LUBRICATING $18.45 To Order
Photo Part No Description Price (each) Stock
LR121387 JET - CHAIN LUBRICATING $22.02 To Order
View All

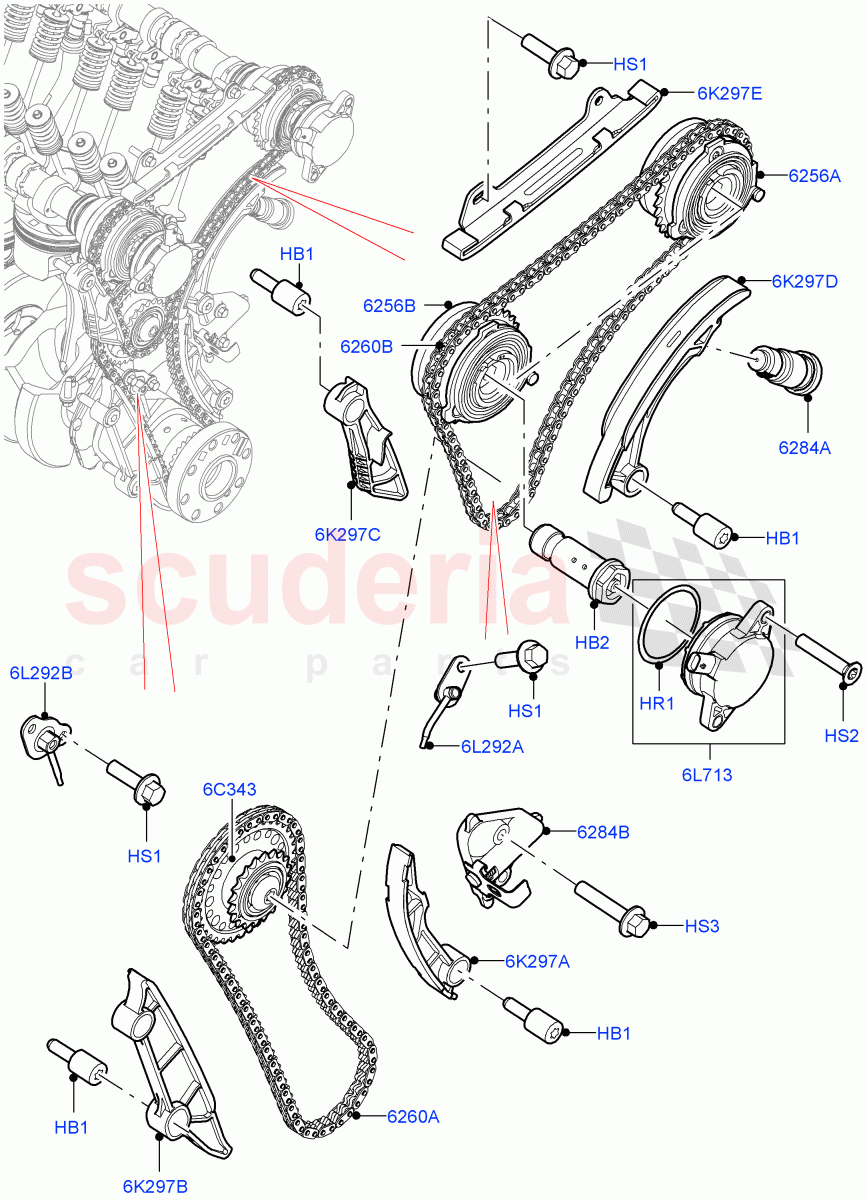

Timing Gear (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR123057
BOLT
Chain Guide, M8 X 23MM / From: KA000001
IN STOCK 		$2.52 5
HB2 110123456
BOLT
Solenoid - Engine Variable Timing / From: KA000001 / To: LA575687 		$33.34 2
HB2 LR135872
BOLT
Solenoid - Engine Variable Timing / From: LA575688 		$35.87 2
HR1 LR148214
O-RING
Solenoid - Engine Variable Timing / From: KA000001
IN STOCK 		$6.49 1
HS1 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: KA000001
IN STOCK 		$1.59 5
HS2 LR092106
SCREW
M6 x 25MM / From: KA000001 		$0.98 4
HS3 LR073648
SCREW
Hexagonal Head, M6 x 30MM, Tensioner / From: KA000001
IN STOCK 		$2.65 2
6C343 LR121807
IDLER - DRIVE CHAIN
Intermediate / From: KA000001
IN STOCK 		$66.35 1
6K297A LR121805
ARM - TIMING CHAIN TENSIONER
RH, Primary / From: KA000001
IN STOCK 		$46.16 1
6K297B LR121803
GUIDE - TIMING CHAIN
LH, Primary / From: KA000001
IN STOCK 		$44.67 1
6K297C LR121801
GUIDE - TIMING CHAIN
LH, Secondary / From: KA000001
IN STOCK 		$35.67 1
6K297D LR121804
ARM - TIMING CHAIN TENSIONER
RH, Secondary / From: KA000001
IN STOCK 		$43.04 1
6K297E LR121802
GUIDE - TIMING CHAIN
Secondary, Upper / From: KA000001
IN STOCK 		$54.80 1
6L292A LR121385
JET - CHAIN LUBRICATING
Upper / From: KA000001 		$18.45 1
6L292B LR121387
JET - CHAIN LUBRICATING
Lower / From: KA000001 		$22.02 1
6L713 LR121741
SOLENOID - ENGINE VARIABLE TIMING
From: KA000001 / To: MA455674 		$63.45 2
6L713 LR162954
SOLENOID - ENGINE VARIABLE TIMING
From: MA455675 / To: MA456533 		$84.90 2
6L713 LR163188
SOLENOID - ENGINE VARIABLE TIMING
From: MA456534 		$80.12 2
6256A LR121816
SPROCKET - CAMSHAFT
Exhaust, Variable Valve Timing Unit / From: KA000001 		$130.30 1
6256B LR121815
SPROCKET - CAMSHAFT
Inlet, Variable Valve Timing Unit / From: KA000001 		$136.24 1
6260A LR121793
CHAIN - TIMING
Lower, Primary / From: KA000001 		$141.89 1
6260B LR121792
CHAIN - TIMING
Secondary, Upper / From: KA000001 		$140.89 1
6284A LR121800
TENSIONER - TIMING CHAIN
Secondary / From: KA000001
IN STOCK 		$145.81 1
6284B LR121799
TENSIONER - TIMING CHAIN
Primary / From: KA000001
IN STOCK 		$163.50 1
